Commercial Meter Sockets

Single Position

200 Ampere | 7 Jaw | HQ Bypass With Jaw Clamping | Ringless Style | 600 VAC

Units rated 200 ampere continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
NEMA 3R enclosures.
*T-H72 3V has a large hub opening ith a hub reducer plate and 2-1/2” hub.
For Meter Socket options see replacement parts & accessory pages.

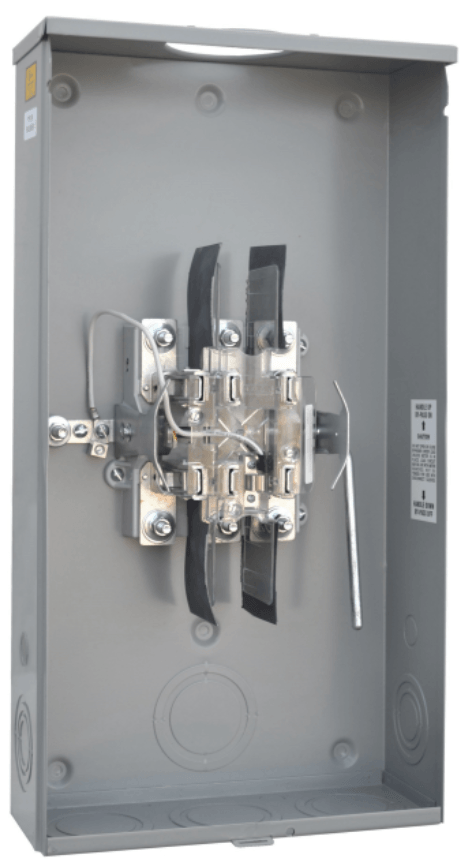

UT-H7210T
Button

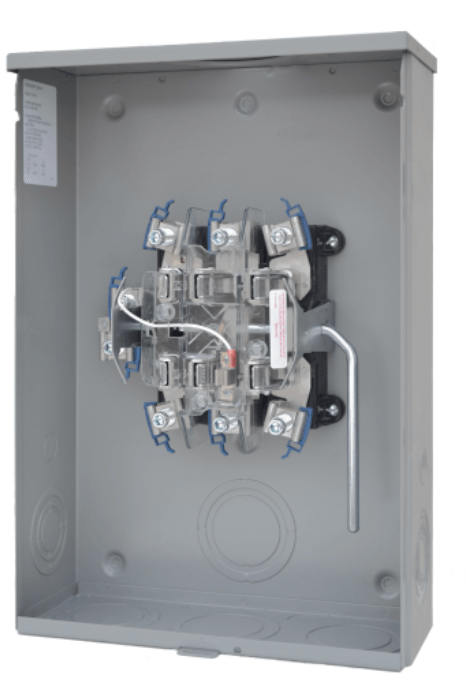

T-H7213T
Button

Catalog Number	Amps	Service	Hub	# Jaws	Wire CU-AL Line	Wire CU-AL Load	Dimension H"	Dimension W"	Dimension D"
T-H7203B	200	Overhead	Hub Opening	7	#6-350	#6-350	19	10-1/2	4-15/16
T-H7203N	200	Overhead	2" Hub	7	#6-350	#6-350	19	10-1/2	4-15/16
T-H7203T	200	Overhead	Large Hub Opening	7	#6-350	#6-350	19	10-1/2	4-15/16
T-H7203U	200	Overhead	Large Hub Cover Plate	7	#6-350	#6-350	19	10-1/2	4-15/16
UT-H7210B	200	Overhead/Underground	Hub Opening	7	3/8" Stud	3/8" Stud	24-11/16	13	4-15/16
UT-H7210T	200	Overhead/Underground	Large Hub Opening	7	3/8" Stud	3/8" Stud	24-11/16	13	4-15/16
T-H7210U	200	Overhead/Underground	Large Hub Cover Plate	7	3/8" Stud	3/8" Stud	24-11/16	13	4-15/16
T-H7213A	200	Overhead/Underground	Blank	7	#6-350	#6-350	19	13	4-15/16
T-H7213B	200	Overhead/Underground	Hub Cover Plate	7	#6-350	#6-350	19	13	4-15/16
T-H7213C	200	Overhead/Underground	Hub Cover Plate	7	#6-350	#6-350	19	13	4-15/16
T-H7213N	200	Overhead/Underground	2" Hub	7	#6-350	#6-350	19	13	4-15/16
T-H7213T	200	Overhead/Underground	Large Hub Cover Plate	7	#6-350	#6-350	19	13	4-15/16
T-H7213U	200	Overhead/Underground	Large Hub Cover Plate	7	#6-350	#6-350	19	13	4-15/16
*T-H7213V	200	Overhead/Underground	2-1/2" Hub	7	#6-350	#6-350	19	13	4-15/16

200 Ampere | Lever Bypass | Offset Bused Meter Sockets| 4,5 & 7 Jaw | HQ Bypass With Jaw Clamping | Ringless Style | 600 VAC

Units rated 200 ampere continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
For Meter Socket options see replacement parts & accessory pages.

Knockout Configuation

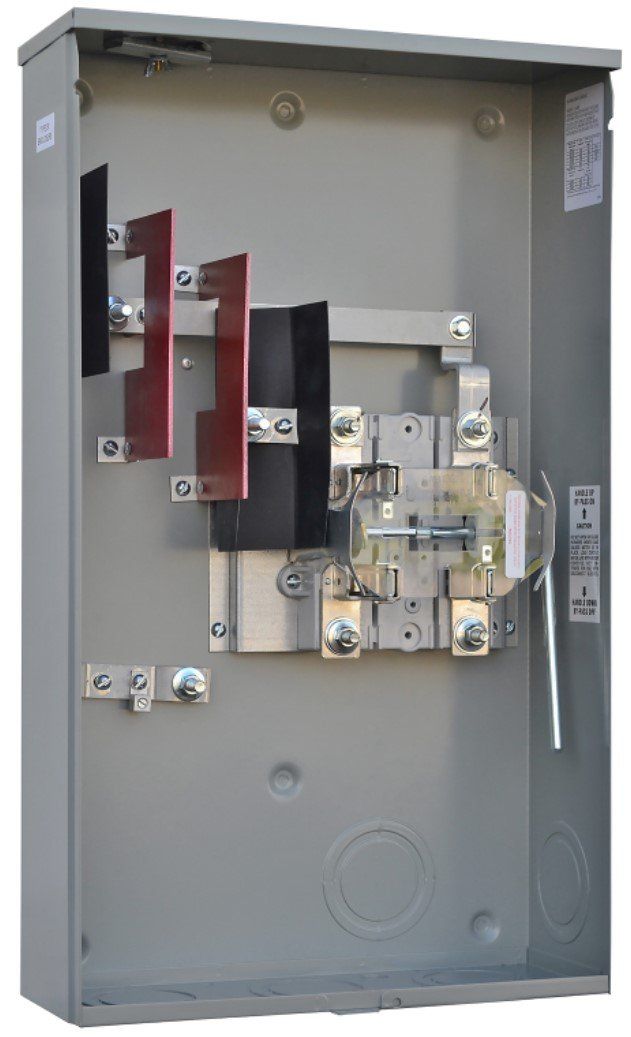

T-H4230C
Button

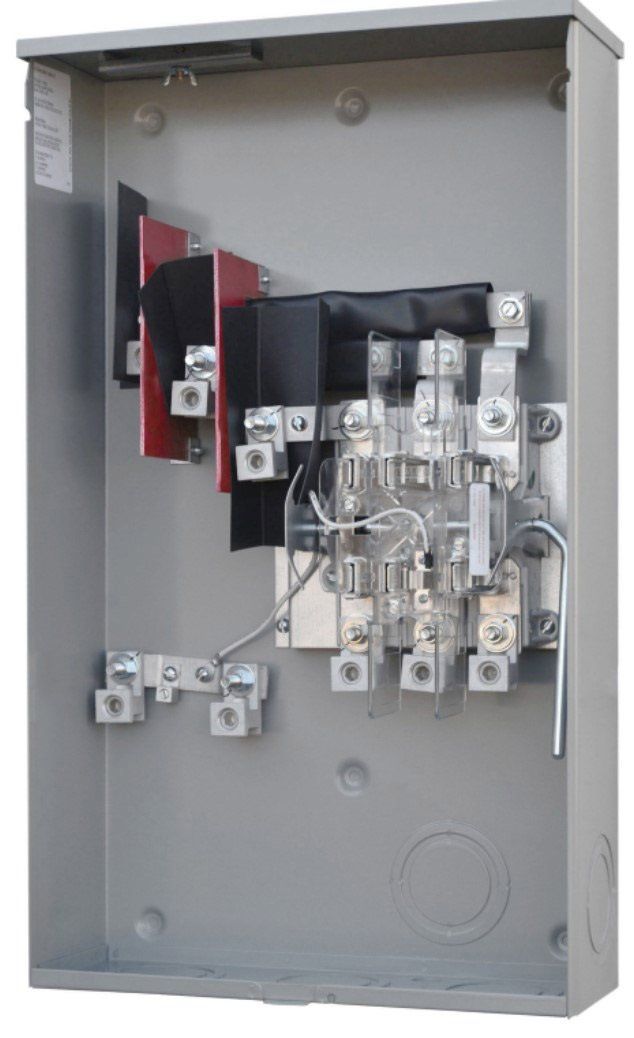

T-H7233U
Button

Catalog Number	Amps	Service	Hub	# Jaws	Wire Size CU-AL			Dimensions
					Line	Load	H"	W"	D"
T-H4230C	200	Overhead/Underground	Hub Cover Plate	4	3/8" Studs	3/8" Studs	27	16	5-5/8
T-H4233A	200	Underground	Solid Top	4	#6-350	#6-350	27	16	5-5/8
T-H5230C	200	Overhead/Underground	Hub Cover Plate	5	3/8" Studs	3/8" Studs	27	16	5-5/8
T-H5230-3C	200	Overhead/Underground	Hub Cover Plate	5	3/8" Studs	#6-350	27	16	5-5/8
T-H5233U	200	Overhead/Underground	Large Hub Cover	5	#6-350	#6-350	27	16	5-5/8
T-H7230C	200	Overhead/Underground	Hub Cover Plate	7	3/8" Studs	3/8" Studs	27	16	5-5/8
T-H7230U	200	Overhead/Underground	Large Hub Cover	7	3/8" Studs	3/8" Studs	27	16	5-5/8
T-H7230-3U	200	Overhead/Underground	Large Hub Cover	7	3/8" Studs	#6-350	27	16	5-5/8
T-H7233U	200	Overhead/Underground	Large Hub Cover	7	#6-350	#6-350	27	16	5-5/8

320 Ampere | Lever Bypass Meter Sockets | 4 Jaw | HQ Bypass/Jaw Clamping | Ringless Style | 600 VAC

Units rated 320 ampere continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
For Meter Socket options see replacement parts & accessory pages.

Knockout Configuation

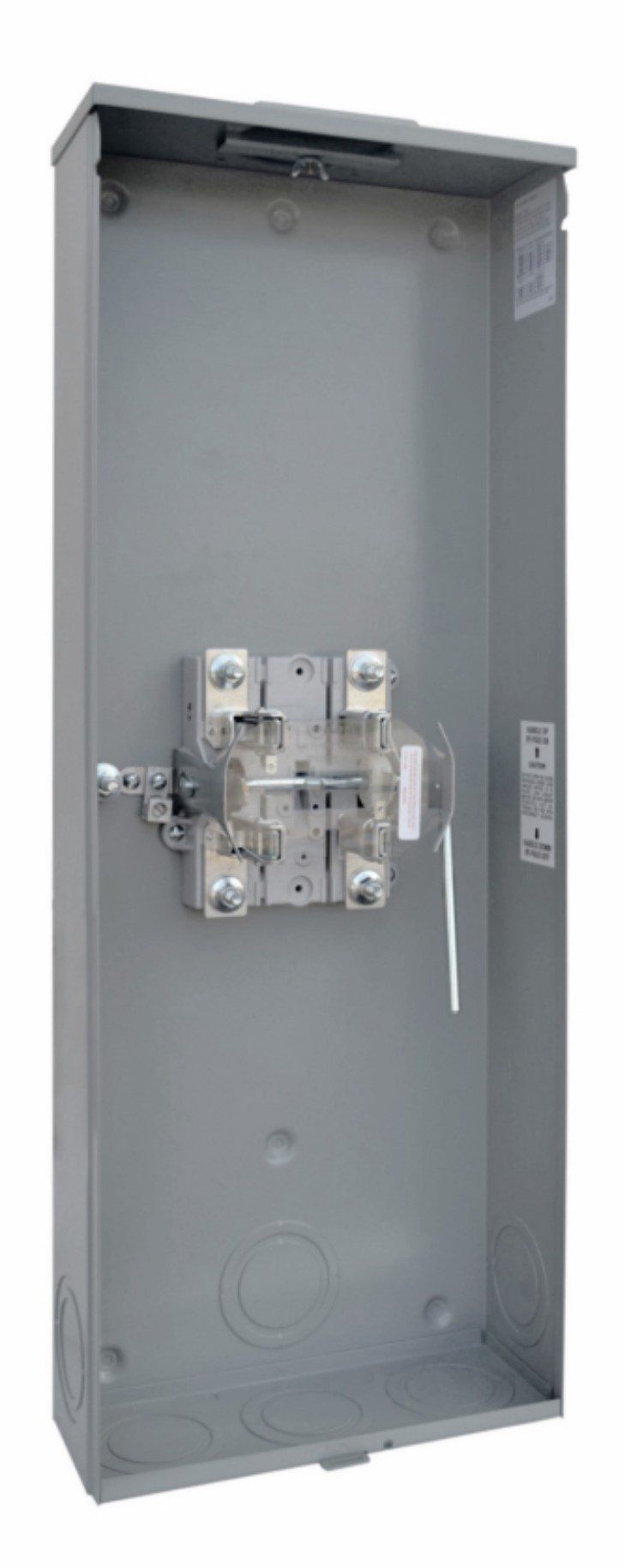

T-H4300U
Button

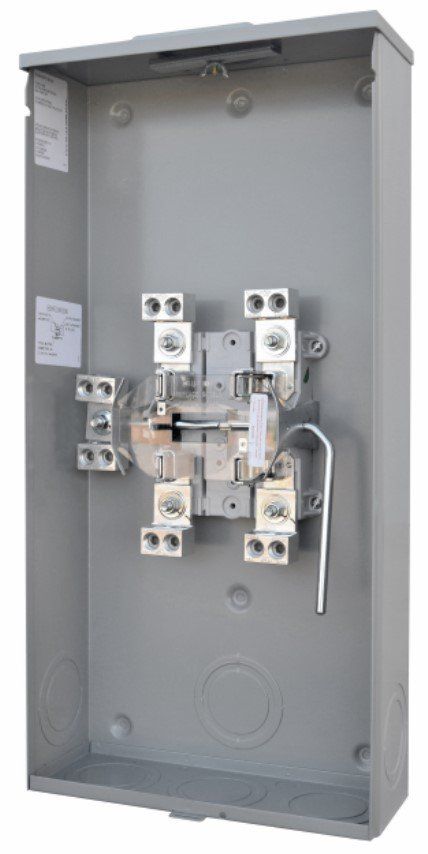

T-H4308U
Button

Catalog Number	Amps	Service	Hub	# Jaws	Wire CU-AL Line	Wire CU-AL Load	Dimension H"	Dimension W"	Dimension D"
T-H4300Q	320	Over Head	3" Hub	4	3/8" Studs	3/8" Studs	34-1/2	13	4-15/16
T-H4300T	320	Over Head	Hub Opening	4	3/8" Studs	3/8" Studs	34-1/2	13	4-15/16
T-H4300U	320	Over Head	HUb Cover Plate	4	3/8" Studs	3/8" Studs	34-1/2	13	4-15/16
T-H4300Q	320	Over Head	3" Hub	4	3/8" Studs	3/8" Studs	34-1/2	13	4-15/16
T-H4306U	320	Over Head	HUb Cover Plate	4	#4-600	#4-600	34-1/2	13	4-15/16
T-H4306-9T	320	Over Head	Hub Opening	4	#4-600	(2) #6-350	34-1/2	13	4-15/16
T-H4308Q	320	Over Head	3" Hub	4	(2) #6-250	(2) #6-250	26-13/16	13	4-15/16
T-H4308U	320	Over Head	Hub Cover Plate	4	(2) #6-250	(2) #6-250	26-13/16	13	4-15/16
T-H4309Q	320	Over Head	3" Hub	4	(2) #6-350	(2) #6-350	34-1/2	13	4-15/16
T-H4309U	320	Over Head	Hub Cover Plate	4	(2) #6-350	(2) #6-350	34-1/2	13	4-15/16

320 Ampere | Lever Bypass Meter Sockets | 5 & 7 Jaw | HQ Lever Bypass With Jaw Clamping | Ringless Style | 600 VAC

Units rated 320 ampere continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
For Meter Socket options see replacement parts & accessory pages.

Knockout Configuation

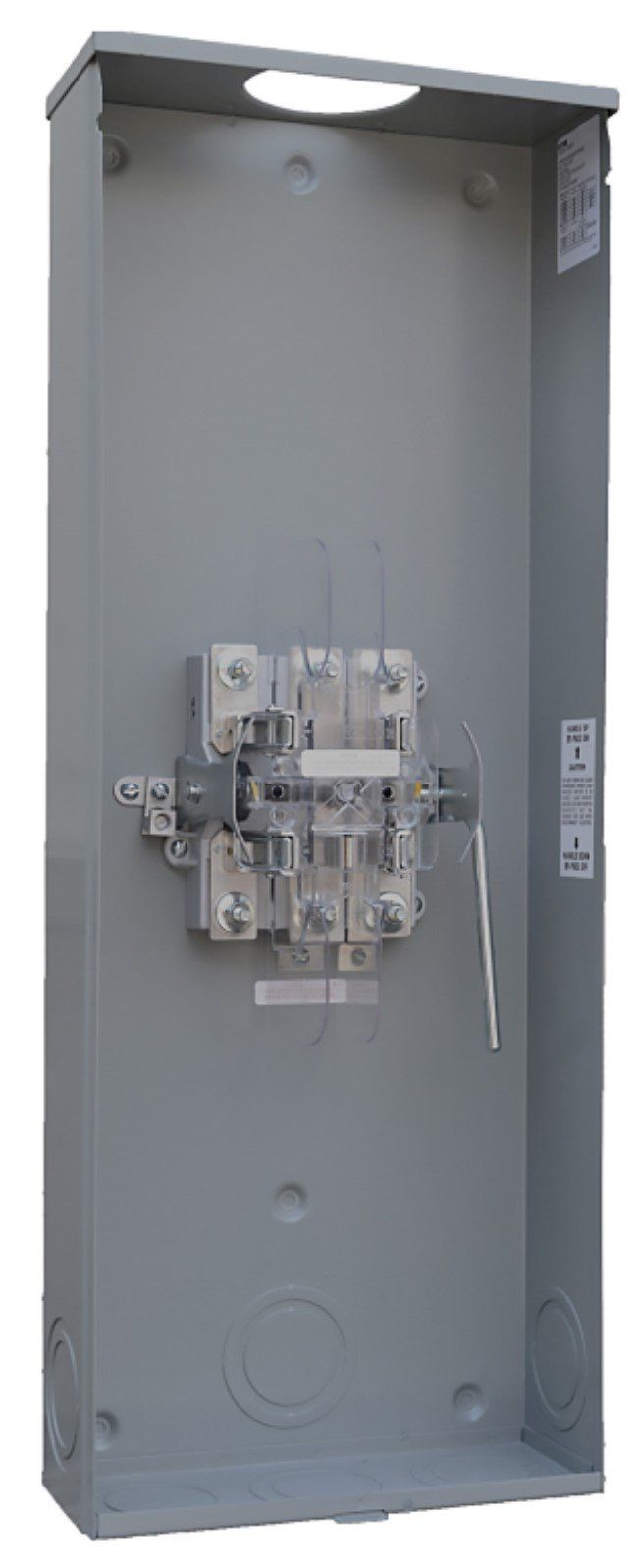

T-H5300T
Button

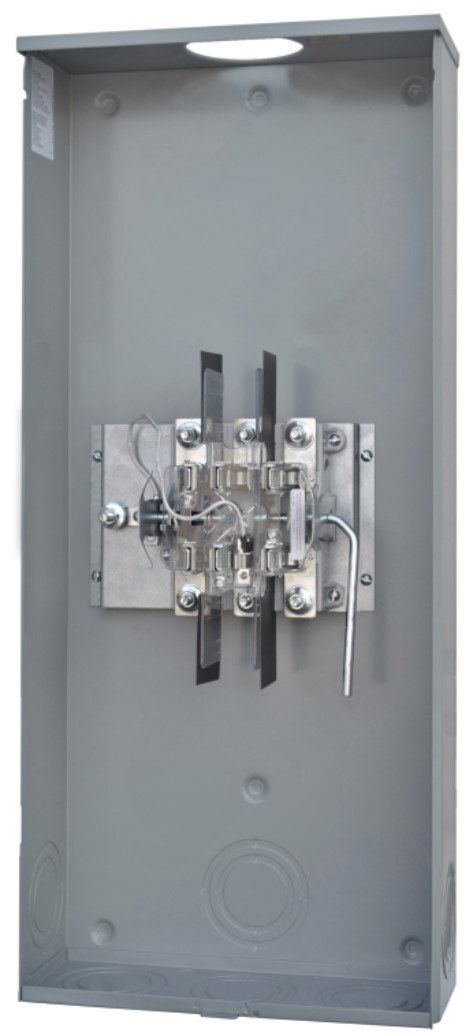

T-H7300T
Button

Catalog	Amps	Service	Hub	# Jaws	Wire Size CU-AL Line	Wire Size CU-AL Load	Dimensions H"	Dimensions W"	Dimensions D"
T-H5300T	320	Overhead	Hub Opening	5	3/8" Studs	3/8" Studs	34-1/2	13	4-15/16
T-H5306Q	320	Overhead	3" Hub	5	#4-600	#4-600	34-1/2	13	4-15/16
T-H5306T	320	Overhead	Hub Opening	5	#4-600	#4-600	34-1/2	13	4-15/16
T-H5308T	320	Overhead	Hub Opening	5	(2) #6-250	(2) #6-250	26-13/16	13	4-15/16
T-H5309U	320	Overhead	Hub Cover Plate	5	(2) #6-350	(2) #6-350	34-1/2	13	4-15/16
T-H7300Q	320	Overhead	3" Hub	7	3/8" Studs	3/8" Studs	34-1/2	15	5-11/16
T-H7300T	320	Overhead	Hub Opening	7	3/8" Studs	3/8" Studs	34-1/2	15	5-11/16
T-H7306T	320	Overhead	Hub Opening	7	#4-600	#4-600	34-1/2	15	5-11/16
T-H7306U	320	Overhead	Hub Cover Plate	7	#4-600	#4-600	34-1/2	15	5-11/16
T-H7308Q	320	Overhead	3" Hub	7	(2) #6-250	(2) #6-250	26-13/16	15	5-11/16
T-H7308T	320	Overhead	Hub Opening	7	(2) #6-250	(2) #6-250	26-13/16	15	5-11/16
T-H7309U	320	Overhead	Hub Cover Plate	7	(2) #6-350	(2) #6-350	34-1/2	15	5-11/16

320 Ampere | Lever Bypass Offset Bused Meter Sockets | 4 Jaw | HQ Bypass With Jaw Clamping | Ringless Style | 600 VAC

Units rated 320 ampere continuous. Meter Socket short circuit current ratings are g en used in conjunction with certain types of over current protection. Contact factory for details.
NEMA 3R Enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
G-90 galvanized steel.
For Meter Socket options see replacement parts & accessory pages.

Knockout Configuation

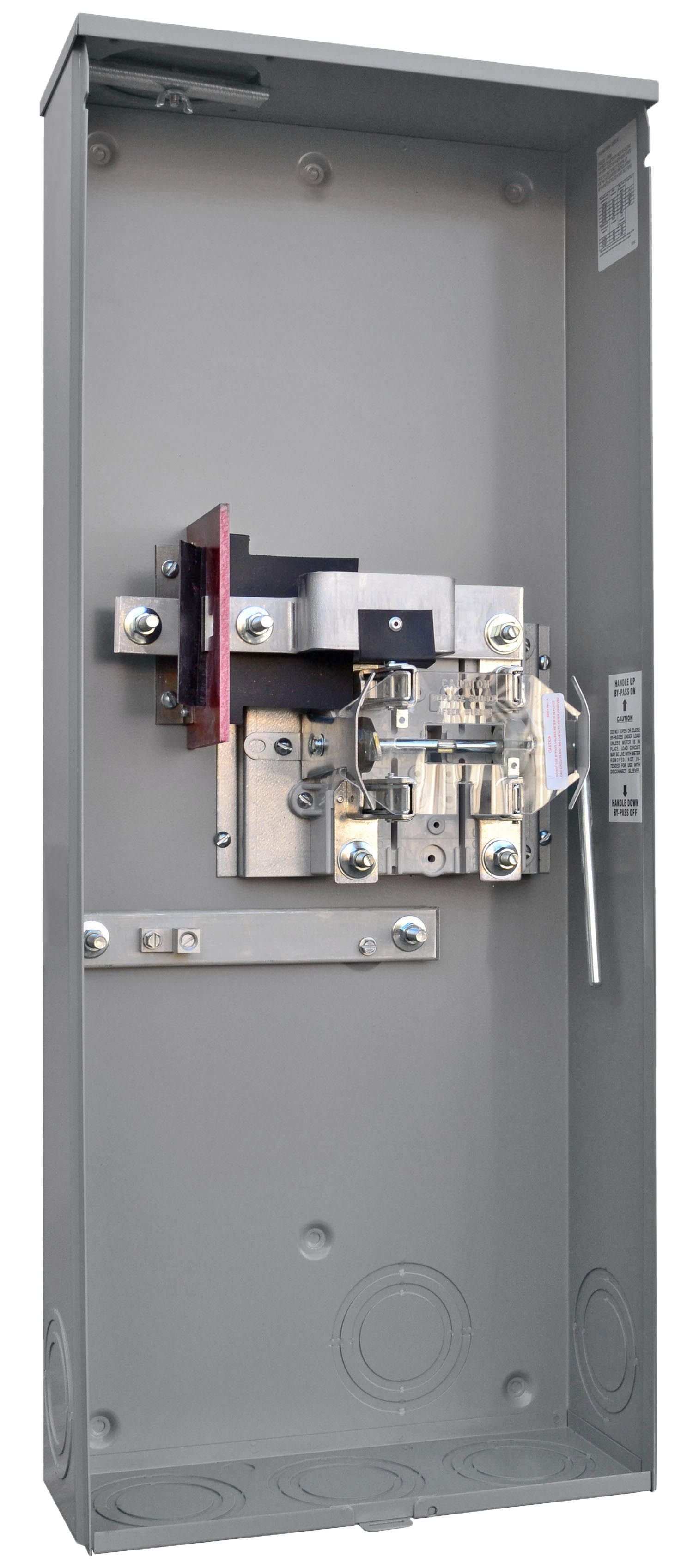

UT-H4330U
Button

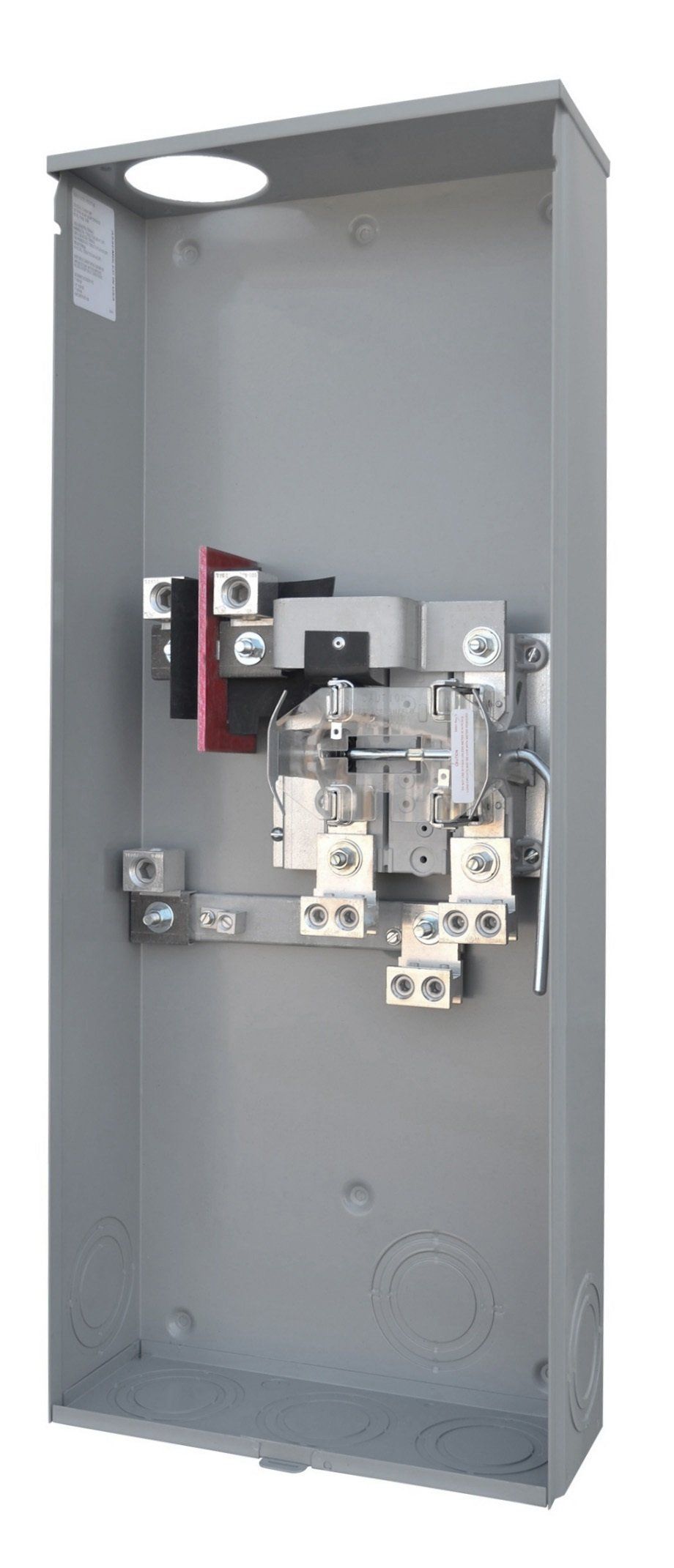

T-H4336-9T
Button

Catalog	Amps	Service	Hub	# Jaws	Line	Load	H"	W"	D"
T-H4320A	320	Underground	Solid Top	4	3/8" Studs	3/8" Studs	26	15	5-11/16
UT-H4326-9A	320	Underground	Solid Top	4	#4-600	(2) #6-350	26	15	5-11/16
T-H4329A	320	Underground	Solid Top	4	(2) #6-350	(2) #6-350	26	15	5-11/16
T-H4330U	320	Overhead/Underground	Hub Cover Plate	4	3/8" Studs	3/8" Studs	36-5/8	15	5-11/16
UT-H4330U	320	Overhead/Underground	Hub Cover Plate	4	3/8" Studs	3/8" Studs	36-5/8	15	5-11/16
T-H4336U	320	Overhead/Underground	Hub Cover Plate	4	#4-600	#4-600	36-5/8	15	5-11/16
T-H4336-9T	320	Overhead/Underground	Hub Opening	4	#4-600	(2) #6-350	36-5/8	15	5-11/16
T-H4336-9U	320	Overhead/Underground	Hub Cover Plate	4	#4-600	(2) #6-350	36-5/8	15	5-11/16
T-H4338U	320	Overhead/Underground	Hub Cover Plate	4	(2) #6-250	(2) #6-250	29	15	5-11/16
T-H4339T	320	Overhead/Underground	Hub Opening	4	(2) #6-350	(2) #6-350	36-5/8	15	5-11/16
T-H4340U	320	Overhead/Underground	Hub Cover Plate	4	3/8" Studs	3/8" Studs	28-1/2	18	5-11/16

Socket Breaker Enclosures

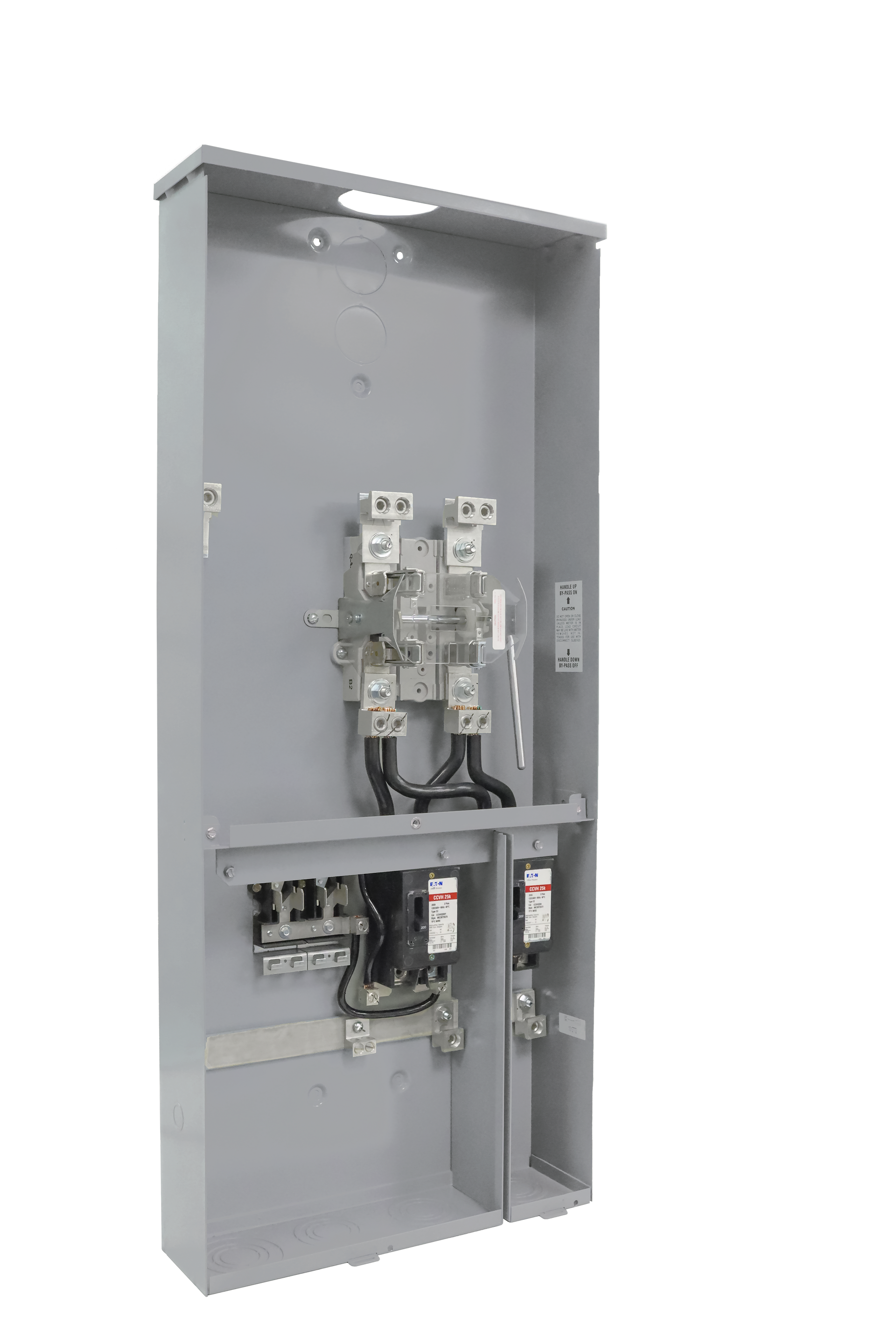

320 Ampere | Socket Breaker Combinations | 4 Jaw | Single Phase | 320 Ampere | HQ Lever Bypass | Ringless | 600 VAC

"PD" Series Pedestals for these units are catalog #1006851A, &1011503
**Plug-in breaker units will accept Square-D Type-Hom; Eaton Type-BR; Siemens Type-QP; GE Type- THQL.
Plug-in breakers are wired in parallel with the main breaker.
1011455A has solid bottom front instead of breaker access door.
*Unit has UL label.
NEMA 3R enclosures.
G-90 galvanized steel.
For Meter Socket options see replacement parts & accessories pages.

Knockout Configuation

1011455A
Button

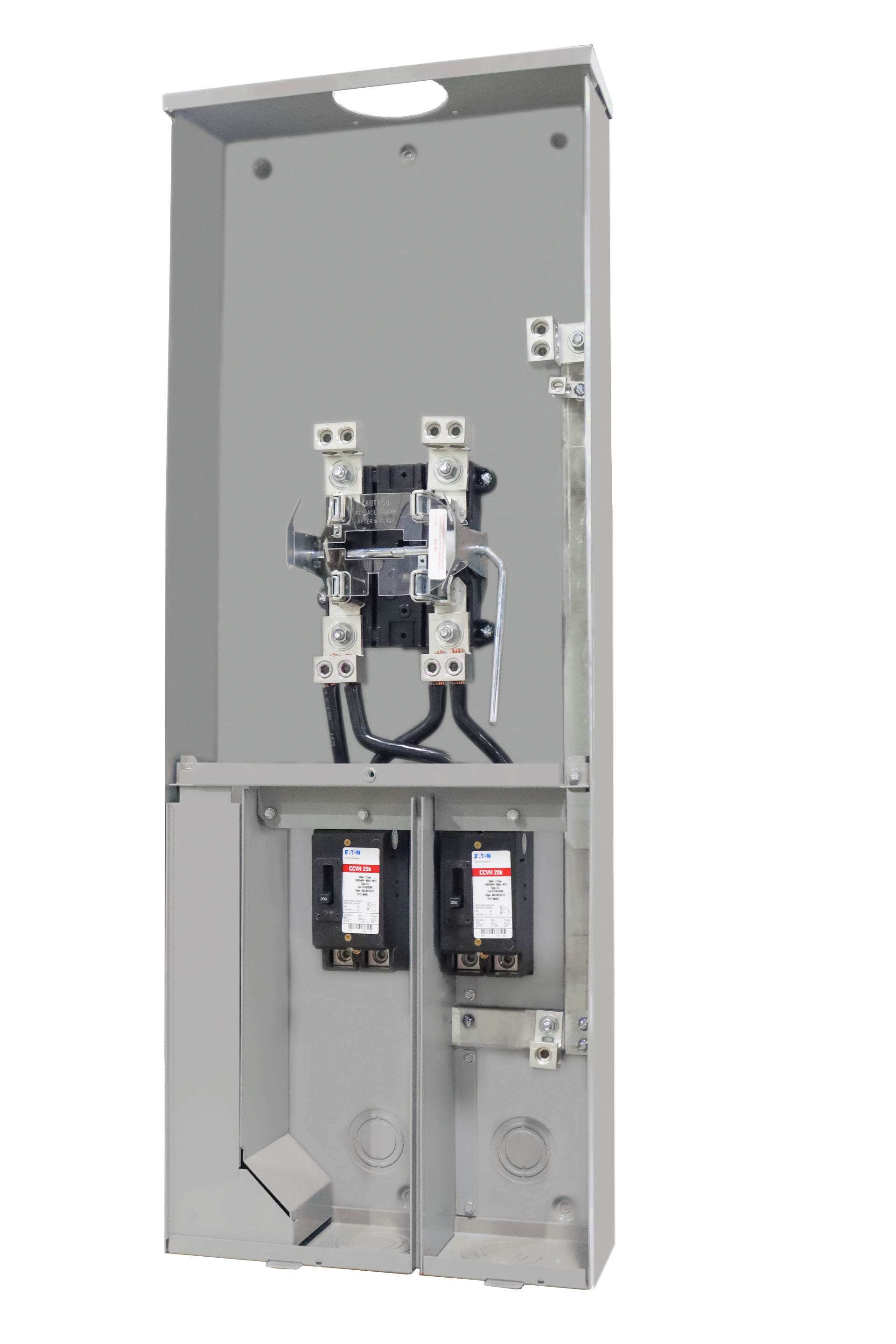

UHC344N3T
Button

Catalog Number	Bolt-In Breakers Installed	Provisions For Breakers	Hub	Wire CU-AL Line	Wire CU-AL Load	Height"	Width"	Depth"
*UHC344N3T	(2) 2-Pole 200 Amp	-	Large Hub Opening	(2) #6-250	#2/0-250	38-57/64	15-1/2	4-5/16
*UHC344N5T	(2) 2-Pole 200 Amp	-	Large Hub Opening	(2) #6-350	#2/0-250	42-21/32	15-1/2	4-5/16
*UHC364N4T	(2) 2-Pole 200 Amp	**(1) 2-Pole	Large Hub Opening	(2) #3-350	#2/0-250	42-21/32	15-1/2	4-5/16
1011455A	(2) 2-Pole 200 Amp	**(2) 2-Pole	Large Hub Opening	(2) #6-350	(2) #6-350	49-21/32	17-1/2	6-1/4

Transfer Switch

7 & 13 Jaw | 100, 200, 400 & 600 Ampere | Three Phase | 600 VAC

Switches are double pole/double throw with center off position.

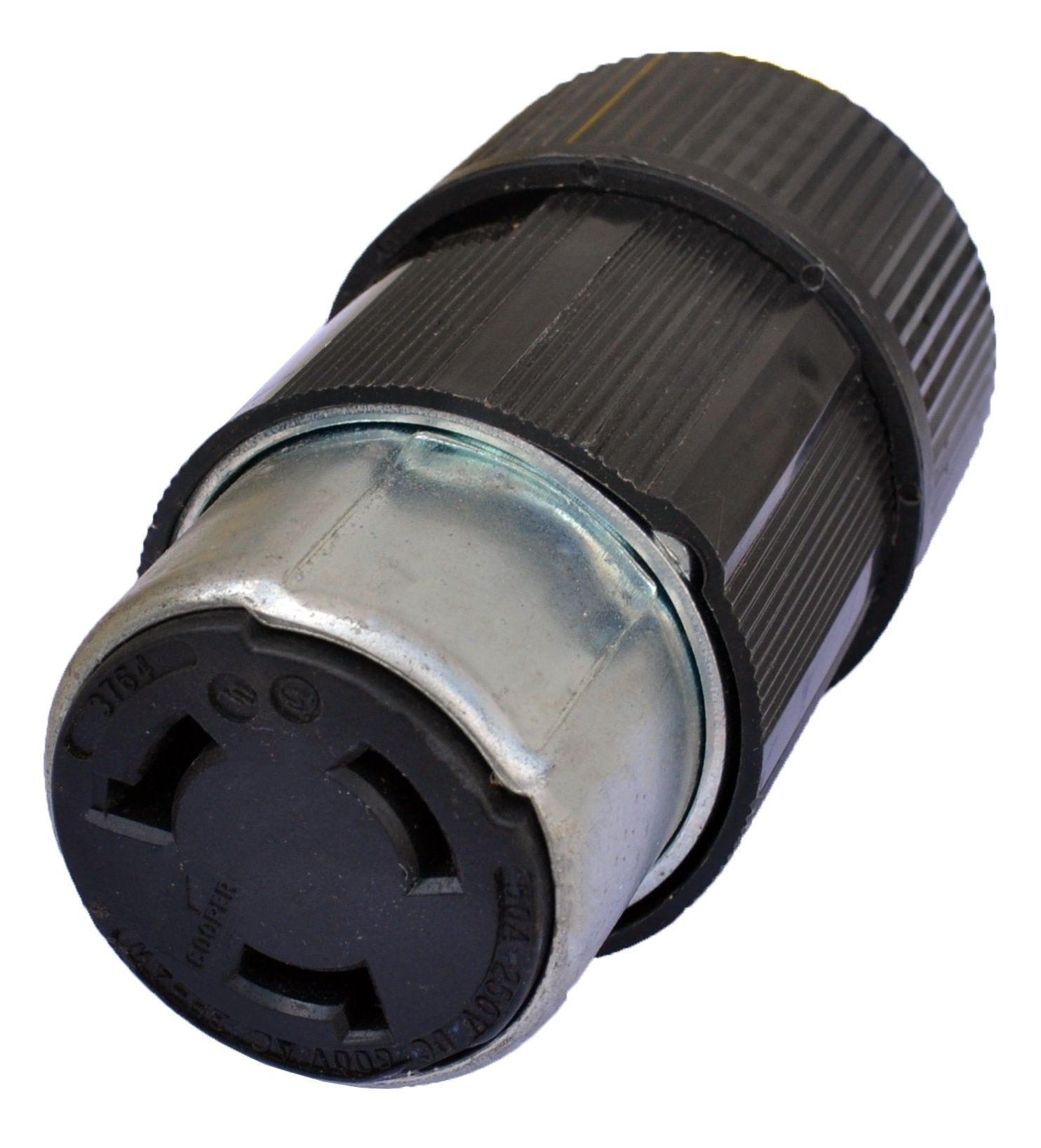

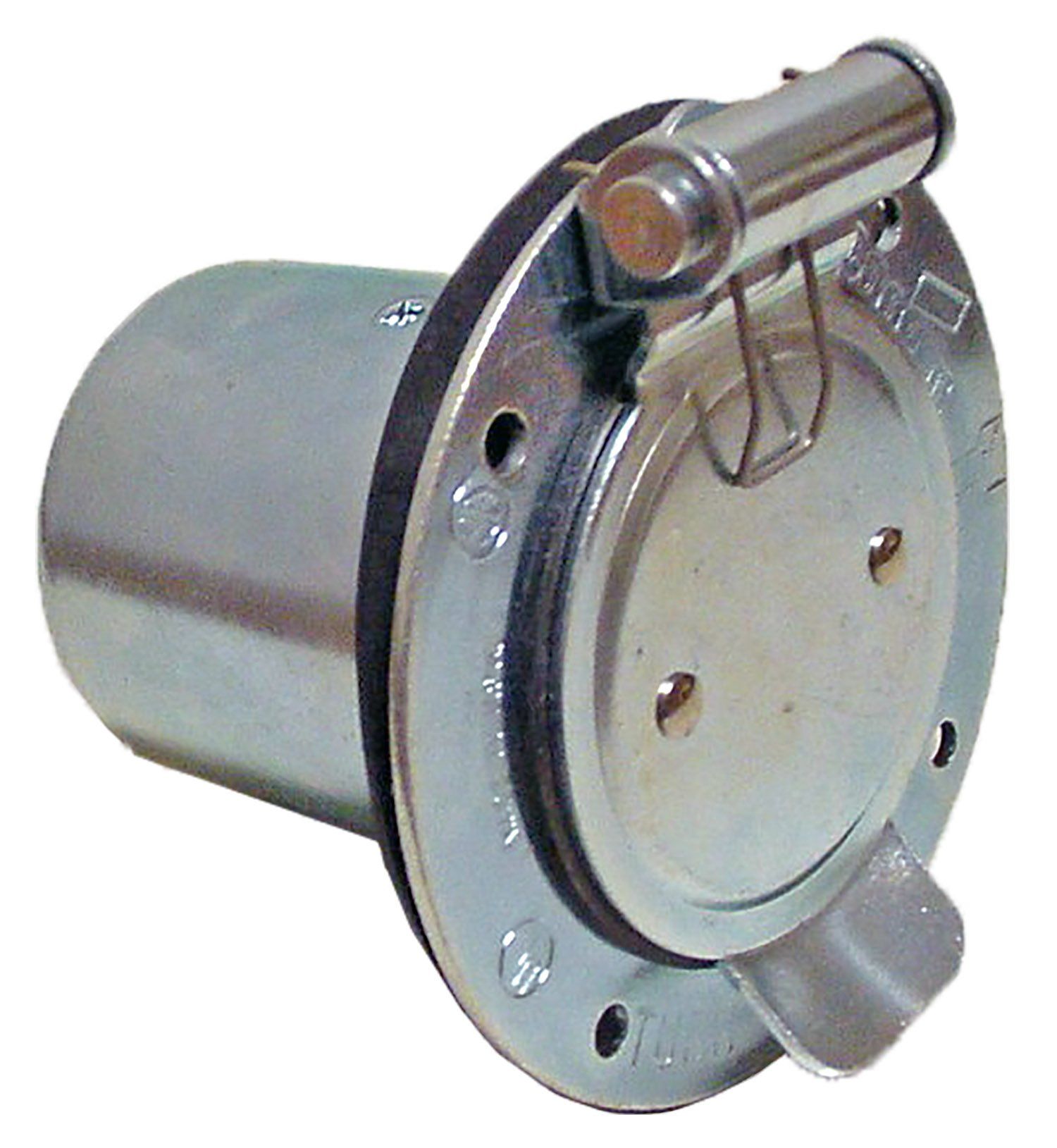

Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors. (Not available for UUV423 & UUV623 units).
Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
Units shipped without receptacles have a removable bolted cover plate except for 423 & 623 units.
Units shipped without receptacles have a removable bolted cover plate.
G-90 galvanized steel.
NEMA 3R enclosures.

Knockout Configuation

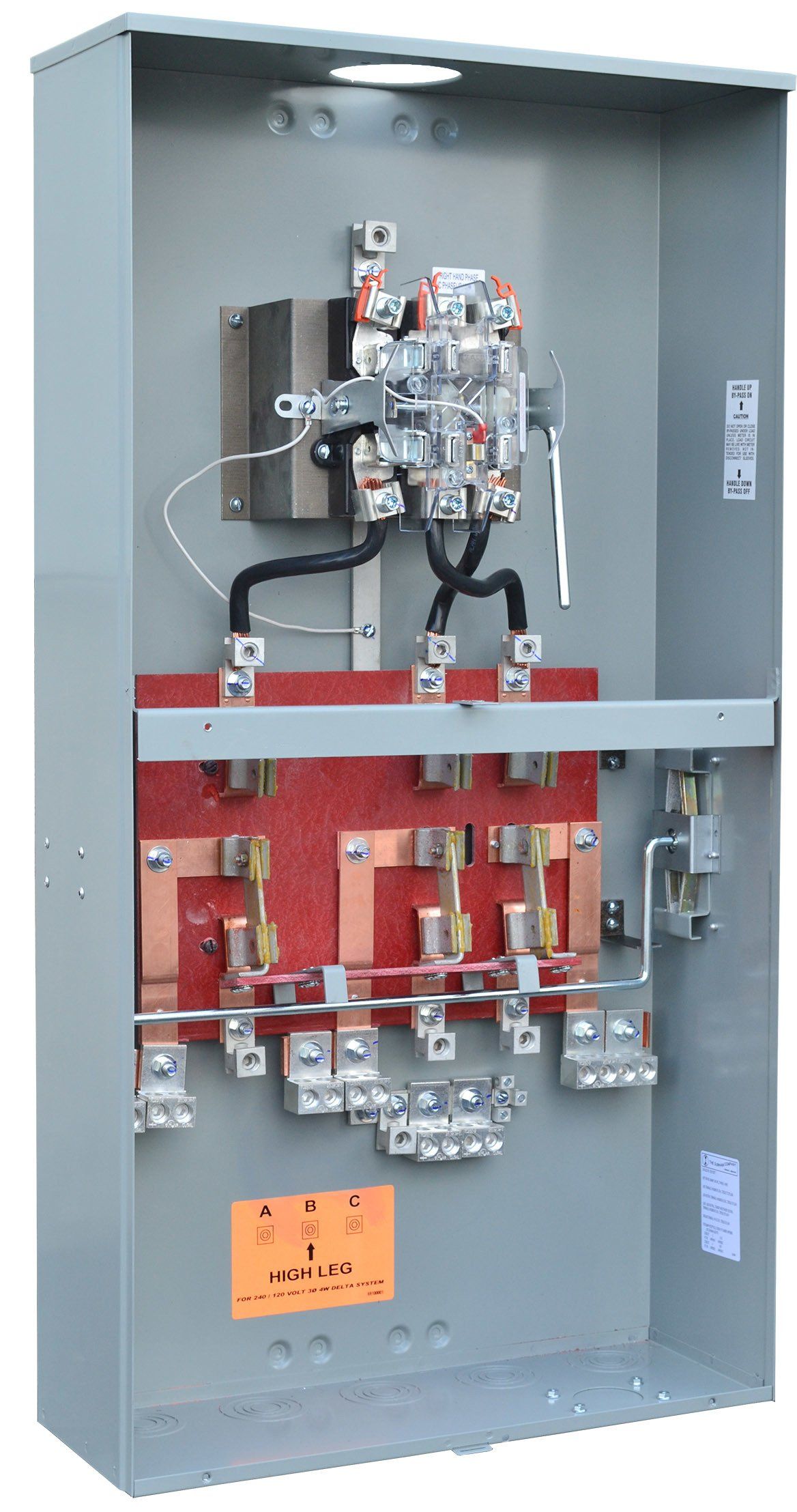

SSV213DT-T
Button

Catalog Number	# Jaws	Meter Form	Current Transformer Ratio	Main Rating Amps	Auxil. Rating Amps	With 50 Amp Receptacle	Hub Opening	Line	Load	Auxilary Connectors	Width"	Depth"	Height"
SSV213DT-Q	7	15S	N/A	200	200	-	3" Hub	#6-350	(4) #6-250	#6-250	44	23	8-31/64
SSV213DTR-T	7	15S	N/A	200	200	yes	Hub Opening (Large)	#6-350	(4) #6-250	50 Amp Rec.	44	23	8-31/64
SSV213DT-T	7	15S	N/A	200	200	-	Hub Opening (Large)	#6-350	(4) #6-250	#6-250	44	23	8-31/64

New Paragraph 100 Ampere - 7 Jaw - Self Contained- Ring Style - Meter Socket/Switches

200 Ampere - 7 Jaw - Self Contained - Lever Bypass - Ringless Style - Socket/SwitchesNew Paragraph

Catalog Number	# Jaws	Meter Form	Current Transformer Ratio	Main Rating Amps	Auxil. Rating Amps	With 50 Amp Receptacle	Hub Opening	Line	Load	Auxilary Connectors	Width"	Depth"	Height"
SSV213DT-Q	7	15S	N/A	200	200	-	3" Hub	#6-350	(4) #6-250	#6-250	44	23	8-31/64
SSV213DTR-T	7	15S	N/A	200	200	yes	Hub Opening (Large)	#6-350	(4) #6-250	50 Amp Rec.	44	23	8-31/64
SSV213DT-T	7	15S	N/A	200	200	-	Hub Opening (Large)	#6-350	(4) #6-250	#6-250	44	23	8-31/64

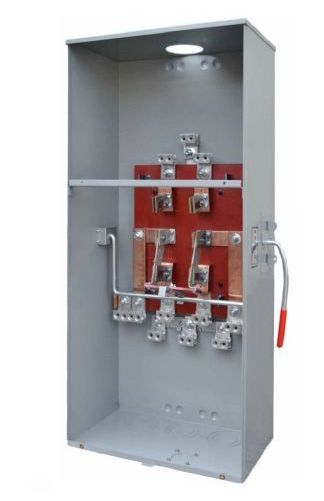

200, 400 & 600 Ampere - 13 Jaw - Transformer Rated - Lever Bypass - Ringless Style - Socket/Switches

Catalog Number	# Jaws	Meter Form	Current Transformer Ratio	Main Rating Amps	Auxil. Rating Amps	With 50 Amp Receptacle	Hub Opening	Wire Size CU-AL Line	Wire Size CU-AL Load	Auxilary Connectors	Height"	Width"	Depth"
SSV233DT-T	13	8S	(3) 200:5	200	200	-	Hub Opening (Large)	#6-250	#6-250	#6-250	42	23	11-39/64
*SSV423DT-Q	13	8S	(3) 400:5	400	400	N/A	3" Hub	(2) #6-350	(4) #6-350	(2) #6-350	48	28	11-39/64
*SSV423DT-QQ	13	8S	(3) 400:5	400	400	N/A	(2) 3" Hubs	(2) #6-350	(4) #6-350	(2) #6-350	48	28	11-39/64
*SSV423DT-R	13	8S	(3) 400:5	400	400	N/A	3-1/2" Hub	(2) #6-350	(4) #6-350	(2) #6-350	48	28	11-39/64
*SSV423DT-S	13	8S	(3) 400:5	400	400	N/A	4" Hub	(2) #6-350	(4) #6-350	(2) #6-350	48	28	11-39/64
*SSV423DT-T	13	8S	(3) 400:5	400	400	N/A	Hub Opening (Large)	(2) #6-350	(4) #6-350	(2) #6-350	48	28	11-39/64
*SSV623DT-TT	13	8S	(3) 400:5 RF 4	600	600	N/A	(2) Hub Opening (Large)	(2) #4-500	(1) #4-500 (3) #6-350	(2) #4-500	55	33-1/2	15-1/4

7 & 13 Jaw | 200, 400 & 600 Ampere | Three Phase | 600 VAC

Switches are double pole/double throw with center off position.
Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors. (Not available for 423 & 623 units).
*Does not have provisions for twist lock receptacle.
Units shipped without receptacles have a removable bolted cover plate except for the 423 & 623 units.
Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
G-90 galvanized steel, NEMA 3R enclosures.

Knockout Configuation

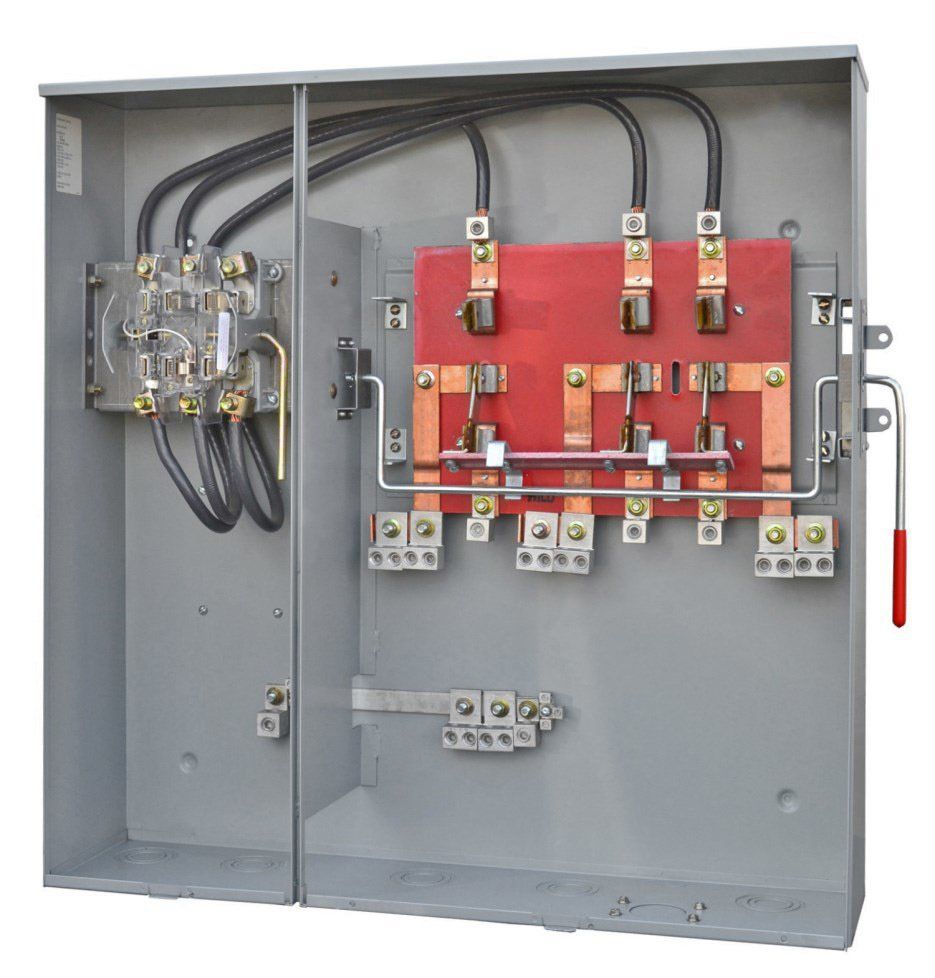

SSV213DTSS-A
Button

200 Ampere - 7 Jaw - Self Contained - Lever Bypass - Ringless Style - Meter Socket/Switches

Catalog Number	# Jaws	Meter Form	Current Transformer Ratio	Main Rating Amps	Auxil. Rating Amps	With 50 Amp Receptacle	Wire Size CU-AL Line \| Load		Auxilary Connectors	Height"	Width"	Depth"
SSV213DTUU-A	7	12S	N/A	200	200	-	#6-350	(4) #6-250	#6-250	35-1/2	35-1/4	8-1/2

600 Ampere - 13 Jaw - Transformer Rated - Lever Bypass -Ringless Style - Meter Socket/Switches

Catalog Number	# Jaws	Meter Form	Current Transformer Ratio	Main Rating Amps	Auxil. Rating Amps	With 50 Amp Receptacle	Wire Size	CU-AL	Auxilary	Height"	Width"	Depth"
*SSV423DTSS-A	13	8S	(3) 400:5	400	400	N/A	(2) #6-350	(4) #6-350	(2) #6-350	38-1/2	40-1/16	11-5/8
*SSV623DTSS-A	13	8S	(3) 400:5 RF 4	600	600	N/A	(2) #4-500	(1) #4-500	(2) #4-500	50	50	15-1/4

Accessories

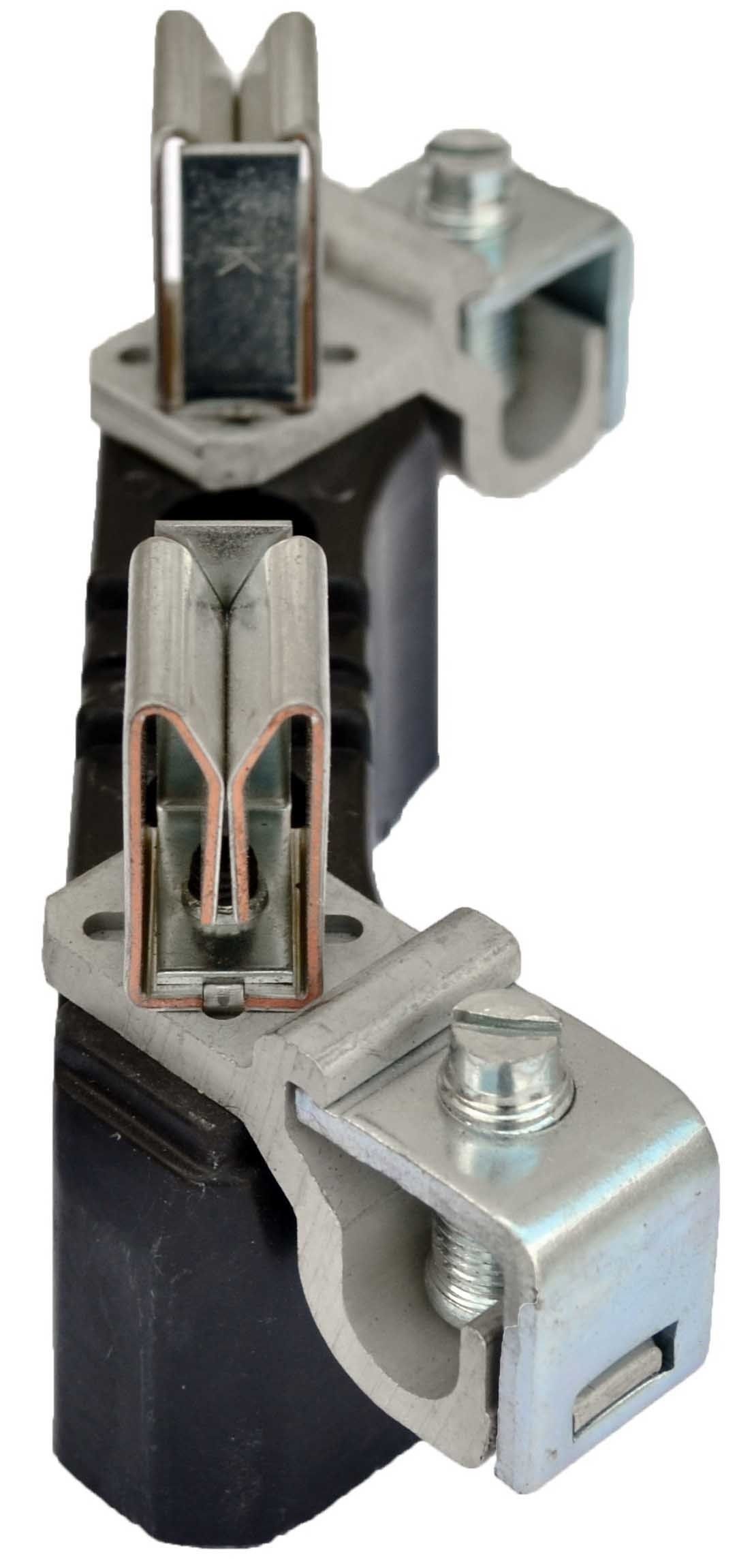

ARP00039

125 Amp
2/0
Socket Block Assembly One Side With Caps
Button
ARP00354

150 Amp
250 MCM
Socket Block Assembly One Side With Caps
Button

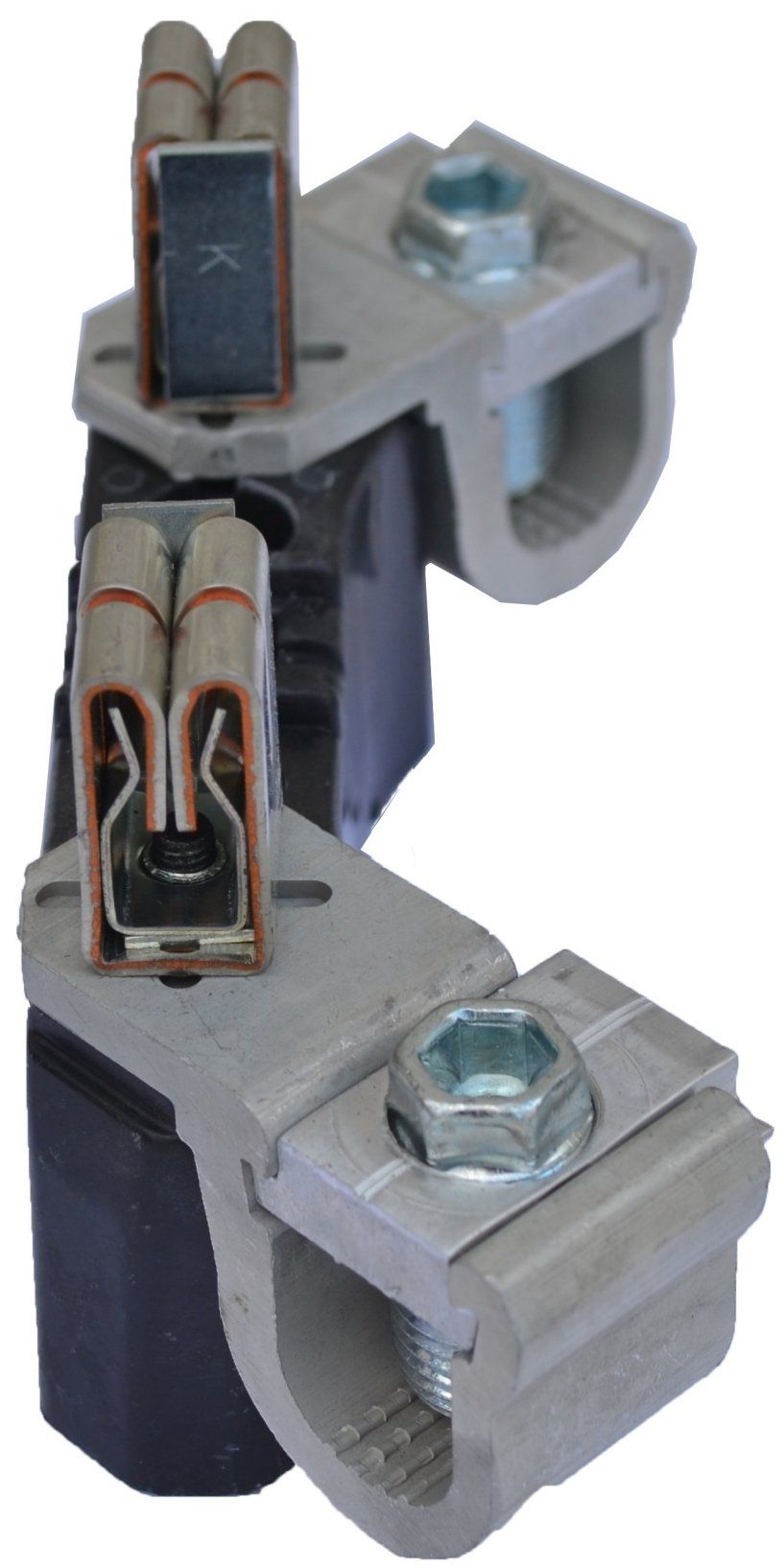

ARP00048

200 Amp
250 & 350 MCM
Socket Block Assembly One Side With Caps
Button

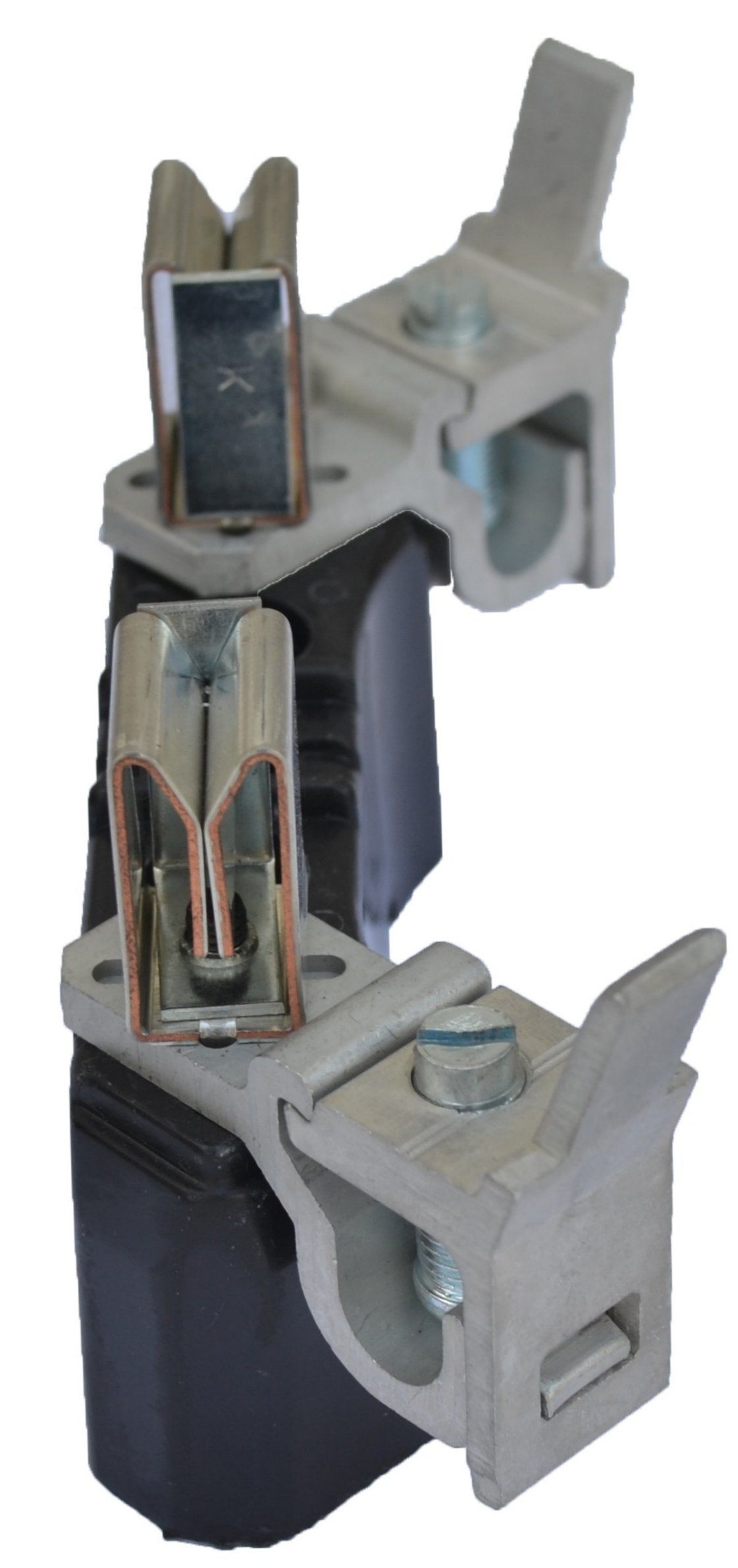

ARP00351

125 Amp
2/0
Horn Bypass
Socket Block Assembly One Side
Button

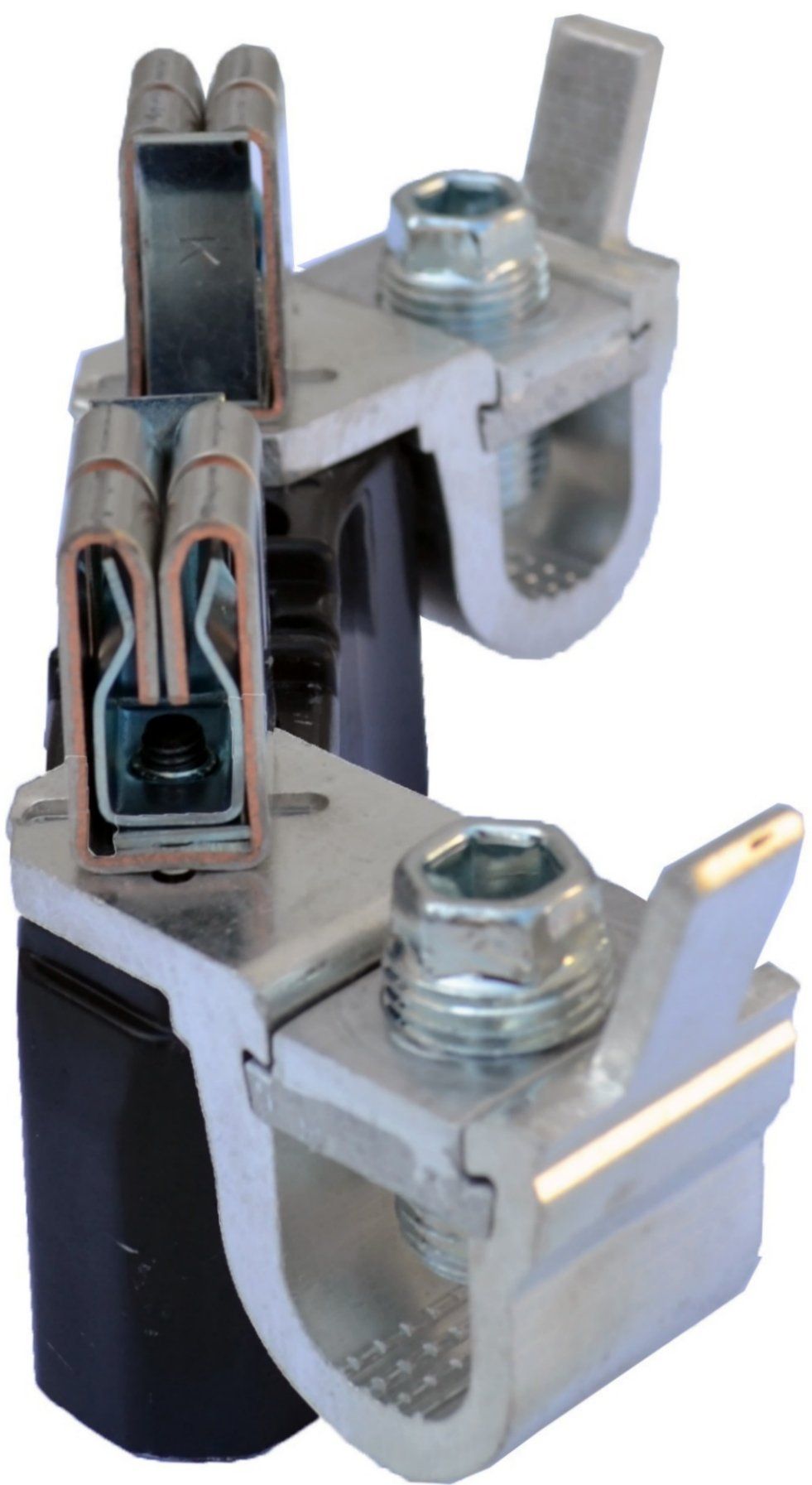

ARP00049

150-200 Amp
250 & 350 MCM
Horn Bypass
Socket Block Assembly One Side
Button

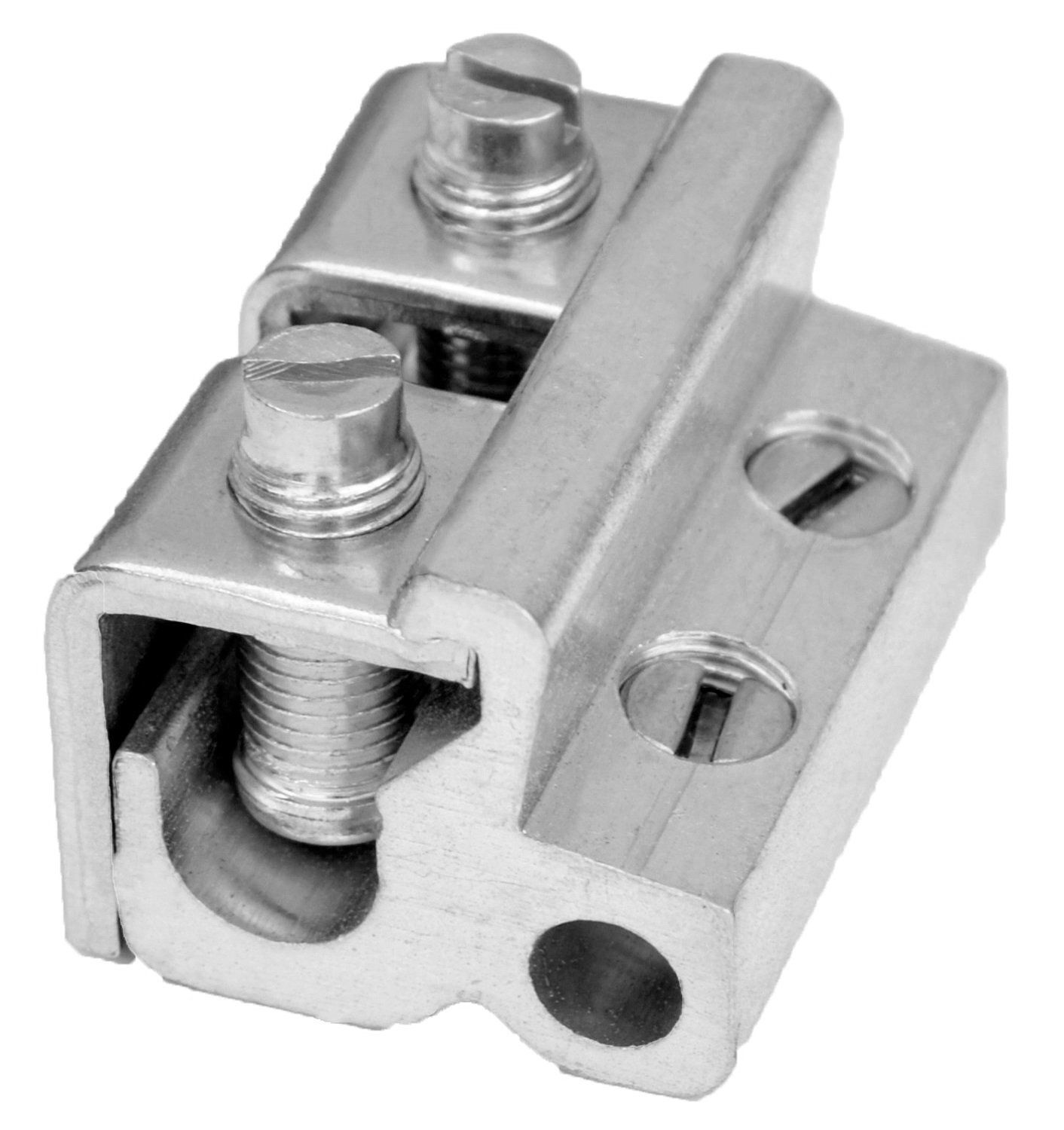

ARP00040

125 Amp
2/0
Triplex Neutral With Caps
Button

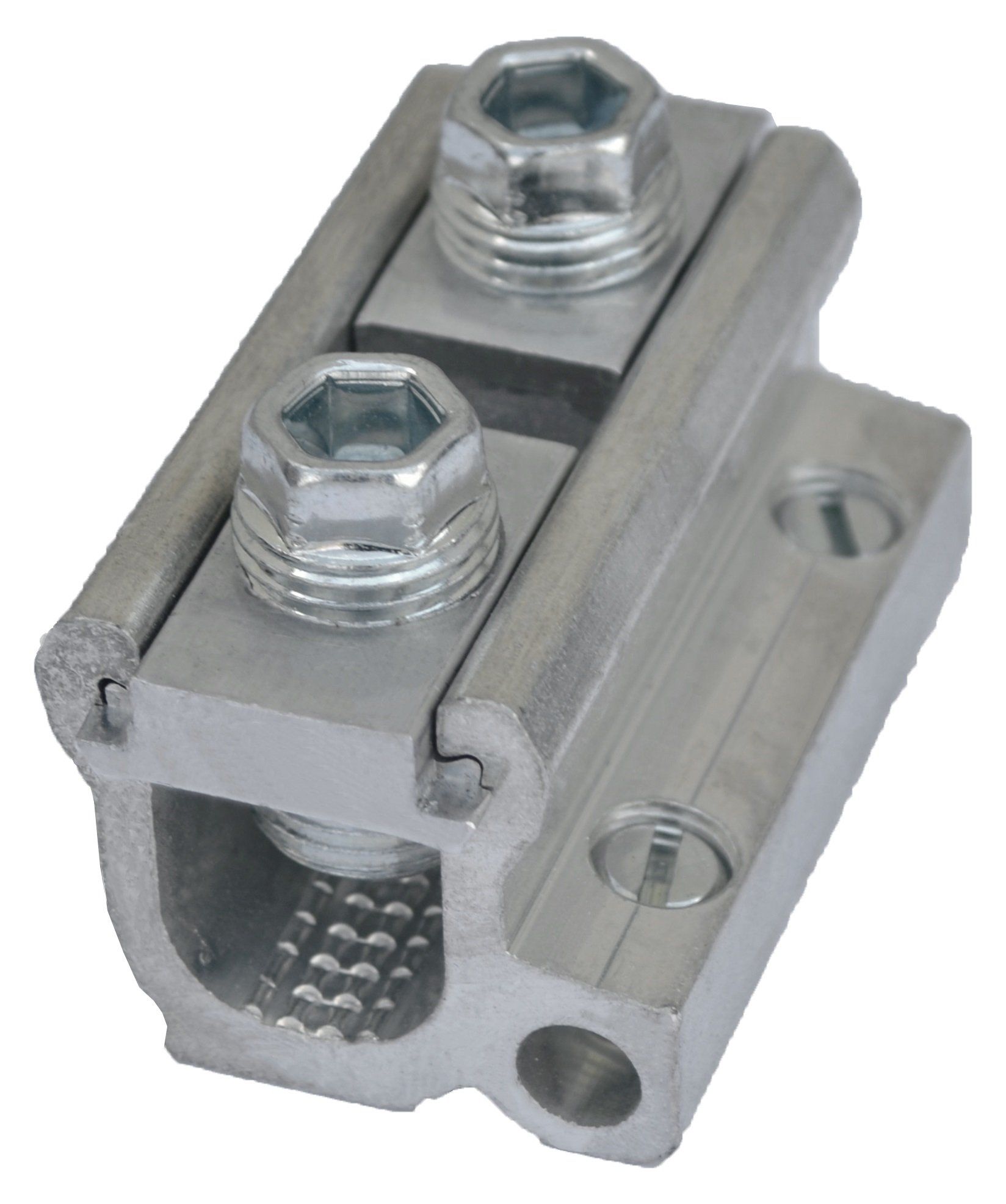

ARP00050

150-200 Amp
250 & 350 MCM
Triplex Neutral With Caps
Button
ARP00046

125 Amp
2/0
Quadplex Neutral With Caps
Button
ARP01745

150-200 Amp
250 & 350 MCM
Quadplex Neutral With Caps
Button

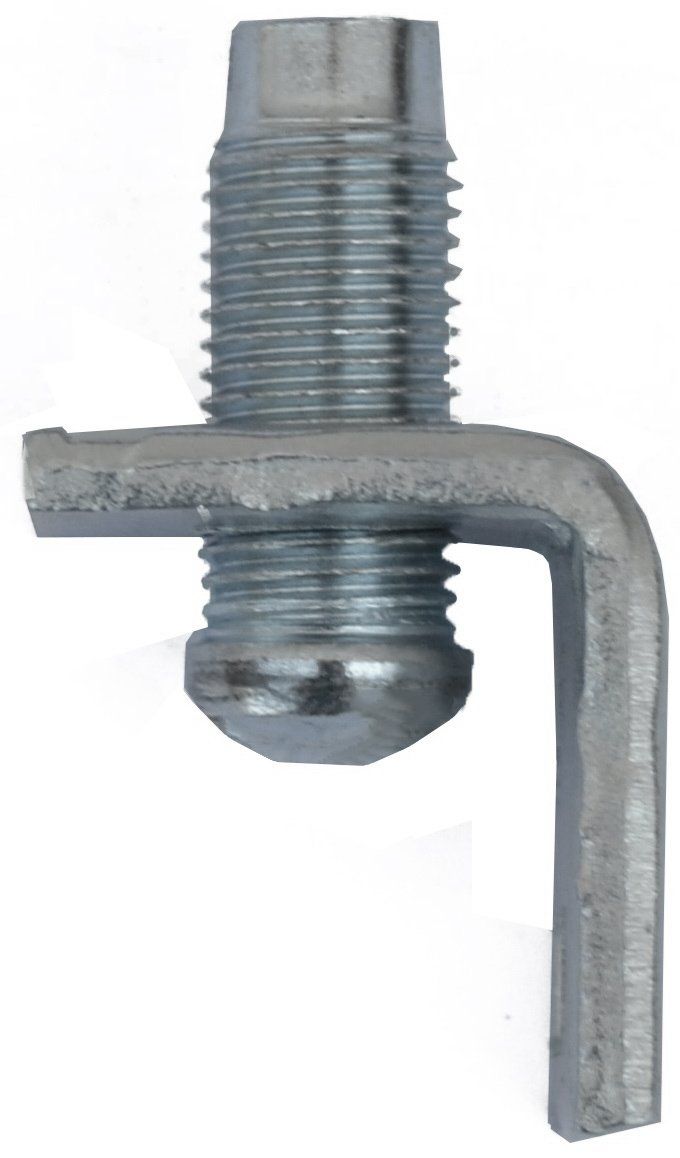

ARP00041

125 Amp
2/0
Socket Cap OR
Neutral Cap Assembly
Button
ARP00391

125 Amp
2/0
Socket Cap OR
Neutral Cap Assembly
Button

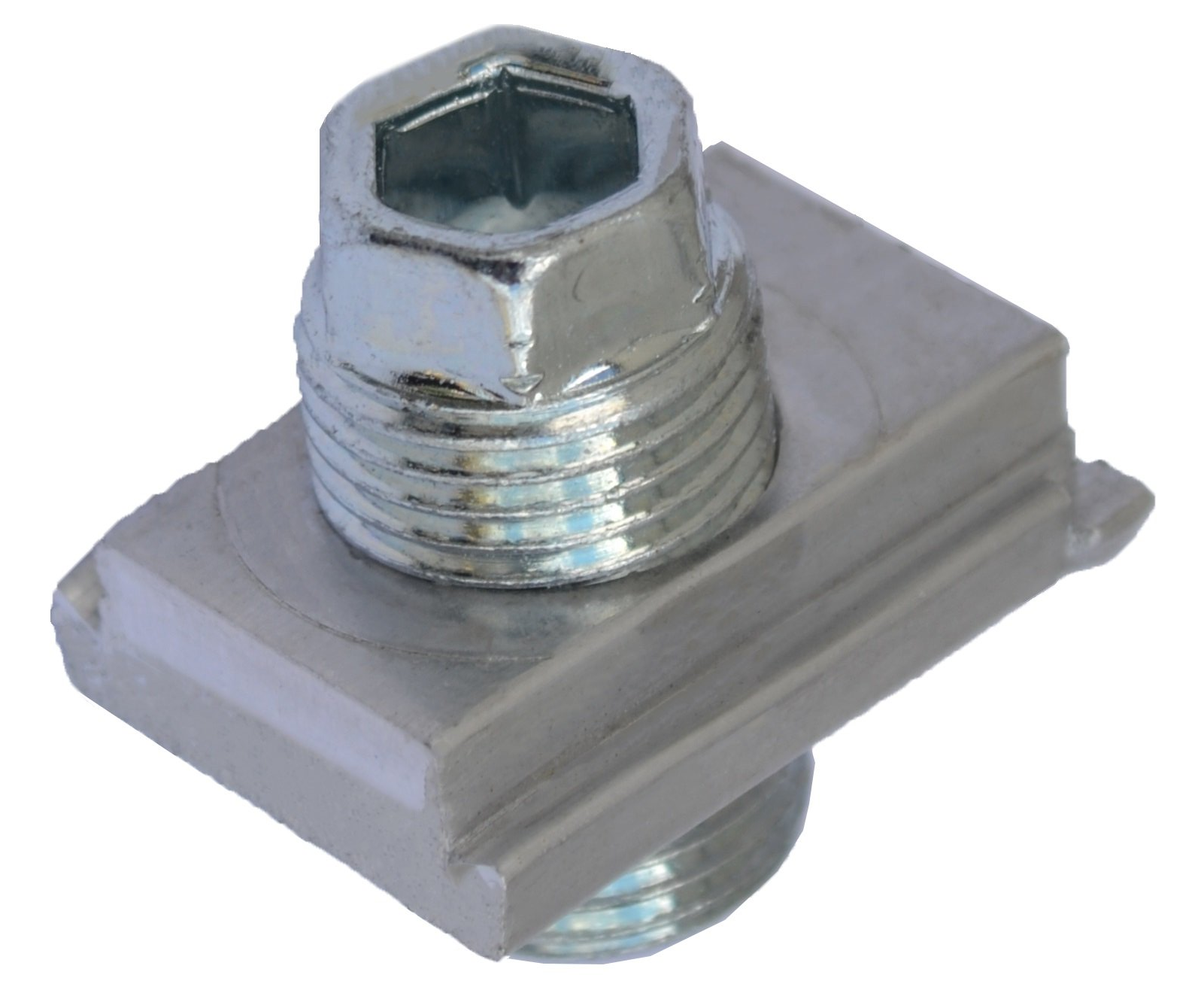

ARP01226

150-200 Amp
250 & 350 MCM
Socket Cap OR
Neutral Cap Assembly
Button

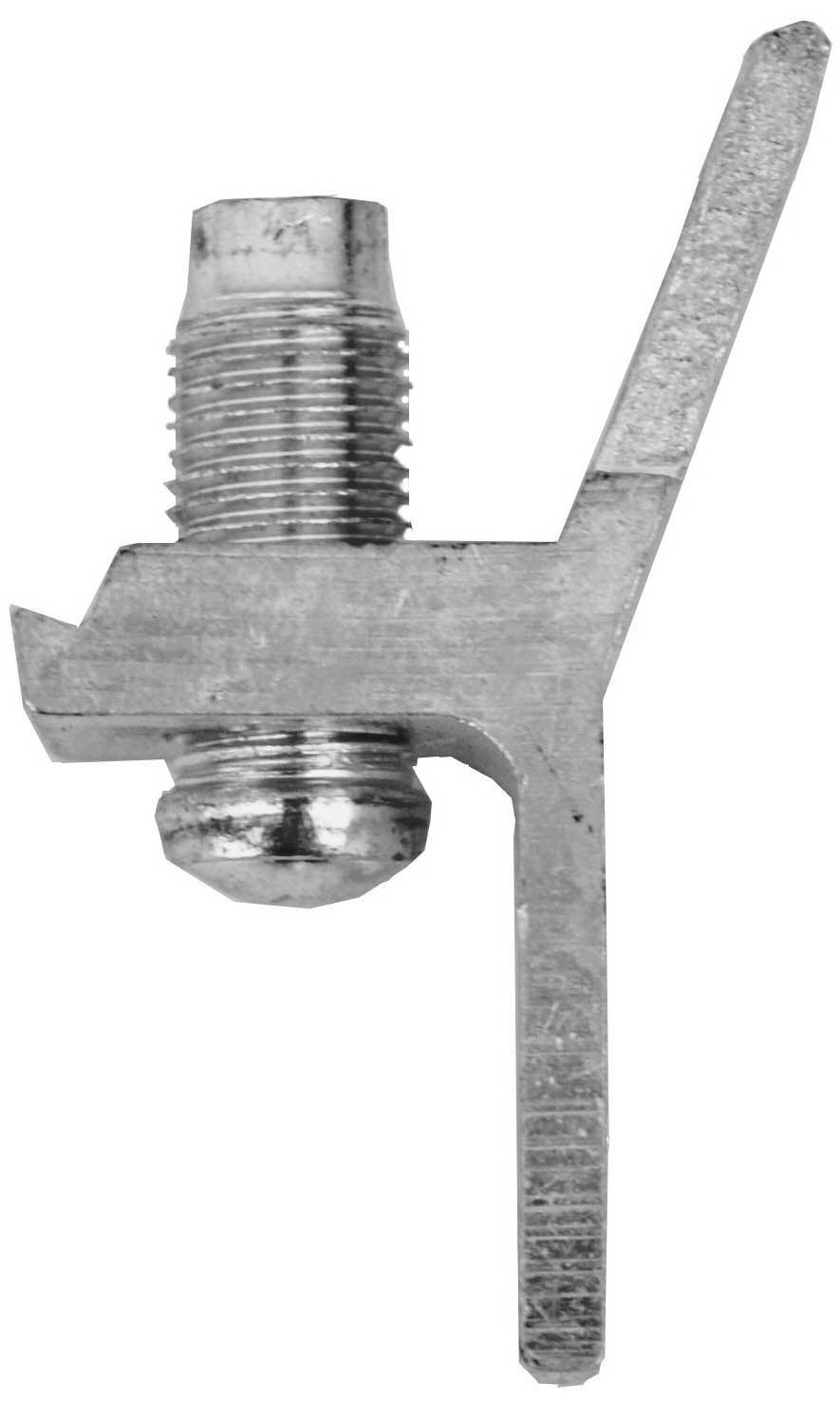

ARP00777

125 Amp
2/0
Horn Bypass Cap Assembly
Button
Small Hub Cover Plate ARP00002

Small Hubs For
3-5/16"x 3-5/16" Opening
Button

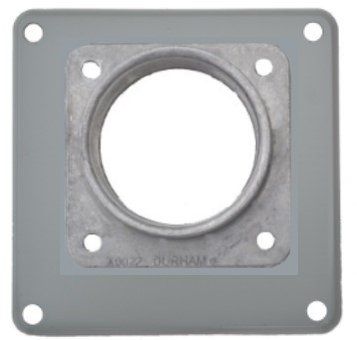

Large Hub Cover Plate ARP00016

Large Hubs
For 5"x 5" Opening
Button
1" Small Hub ARP00003

Small Hubs For
3-5/16"x 3-5/16" Opening
Button

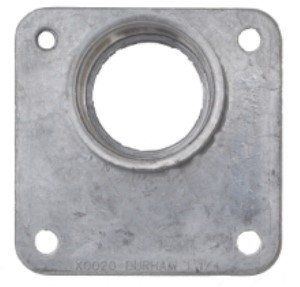

1-1/4" Small Hub

Small Hubs For
3-5/16"x 3-5/16" Opening
Button
1-1/2" Small Hub ARP00005

Small Hubs For
3-5/16"x 3-5/16" Opening
Button
2" Small Hub ARP00006

Small Hubs For
3-5/16"x 3-5/16" Opening
Button
2-1/2" Small Hub ARP00007

Small Hubs For
3-5/16"x 3-5/16" Opening
Button

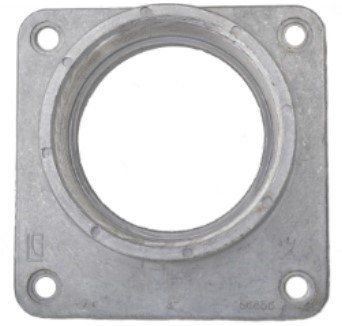

3" Large Hub ARP00019

Large Hubs
For 5"x 5" Opening
Button

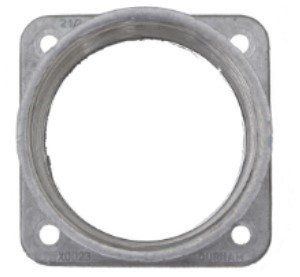

3-1/2" Large Hub ARP00020

Large Hubs
For 5"x 5" Opening
Button

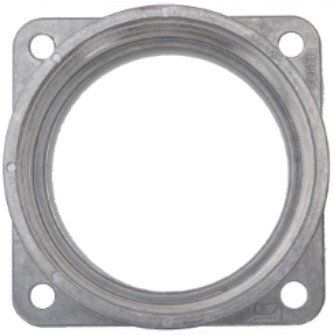

4" Large Hub ARP00021

Large Hubs
For 5"x 5" Opening
Button

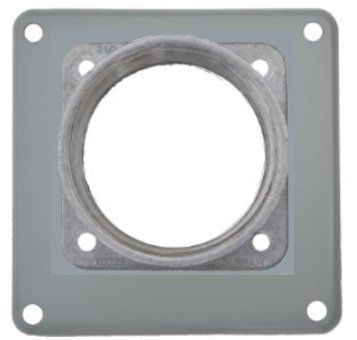

ARP00017

2" Large Hub
(Small 2" Hub &
Large Hub
Adapter Plate)
Button
2-1/2" Large Hub ARP00018

2-1/2" Large Hub
(Small 2-1/2" Hub
& Large Hub Adapter Plate)
Button

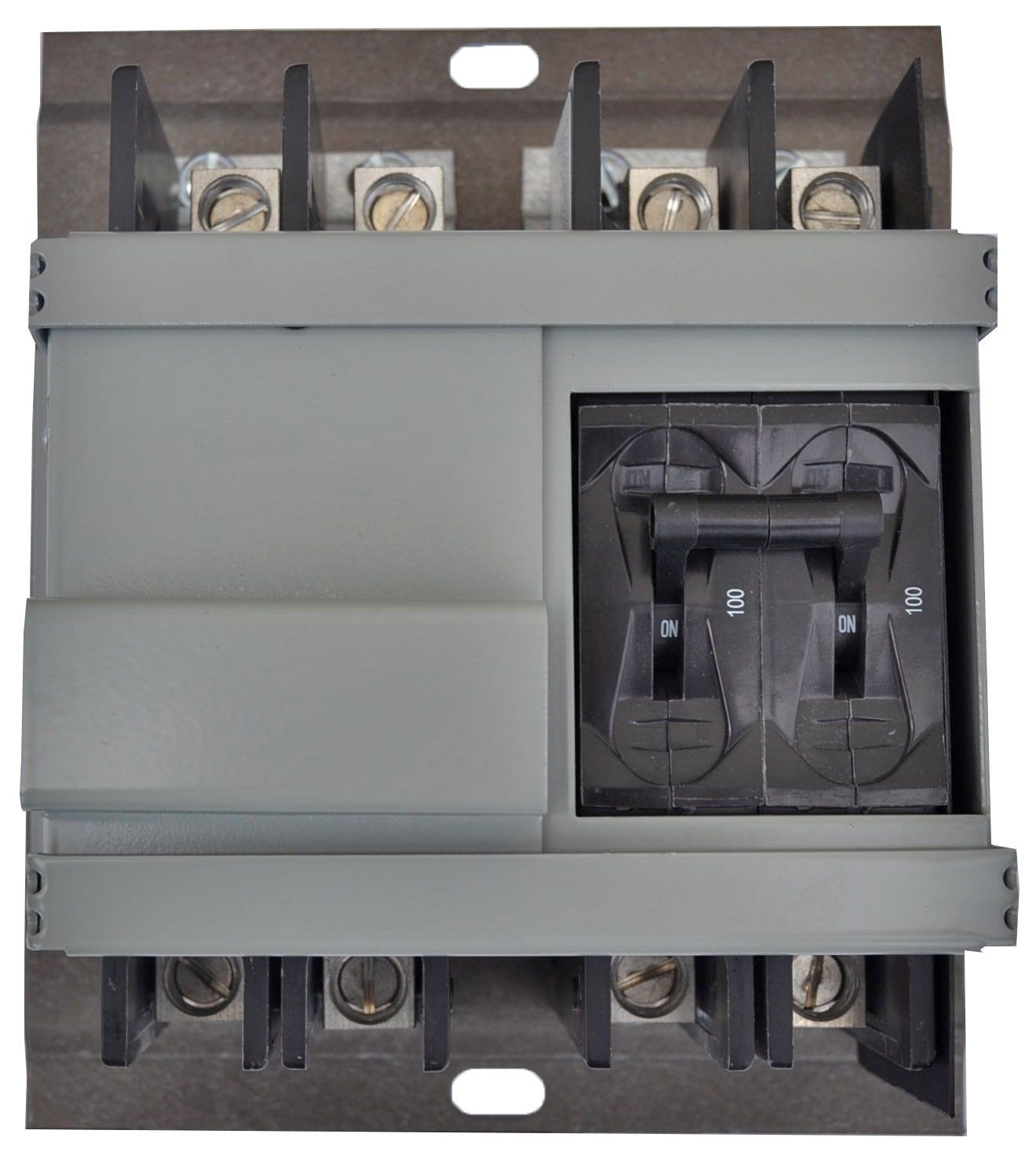

ARP00986

200 Amp Main/100 Amp 2-Pole Hydraulic Auxiliary Breaker For B204, SB204, 1009883 & 1009556
Button

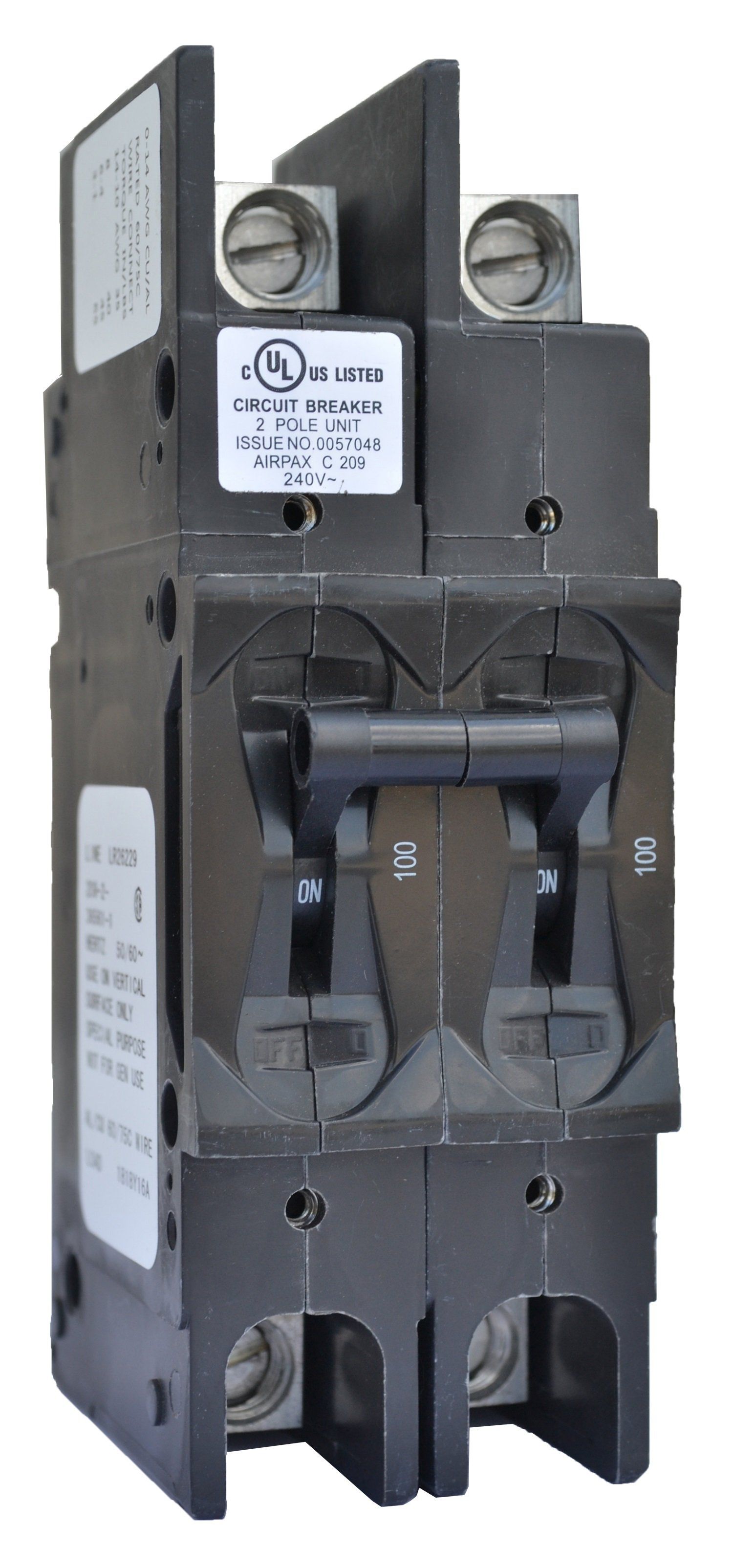

ARP00138

100 Amp 2-Pole Bolt-In Hydraulic Main Breaker
Button

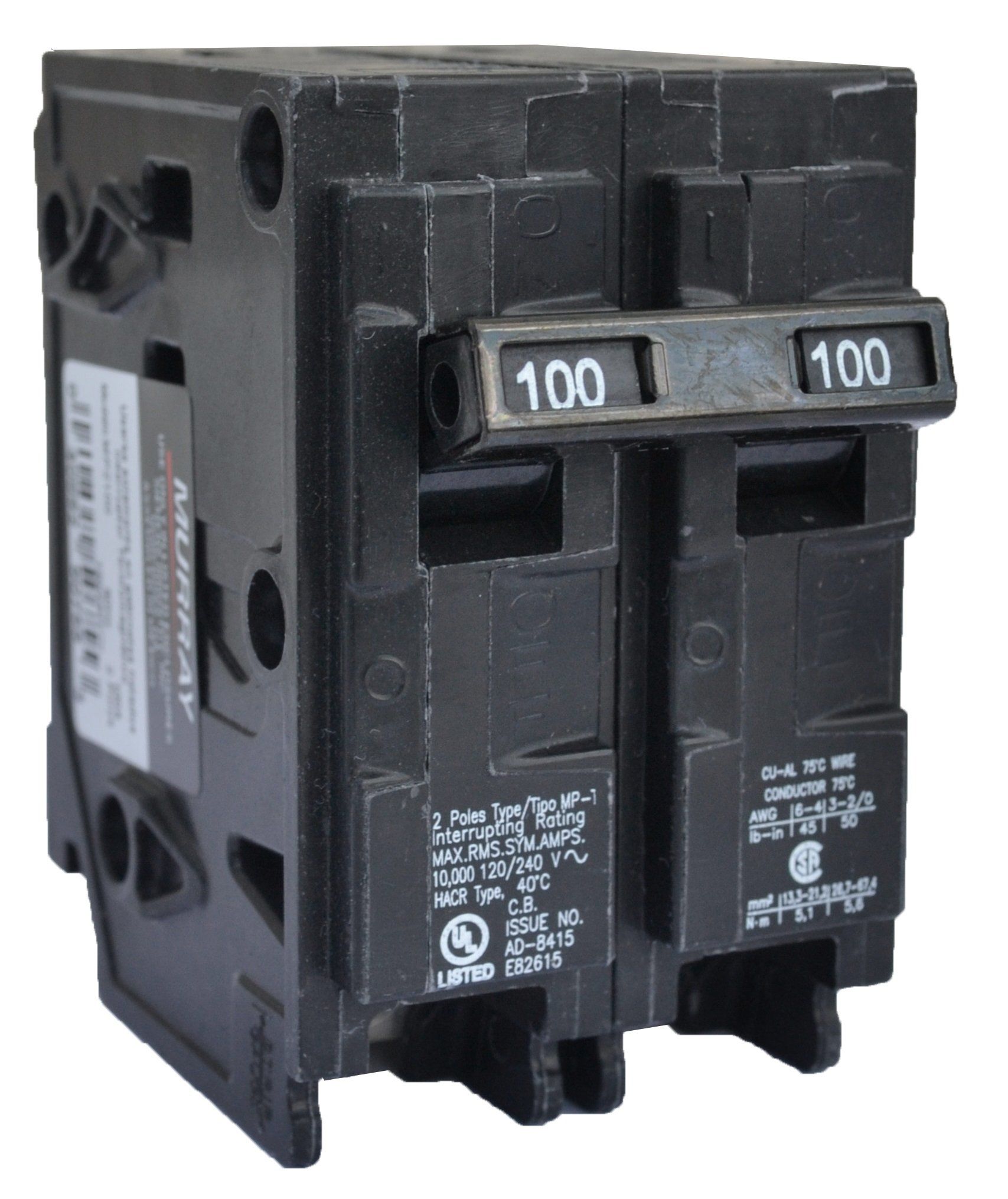

ARP00152

100 Amp 2-Pole Plug-In Main Breaker
Button

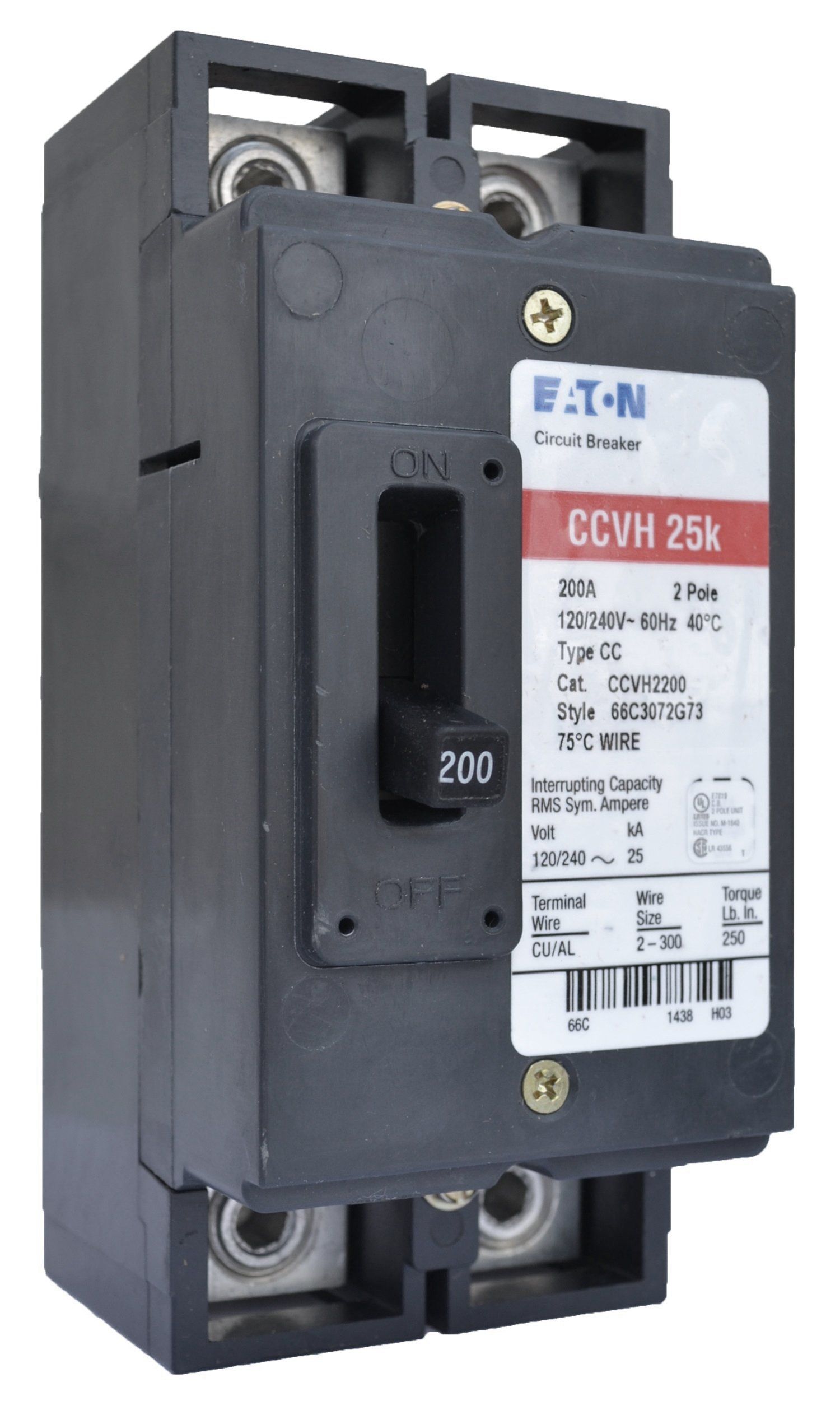

ARP01285

200 Amp 2-Pole Bolt-In Main Breaker With Line/Load Lugs
Button

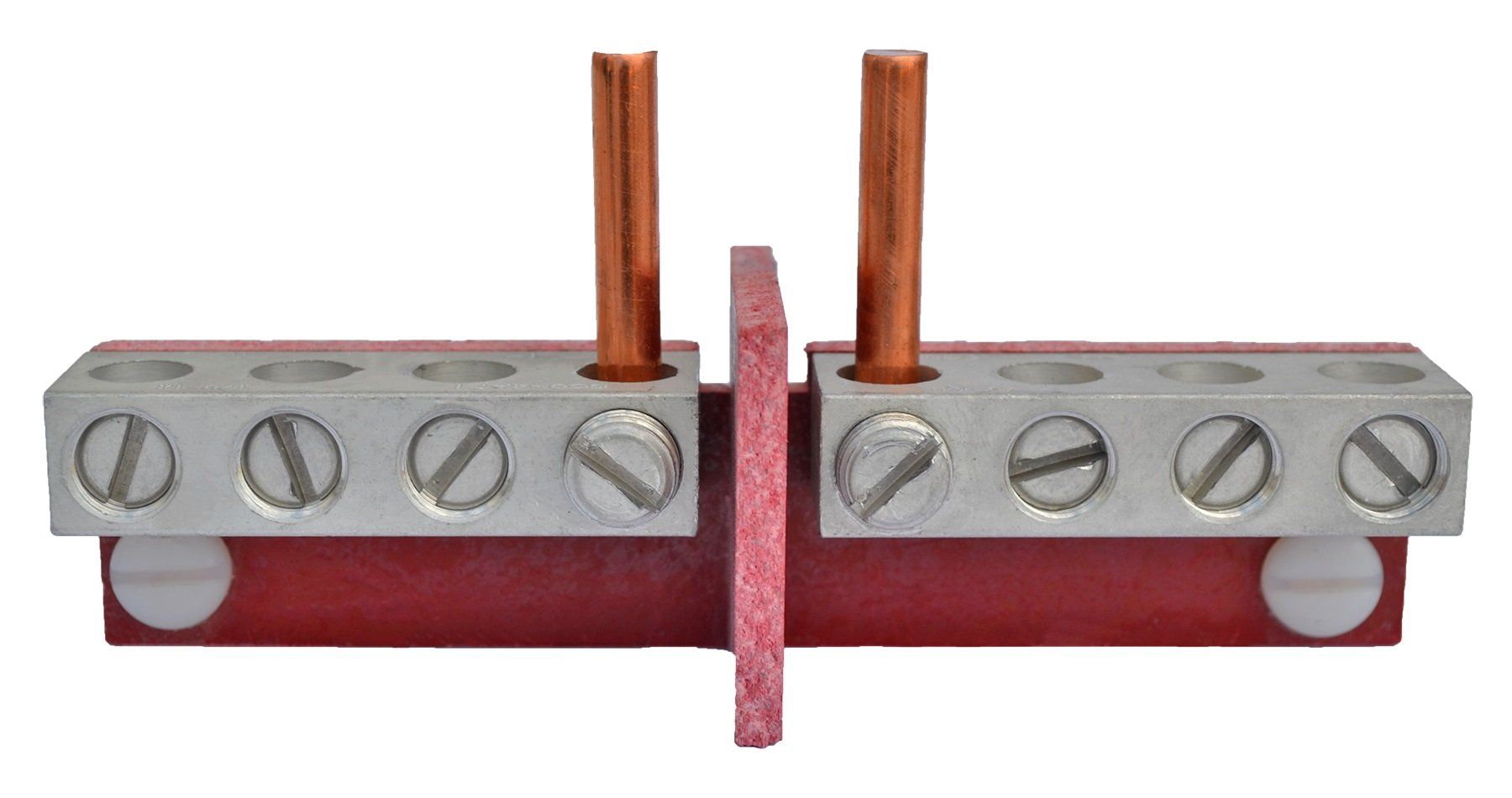

ARP00977
Button

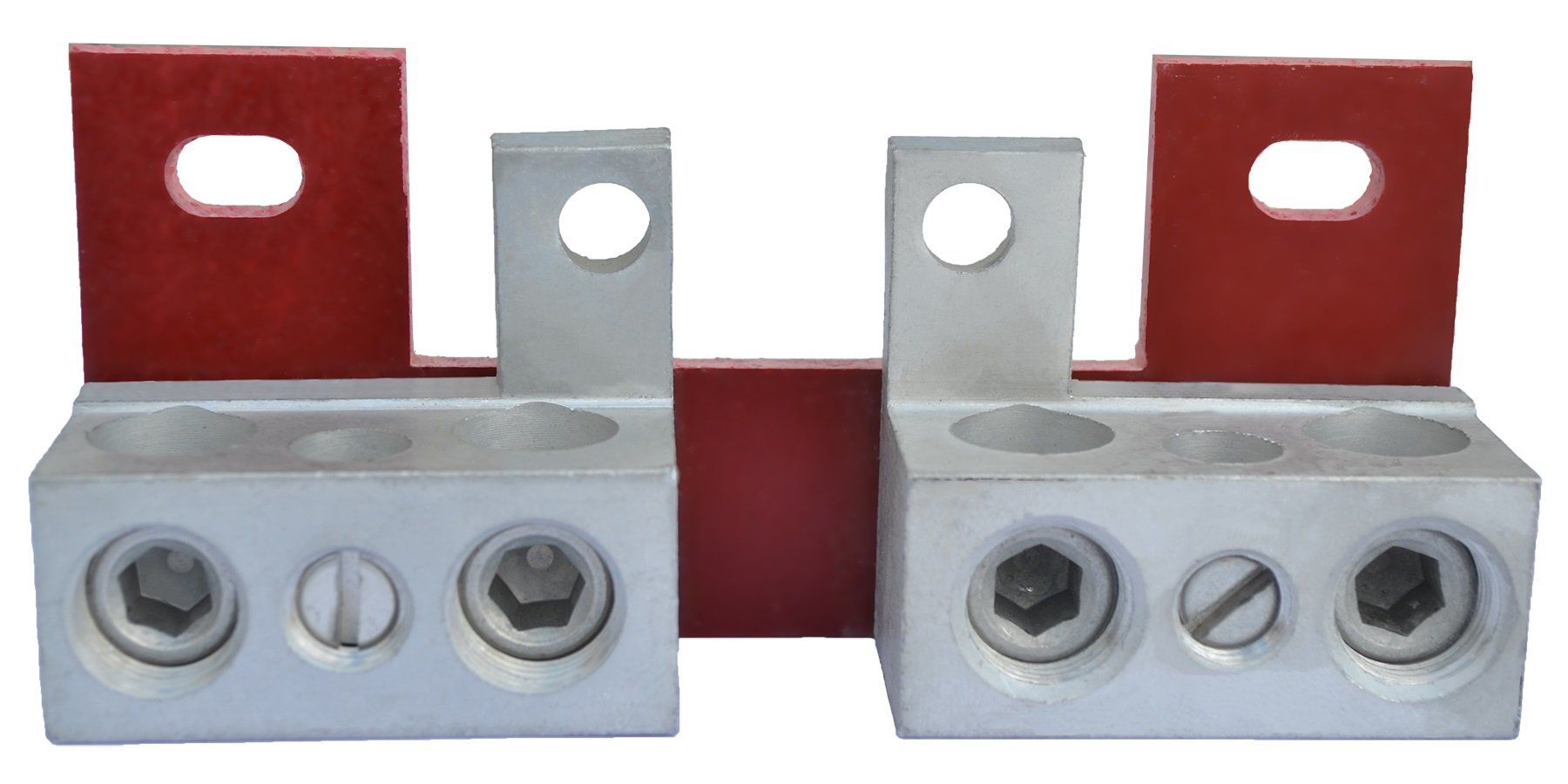

ARP01464

Distribution Load Center Assembly For DC Style Socket Breaker Combo Units - (2) #6-250, (1) #14-2/0
Button
ARP00176

50 Amp Twist Lock
Male Receptacle
Button
ARP00177

50 Amp Twist Lock
Female Receptacle
Button
