Pad Mount Primary Metering Enclosures
Pad Mount Primary Metering Enclosures
APMP Series

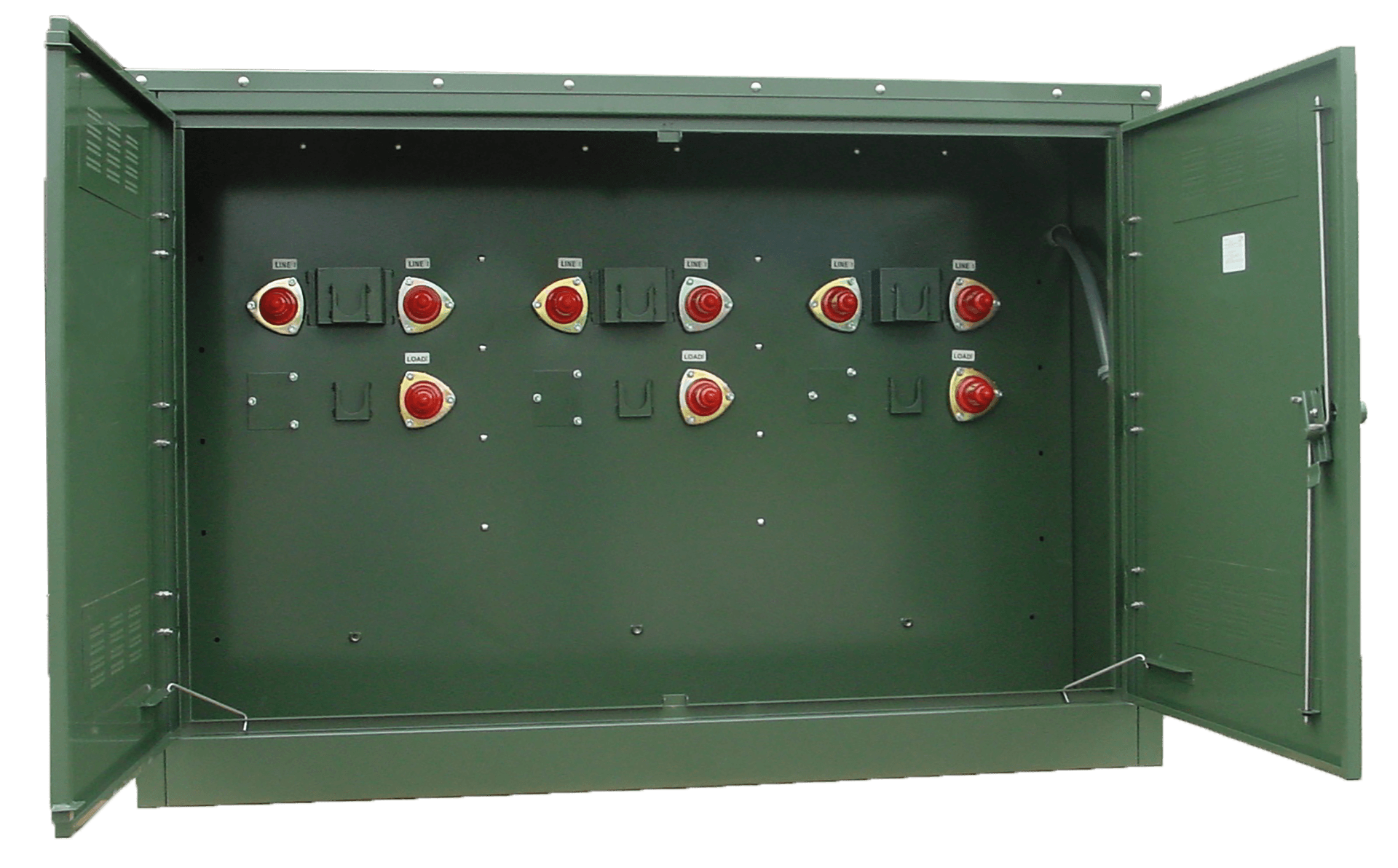

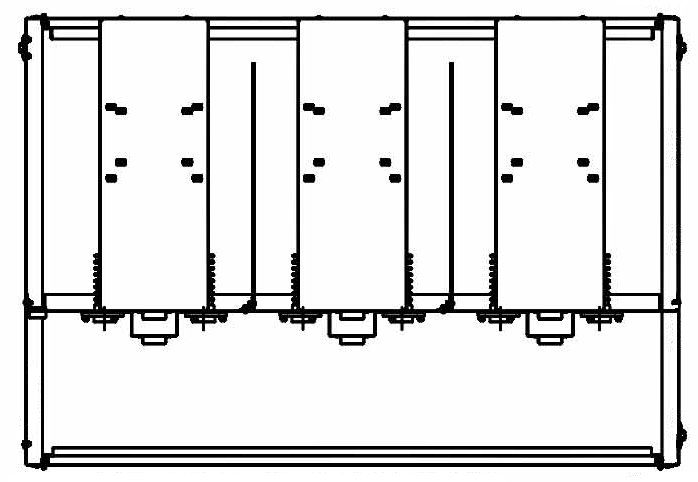

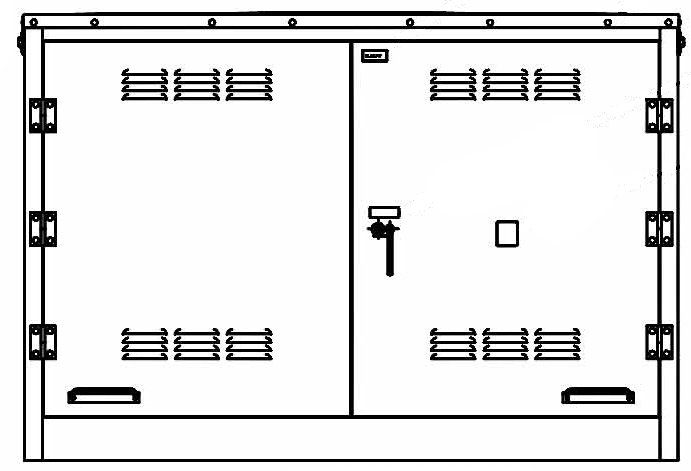

Dead Front | Three Phase | 200 & 600 Ampere | 15/25 KV

  • IEEE C57.12.28.
  • Note: 15 & 25 KV 600 ampere units will not accept a 200 ampere piggy back tap. Request a 22” deep dead front side for 200 ampere piggy back tap.
  • Material: 12 Ga. G-90 galvanized steel.
  • Munsell 7GY 3.29/1.5 “Pad-Mount Green” Ultra Weatherable Powder Polyester Paint.
  • Supplied with 10-pole terminal strip.
  • Provision for (3) 15 KV or 25 KV ABB, Arteche, GE, or Ritz Current Transformers per IEEE C12.11.
  • Provision for (3) 15 KV or 25 KV ABB, Arteche, GE, or Ritz Voltage Transformers per IEEE C12.11.
Three Phase
Catalog Number Phase Amperage Rating Nominal Voltage BIL Rating Line Load Height Width Depth Vaults Fiberglass
APMP3-2-15-11 3 200 15 KV 95 KV 1 1 54 79 54 1012124
APMP3-2-15-12 3 200 15 KV 95 KV 1 2 54 79 54 1012124
APMP3-2-15-21 3 200 15 KV 95 KV 2 1 54 79 54 1012124
APMP3-2-15-22 3 200 15 KV 95 KV 2 2 54 79 54 1012124
APMP3-2-25-11 3 200 25 KV 125 KV 2 2 54 79 54 1012124
APMP3-2-25-12 3 200 25 KV 125 KV 1 2 54 79 54 1012124
APMP3-2-25-21 3 200 25 KV 125 KV 2 1 54 79 54 1012124
APMP3-2-25-22 3 200 25 KV 125 KV 2 2 54 79 54 1012124
APMP3-6-15-11 3 600 15 KV 95 KV 1 1 54 79 54 1012124
APMP3-6-15-12 3 600 15 KV 95 KV 1 2 54 79 54 1012124
APMP3-6-15-21 3 600 15 KV 95 KV 2 1 54 79 54 1012124
APMP3-6-15-22 3 600 15 KV 95 KV 2 2 54 79 54 1012124
APMP3-6-25-11 3 600 25 KV 125 KV 1 1 54 79 54 1012124
APMP3-6-25-12 3 600 25 KV 125 KV 1 2 54 79 54 1012124
APMP3-6-25-21 3 600 25 KV 125 KV 2 1 54 79 54 1012124
APMP3-6-25-22 3 600 25 KV 125 KV 2 2 54 79 54 1012124

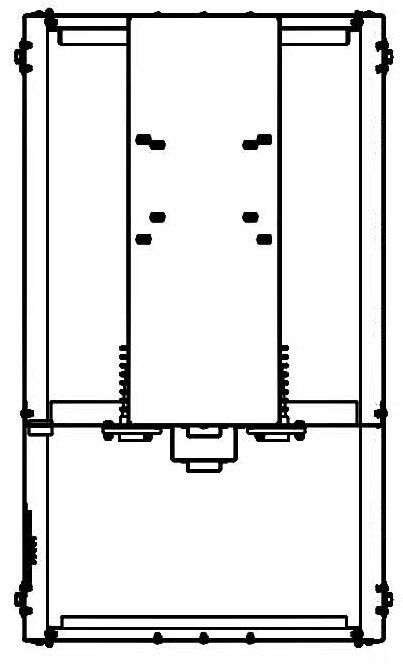

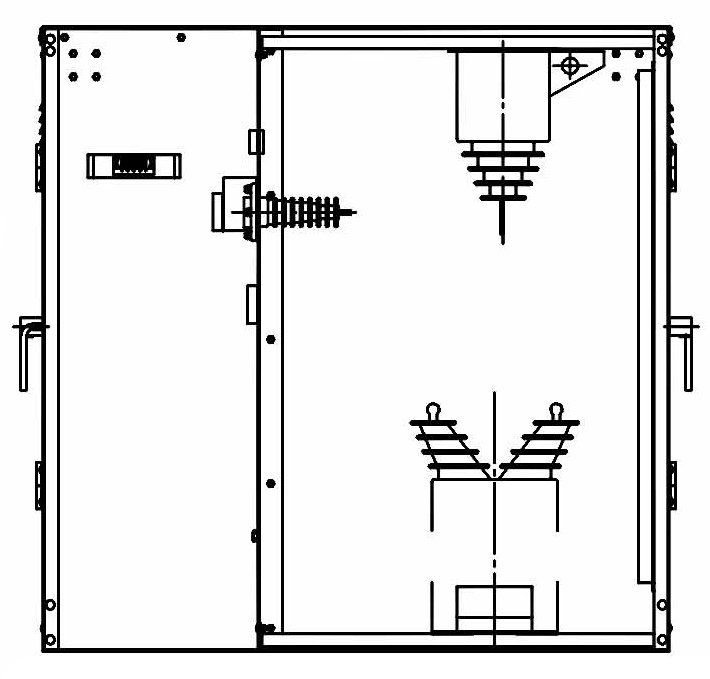

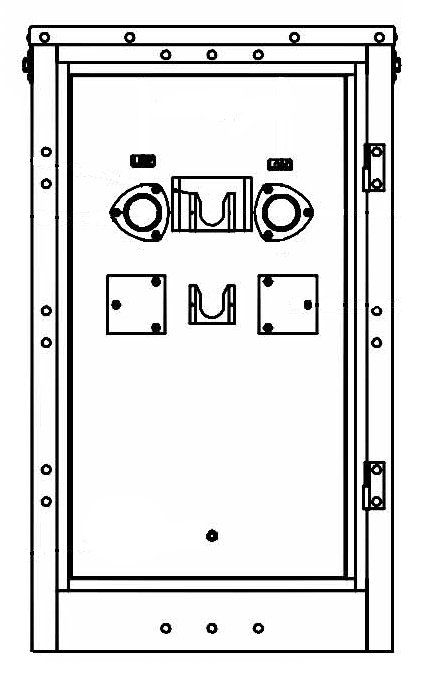

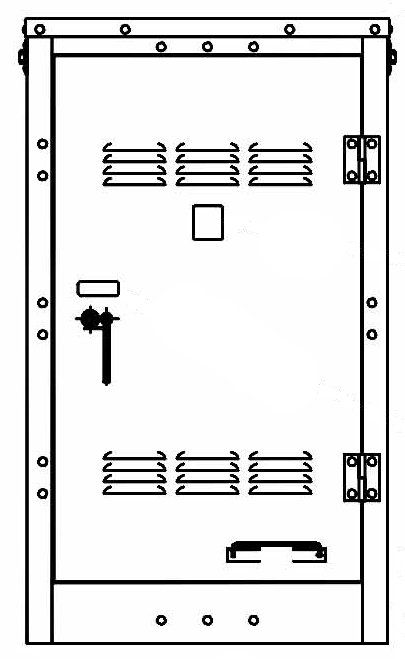

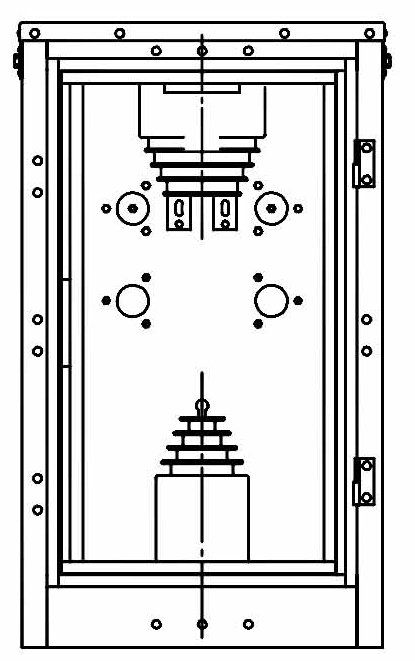

Dead Front | Single Phase | 200 & 600 Ampere | 15/25 KV

  • IEEE C57.12.28.
  • Note: 15 & 25 KV 600 ampere units will not accept a 200 ampere piggy back tap. Request a 22” deep dead front side for 200 ampere piggy back tap.
  • Material: 12 Ga. G-90 galvanized steel.
  • Munsell 7GY 3.29/1.5 “Pad-Mount Green” Ultra Weatherable Powder Polyester Paint.
  • Supplied with 10-pole terminal strip.
  • Provision for (3) 15 KV or 25 KV ABB, Arteche, GE, or Ritz Current Transformers per IEEE C12.11.
  • Provision for (3) 15 KV or 25 KV ABB, Arteche, GE, or Ritz Voltage Transformers per IEEE C12.11.
Single Phase
Catalog Number Phase Amperage Rating Nominal Voltage BIL Rating Line Load Height Width Depth Vaults Fiberglass
APMP1-2-15-11 1 200 15 KV 95 KV 1 1 54 31 54 1010429
APMP1-2-15-12 1 200 15 KV 95 KV 1 2 54 31 54 1010429
APMP1-2-15-21 1 200 15 KV 95 KV 2 1 54 31 54 1010429
APMP1-2-15-22 1 200 15 KV 95 KV 2 2 54 31 54 1010429
APMP1-2-25-11 1 200 25 KV 125 KV 2 2 54 31 54 1010429
APMP1-2-25-12 1 200 25 KV 125 KV 1 2 54 31 54 1010429
APMP1-2-25-21 1 200 25 KV 125 KV 2 1 54 31 54 1010429
APMP1-2-25-22 1 200 25 KV 125 KV 2 2 54 31 54 1010429
APMP1-6-15-11 1 600 15 KV 95 KV 1 1 54 31 54 1010429
APMP1-6-15-12 1 600 15 KV 95 KV 1 2 54 31 54 1010429
APMP1-6-15-21 1 600 15 KV 95 KV 2 1 54 31 54 1010429
APMP1-6-15-22 1 600 15 KV 95 KV 2 2 54 31 54 1010429
APMP1-6-25-11 1 600 25 KV 125 KV 1 1 54 31 54 1010429
APMP1-6-25-12 1 600 25 KV 125 KV 1 2 54 31 54 1010429
APMP1-6-25-21 1 600 25 KV 125 KV 2 1 54 31 54 1010429
APMP1-6-25-22 1 600 25 KV 125 KV 2 2 54 31 54 1010429

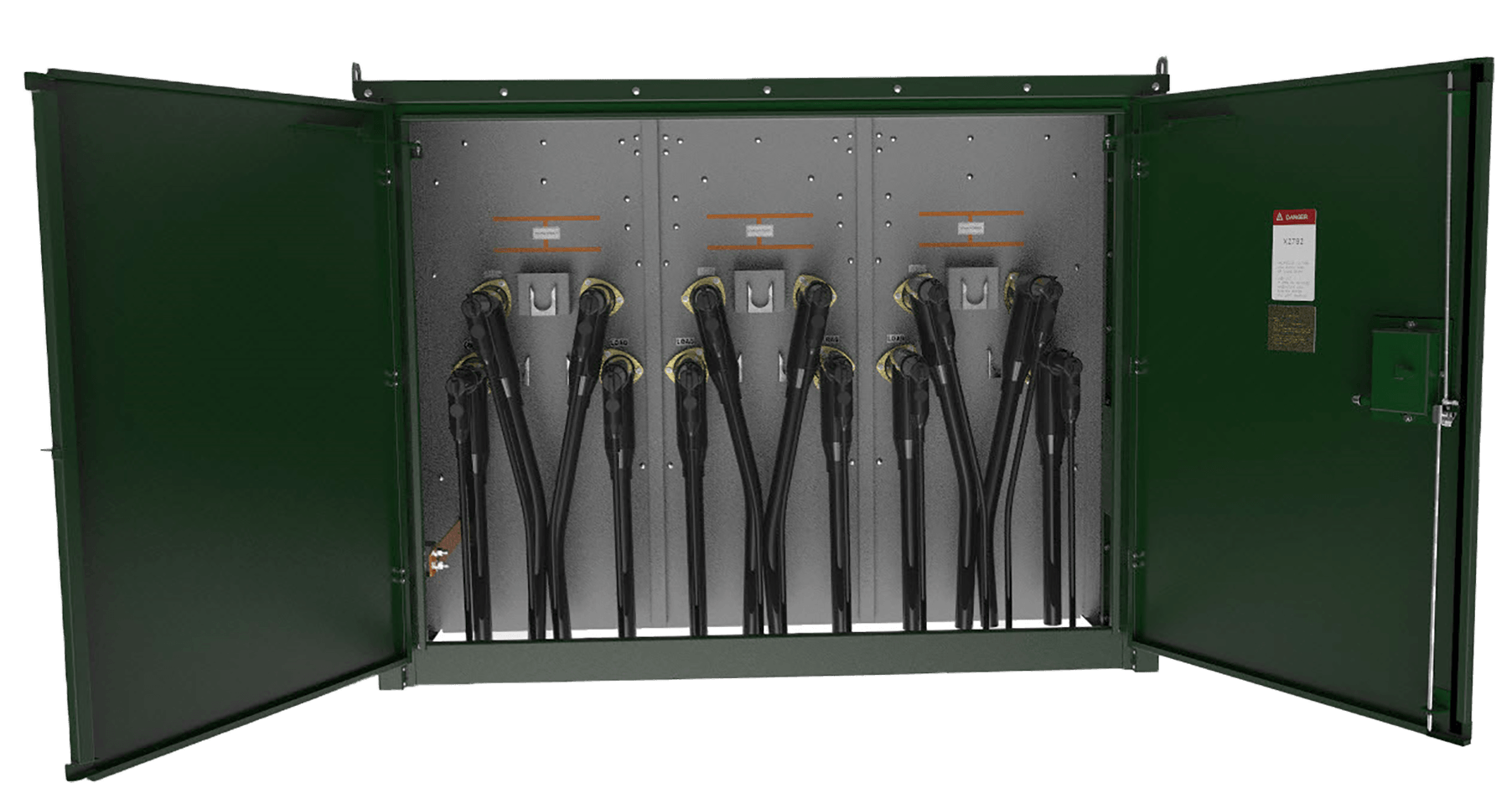

APX Series

Dead Front | Three Phase | 200 & 600 Ampere | 15/25 KV

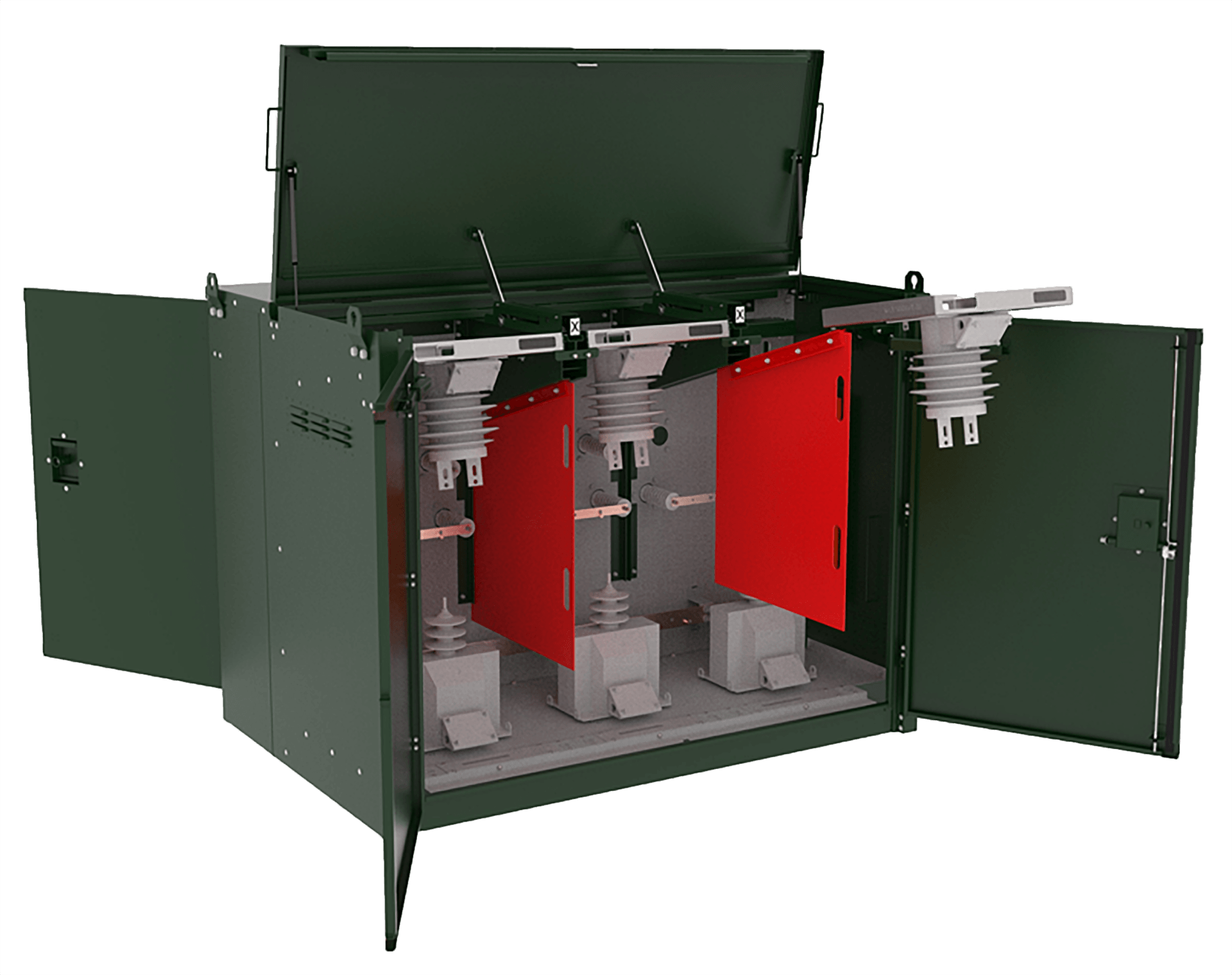

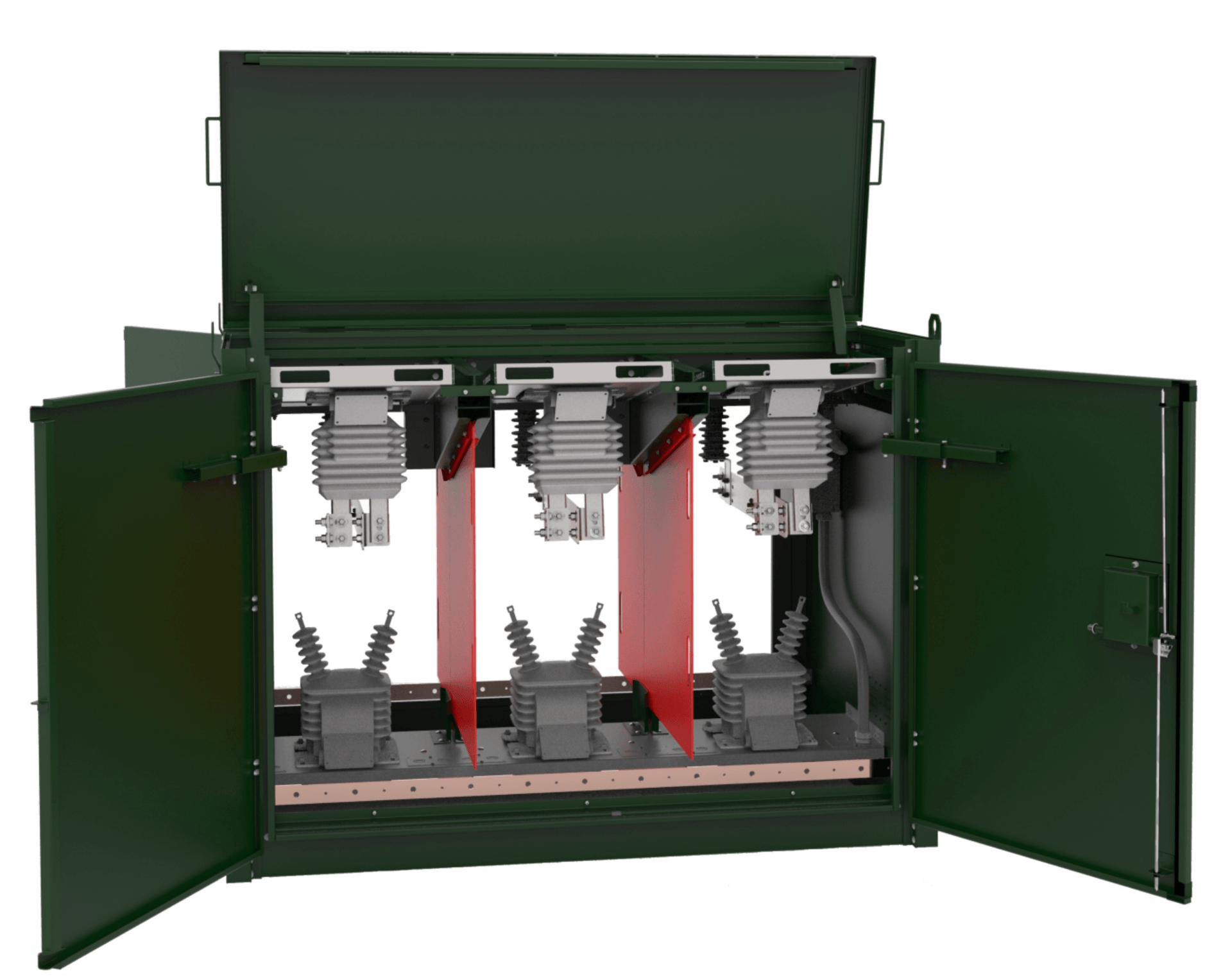

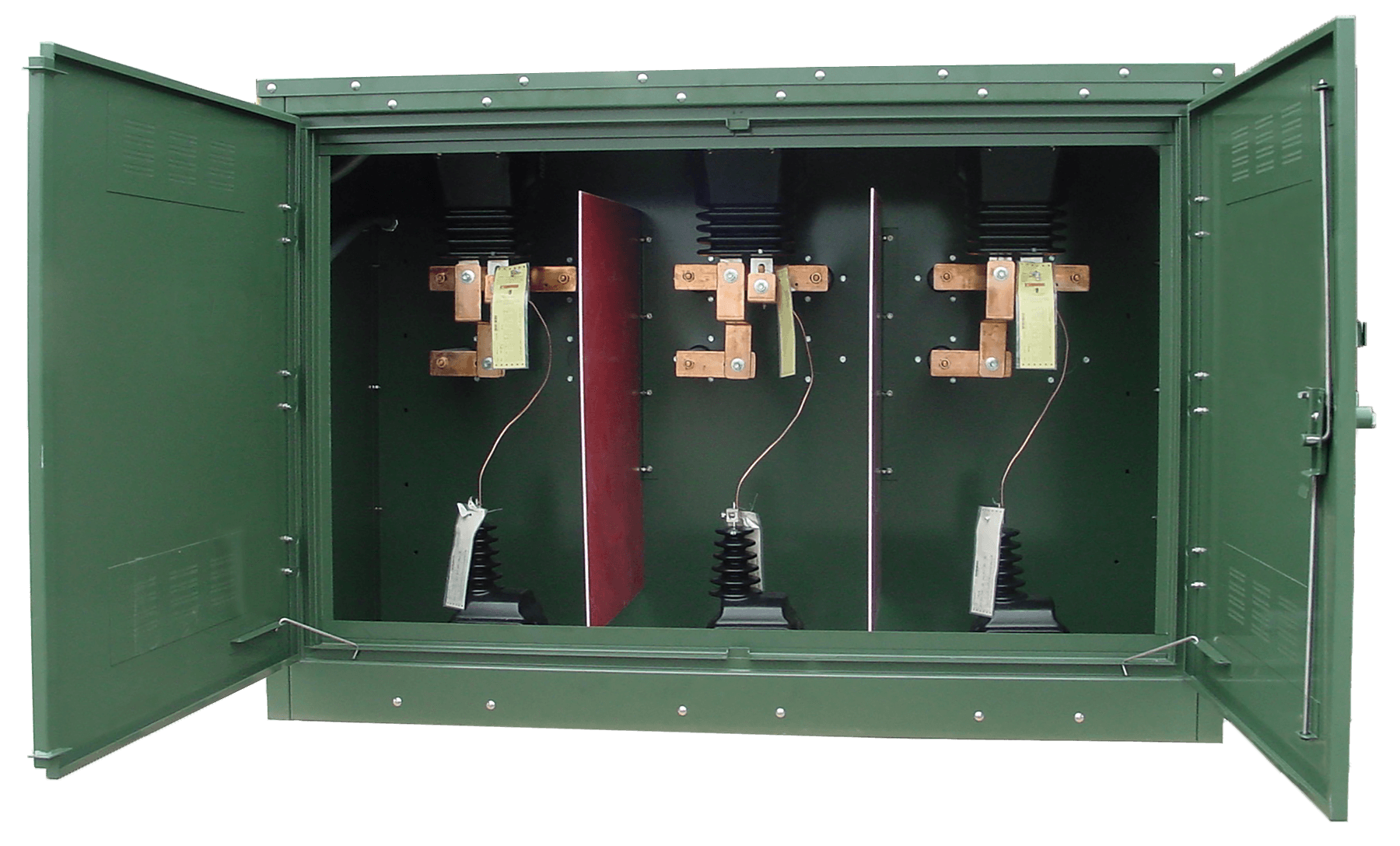

Standard Features:
  • Easy Assist Flip Top Live Front Roof.
  • Lift Out Current Transformer Plates with Hoisting Provisions.
  • CT/VT Wireways with Removable Plates with KO’s.
  • 12 Ga. G-90 Galvanized Steel.
  • Ground Bus.
  • NEMA 260 Warning/Danger Labels.
  • Aluminum Nameplates.
  • GPO-3 Safety Door Barriers.
  • 22” Dead Front Side.
  • Munsell 7GY 3.29/1.5 “Pad-Mount Green” Ultra Weatherable
  • Powder Polyester Paint.
  • Stainless Steel External Hardware.
  • Removable Stainless Steel Lifting Plates.
  • Offset Bushing Arrangement.
  • Easy Slide off Removable Phase Barriers.
Optional Features:
  • Fiberglass Ground Sleeve Vault - Catalog #1012124.
  • 304 or 316 Stainless Steel.
  • Meter Socket and Test Switch Installed.
  • Factory Installed Transformers.
  • Secondary Wiring Installed.
  • ANSI Z535 Hazard Labels (Replaces MR. OUCH).
  • ANTI-Condensation Coating.
  • Inserts Installed in 200 Amp Wells.
  • Clear Door Barriers.
  • Customer Color Match Powder Coat.
  • Special Wiring Color Codes.
  • Copper Adjustable Bus for Transformers
  • Removable Stainless Steel Lifting Plates
APX  - Patent pending on Easy Assist Flip Top Roof
