Meter Sockets - Transformer Rated

20 Ampere |5 & 6 Jaw | Ring & Ringless Style | 600 VAC

  • Ring style units supplied with a snap type sealing ring.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configurations
Catalog Number Jaws Hub Auto Circuit Closing Non Circuit Closing Height" Width" Depth"

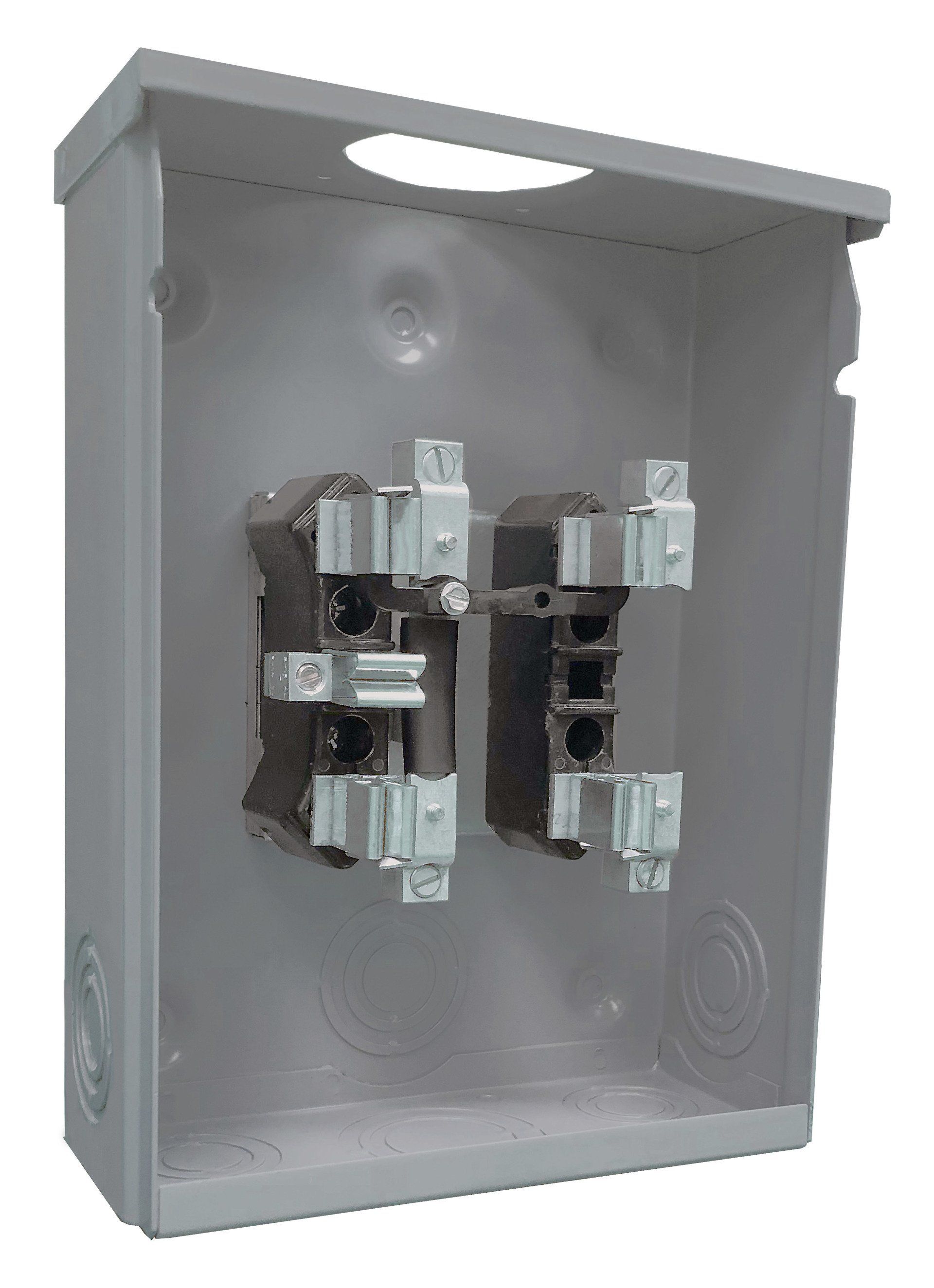

R6851-5A 5 Solid Yes - 10-7/8 8 3-1/2

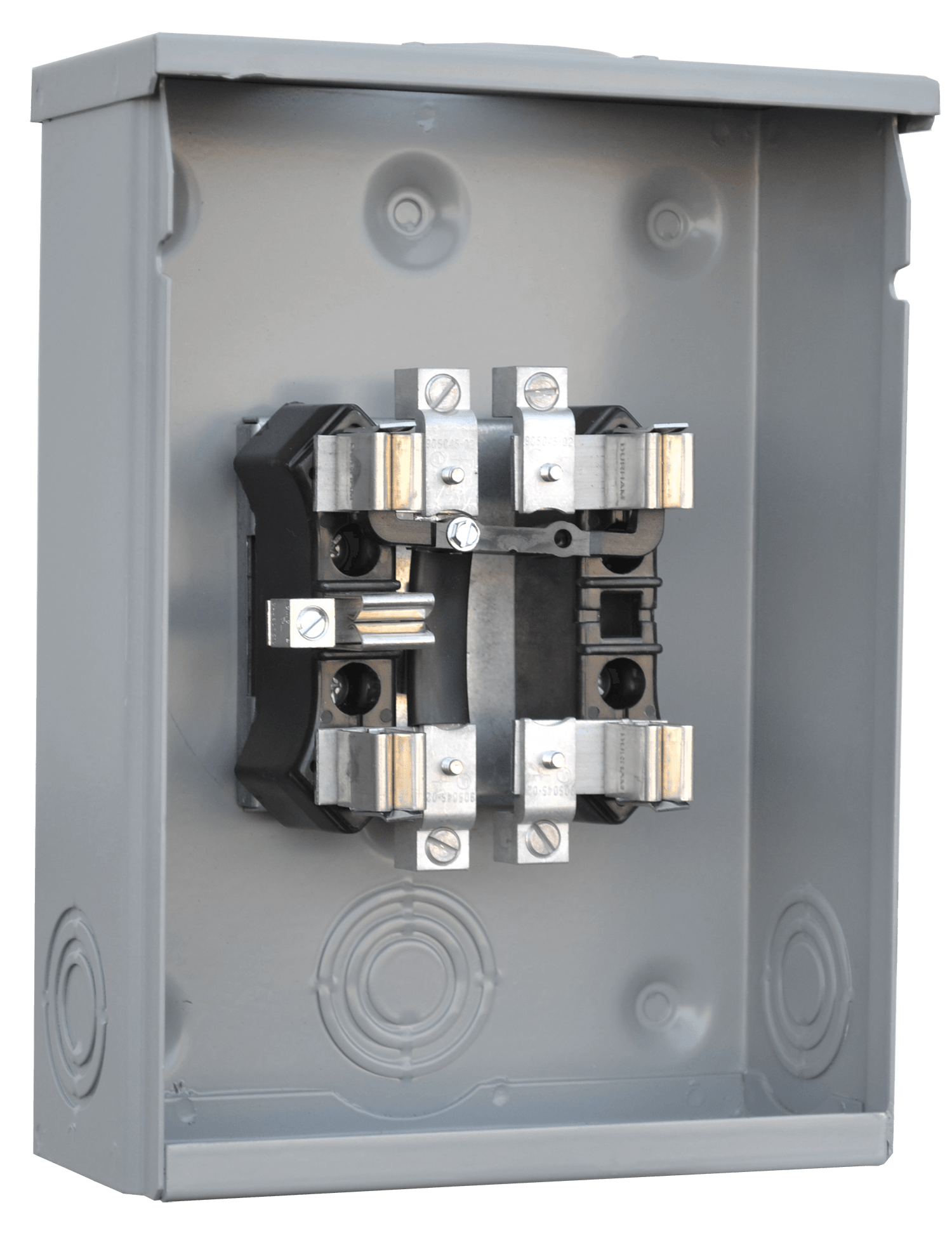

R6851-5B 5 HO Yes - 10-7/8 8 3-1/2
R6851-5C 5 HCP Yes - 10-7/8 8 3-1/2
R6851-5K 5 1" Hub Yes - 10-7/8 8 3-1/2
R6851-5L 5 1-1/4" Hub Yes - 10-7/8 8 3-1/2
R6851-5N-B 5 HO - Yes 10-7/8 8 3-1/2
R6851-5N-C 5 HCP - Yes 10-7/8 8 3-1/2
R6851-5N-K 5 1" Hub - Yes 10-7/8 8 3-1/2
R6851-6-A 6 Solid Yes - 10-7/8 8 3-1/2
R6851-6-B 6 HO Yes - 10-7/8 8 3-1/2
R6851-6-C 6 HCP Yes - 10-7/8 8 3-1/2
R6851-6-K 6 1" Hub Yes - 10-7/8 8 3-1/2
R6851-6-L 6 1-1/4" Hub Yes - 10-7/8 8 3-1/2
R6851-6N-A 6 Solid - Yes 10-7/8 8 3-1/2
R6851-6N-B 6 HO - Yes 10-7/8 8 3-1/2
R6851-6N-K 6 1" Hub - Yes 10-7/8 8 3-1/2
R6851-6N-L 6 1/1/4" Hub - Yes 10-7/8 8 3-1/2
6851-5K 5 1" Hub Yes - 10-7/8 8 3-1/2
U6851-6-B 6 HO Yes - 10-7/8 8 3-1/2
U6851-6N-B 6 HO - Yes 10-7/8 8 3-1/2

20 Ampere |5, 6 & 8 Jaw | Provisions For Test Switch | Ring & Ringless Style | 600 VAC

  • Units can be supplied with a Low (L=3/16”), standard (S=13/16”) or high (H=1-3/8”) test switch bridge.
  • *Note test switch covers will only fit units with the low test switch bridge.
  • Units supplied with (2) CU-AL ground connectors.
  • Retained screws available for the 2-piece covers.
  • Lever Bypass CT shorting block available.
  • NEMA 3R enclosures, UL (Underwriters Laboratories) label available. Add prefix U for UL label.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation
Steel Aluminum Jaws Hub 1 Piece Cover 2 Piece Cover Test Switch Bridge Height Height" Width" Depth"
STL5-2K ASTL5-2K 5 1" Hub - Yes * Low 3/16" 20 12 4-23/64
STS5-1B ASTS5-1B 5 HO Yes Standard 13/16" 20 12 4-23/64
STS5-1C ASTS5-1C 5 HCP Yes - Standard 13/16" 20 12 4-23/64
STS5-2C ASTS5-2C 5 HCP - Yes Standard 13/16" 20 12 4-23/64
STL6-1K ASTL6-1K 6 1" Hub Yes - * Low 3/16" 20 12 4-23/64
STL6-2A ASTL6-2A 6 Solid - Yes * Low 3/16" 20 12 4-23/64
STL6-2B ASTL6-2B 6 HO - Yes * Low 3/16" 20 12 4-23/64
STL6-2K ASTL6-2K 6 1" Hub - Yes * Low 3/16" 20 12 4-23/64
STS6-1B ASTS6-1B 6 HO Yes - Standard 13/16" 20 12 4-23/64
STS6-1C ASTS6-1C 6 HCP Yes - Standard 13/16" 20 12 4-23/64
STS6-1K ASTS6-1K 6 1" Hub Yes - Standard 13/16" 20 12 4-23/64
STS6-2B ASTS6-2B 6 HO - Yes Standard 13/16" 20 12 4-23/64
STS6-2C ASTS6-2C 6 HCP - Yes Standard 13/16" 20 12 4-23/64
STH6-2B ASTH6-2B 6 HO - Yes High 1-3/8" 20 12 4-23/64
STL8-1K ASTL8-1K 8 1" Hub Yes - * Low 3/16" 20 12 4-23/64
STL8-2C ASTL8-2C 8 HCP - Yes * Low 3/16" 20 12 4-23/64
STL8-2K ASTL8-2K 8 1" Hub - Yes * Low 3/16" 20 12 4-23/64
STL8-2L ASTL8-2L 8 1-1/4" Hub - Yes * Low 3/16" 20 12 4-23/64
STS8-1B ASTS8-1B 8 HO Yes - Standard 13/16" 20 12 4-23/64
STS8-1C ASTS8-1C 8 HCP Yes - Standard 13/16" 20 12 4-23/64
STS8-1K ASTS8-1K 8 1" Hub Yes - Standard 13/16" 20 12 4-23/64
STS8-1L ASTS8-1L 8 1-1/4" Hub Yes - Standard 13/16" 20 12 4-23/64
STS8-2L ASTS8-2L 8 1-1/4" Hub - Yes Standard 13/16" 20 12 4-23/64
STS8-2B ASTS8-2B 8 HO - Yes Standard 13/16" 20 12 4-23/64
STS8-2C ASTS8-2C 8 HCP - Yes Standard 13/16" 20 12 4-23/64

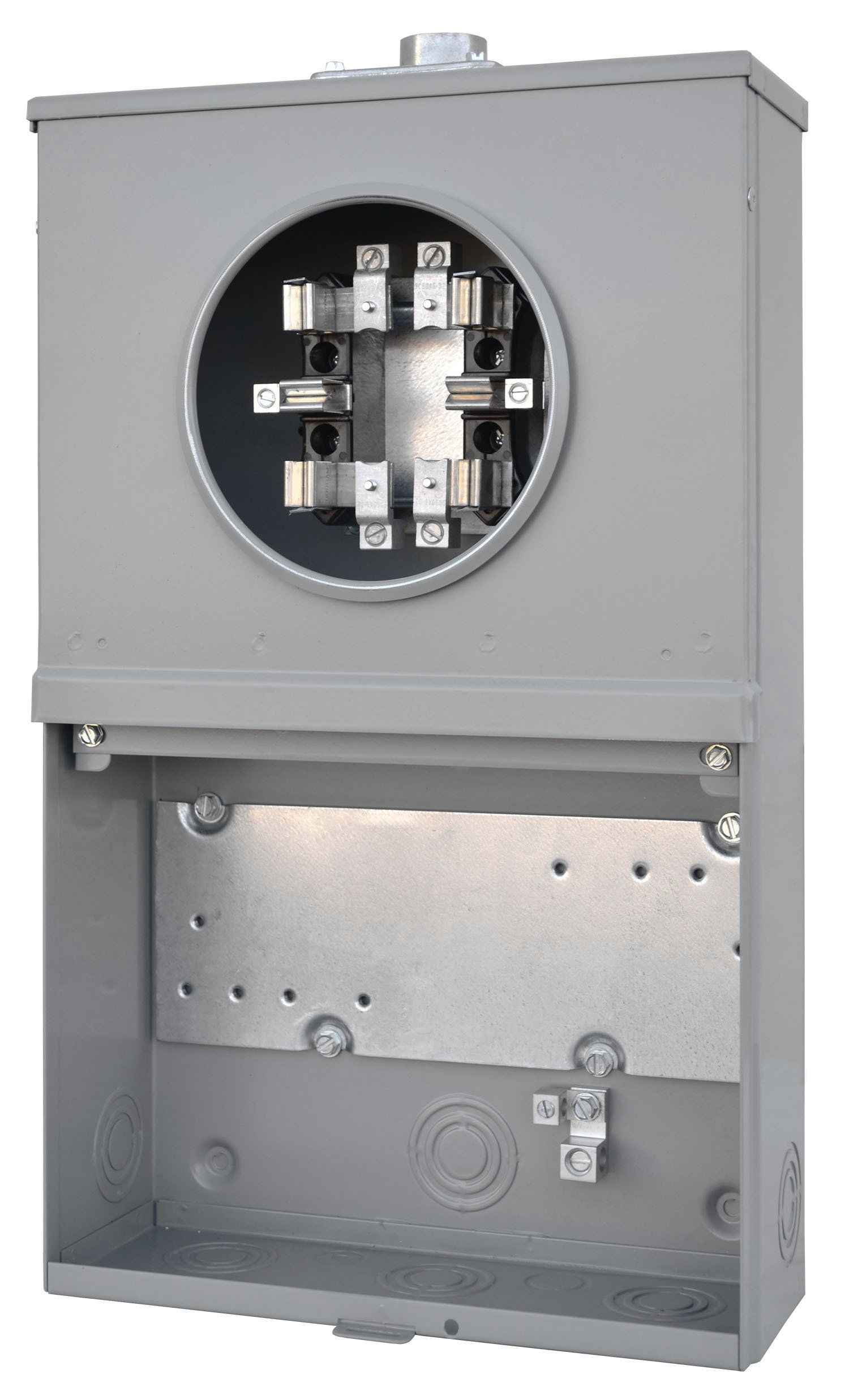

RSTL5-2K ARSTL5-2K 5 1" Hub - Yes * Low 3/16" 20 12 4-23/64
RSTL5-2L ARSTL5-2L 5 1-1/4" Hub - Yes * Low 3/16" 20 12 4-23/64
RSTL6-2K ARSTL6-2K 6 1" Hub - Yes * Low 3/16" 20 12 4-23/64
RSTL8-2K ARSTL8-2K 8 1" Hub - Yes * Low 3/16" 20 12 4-23/64

20 Ampere | 13 Jaw | Provisions For Test Switch | Ring & Ringless Style | 600 VAC

  • Units rated 320 ampere continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessory pages.
Knockout Configuation
Steel Aluminum Jaws Hub 1 Piece Cover 2 Piece Cover Test Switch Bridge Height Height" Width" Depth"
STL13-1A ASTL13-1A 13 Solid Yes - * Low 3/16" 20 12 4-23/64
STL13-1B ASTL13-1B 13 HO Yes - * Low 3/16" 20 12 4-23/64
STL13-1C ASTL13-1C 13 HCP Yes - * Low 3/16" 20 12 4-23/64
STL13-2A ASTL13-2A 13 Solid - Yes * Low 3/16" 20 12 4-23/64
STL13-2C ASTL13-2C 13 HCP - Yes * Low 3/16" 20 12 4-23/64
STL13-2K ASTL13-2K 13 1" Hub - Yes * Low 3/16" 20 12 4-23/64
STL13-2L ASTL13-2L 13 1-1/4" Hub - Yes * Low 3/16" 20 12 4-23/64

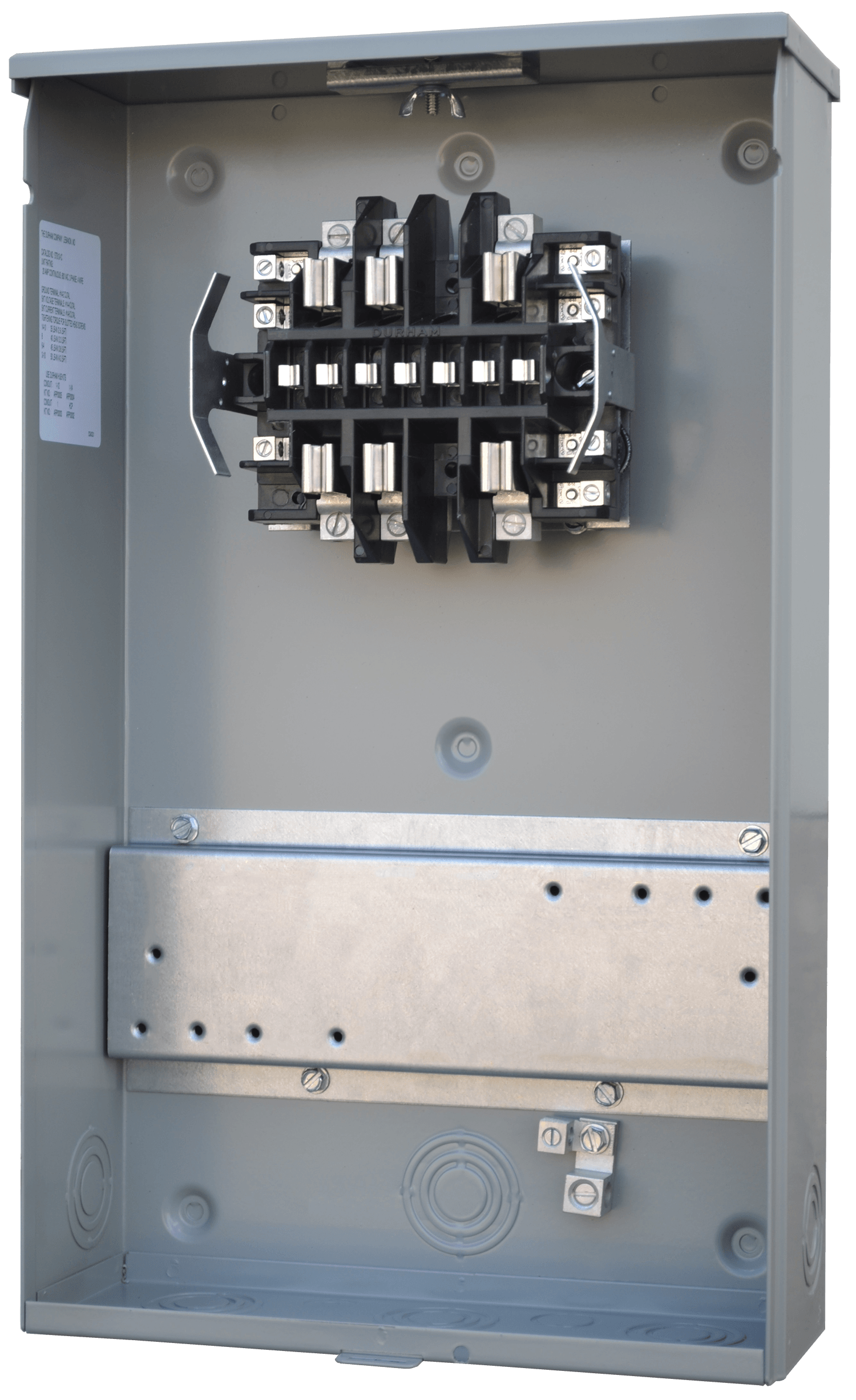

STS13-1A ASTS13-1A 13 Solid Yes - Standard 13/16" 20 12 4-23/64
STS13-1B ASTS13-1B 13 HO Yes - Standard 13/16" 20 12 4-23/64
STS13-1C ASTS13-1C 13 HCP Yes - Standard 13/16" 20 12 4-23/64
STS13-1K ASTS13-1K 13 1" Hub Yes - Standard 13/16" 20 12 4-23/64
STS13-1L ASTS13-1L 13 1-1/4" Hub Yes - Standard 13/16" 20 12 4-23/64
STS13-2A ASTS13-2A 13 Solid - Yes Standard 13/16" 20 12 4-23/64
STS13-2B ASTS13-2B 13 HO - Yes Standard 13/16" 20 12 4-23/64
STS13-2C ASTS13-2C 13 HCP - Yes Standard 13/16" 20 12 4-23/64
STS13-2K ASTS13-2K 13 1” Hub Yes Yes -Standard 13/16” 20 12 4-23/64
STS13-2L ASTS13-2L 13 1-1/4" Hub - Yes Standard 13/16" 20 12 4-23/64
RSTL13-2A ARSTL13-2A 13 Solid - Yes * Low 3/16" 20 12 4-23/64
RSTL13-2K ARSTL13-2K 13 1" Hub - Yes * Low 3/16" 20 12 4-23/64
RSTS13-2A ARSTS13-2A 13 Solid - Yes Standard 13/16" 20 12 4-23/64
RSTS13-2B ARSTS13-2B 13 HO - Yes Standard 13/16" 20 12 4-23/64
RSTS13-2K ARSTS13-2K 13 1" Hub - Yes Standard 13/16" 20 12 4-23/64
RSTS13-2L ARSTS13-2L 13 1-1/4" Hub - Yes Standard 13/16" 20 12 4-23/64
RSTS13-2N ARSTS13-2N 13 2" Hub - Yes Standard 13/16" 20 12 4-23/64

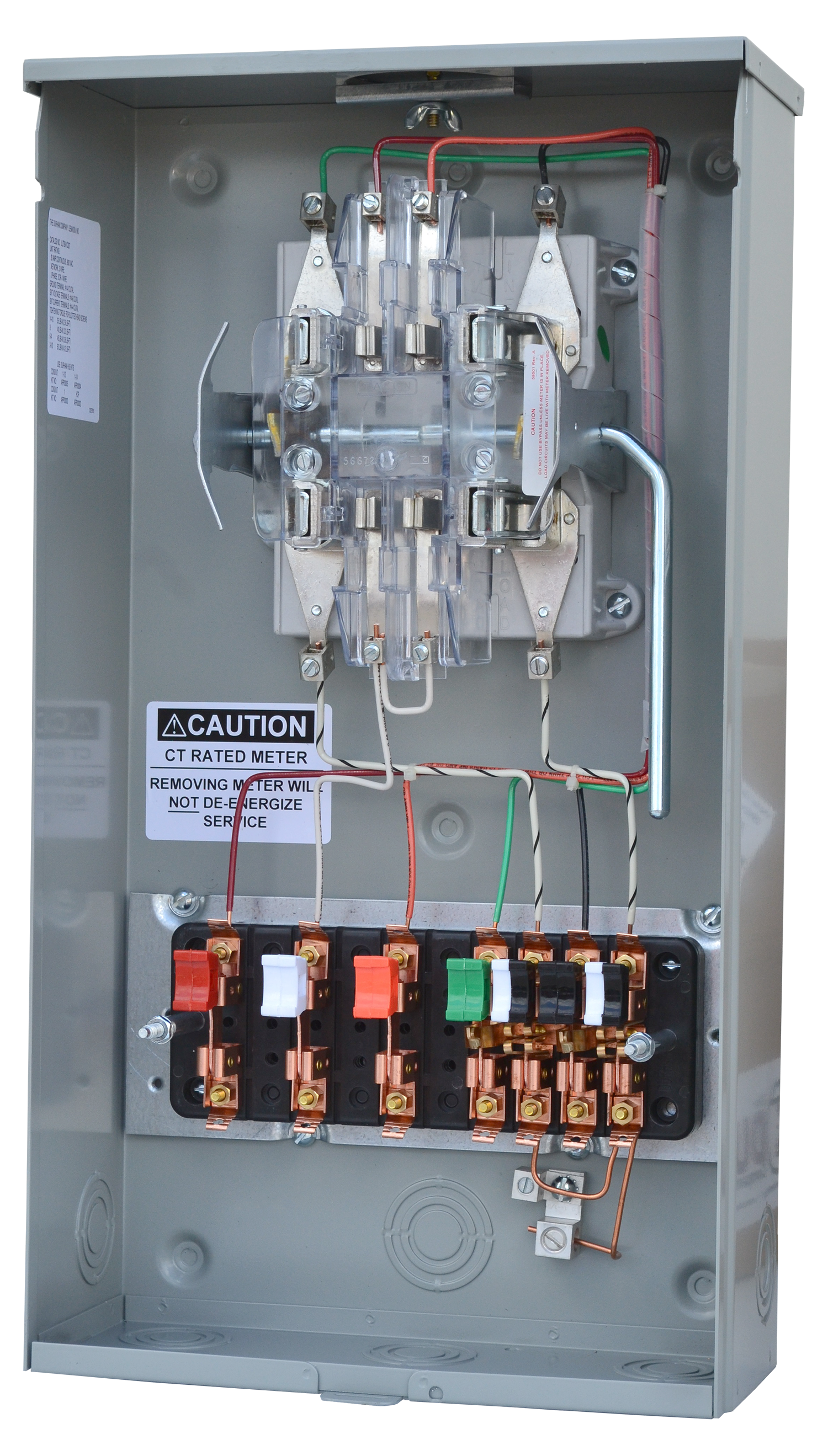

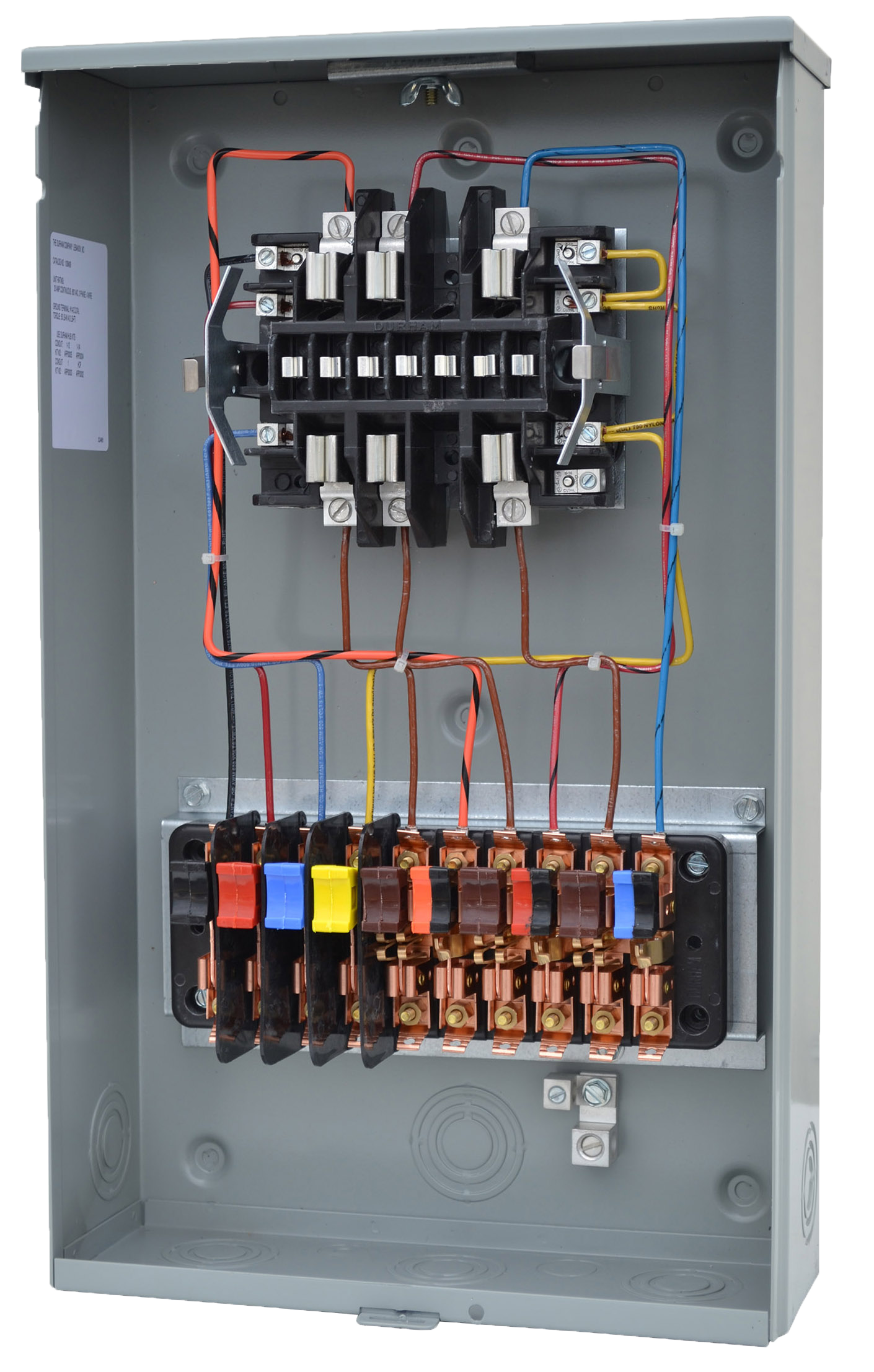

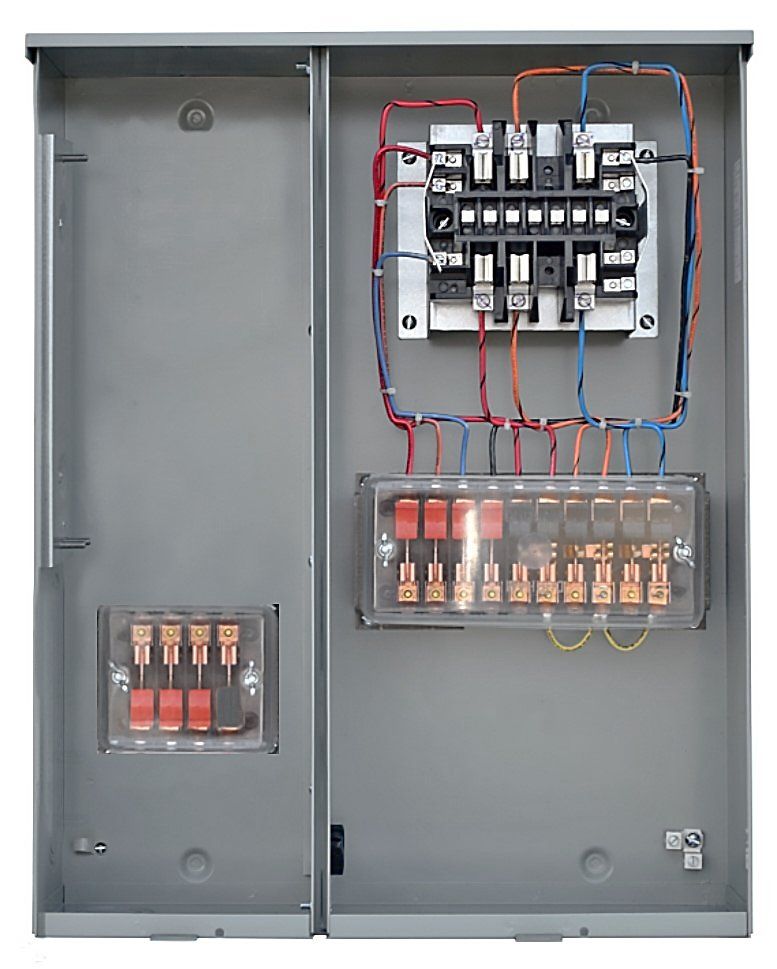

20 Ampere |5, 6, 7, 8, 13 & 15 Jaw | Pre-Wired With Test Switch | Ring & Ringless Style | 600 VAC

  • UL Label, NEMA 3R Enclosures.
  • G−90 Galvanized Steel or Aluminum Enclosures.
  • 1 or 2-Piece Covers, Ring or Ringless Meter Opening.Retained Cover Screws Available for 2-Piece Covers.
  • 1”, 1-1/4”, 1-1/2” Hub, Hub Cover Plate or Solid Top.
  • Test Switch Handle Colors can Match Wire Colors.
  • Split Test Switch Handle Colors can Match Wire Colors with Tracer Colors.

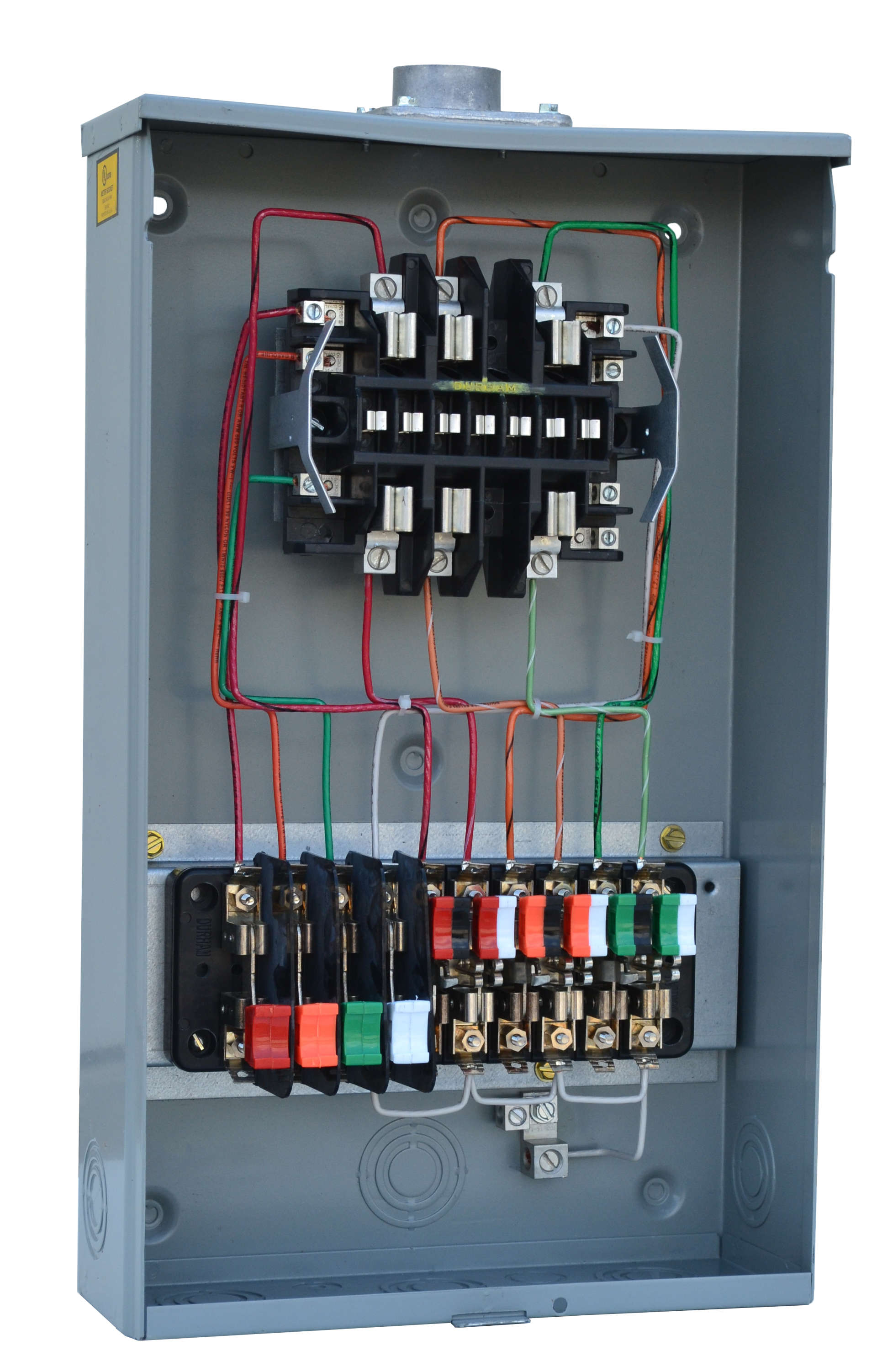

  • Reverse Test Switch Voltage Switches Available for Safety.
  • Test Switch Box Connectors Available.

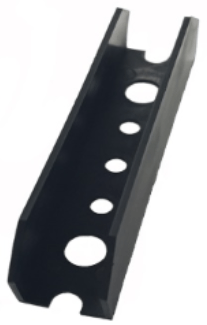

  • Standard Snap-In Test Switch Barriers or Bolt-In Channel Barriers.
  • Pre-Wired Sockets Using #12 or #10 Stranded or Solid Wire.
  • Standard Copper or Plated Test Switches.
  • Order with Clear Lexan Cover, Black Lexan Cover or without Cover.
  • Standard 13/16”, Low 3/16” or High 1-3/8” Test Switch Bridge.
  • *Please see Socket Selector on page 45 to submit a quote.
Knockout Configuation

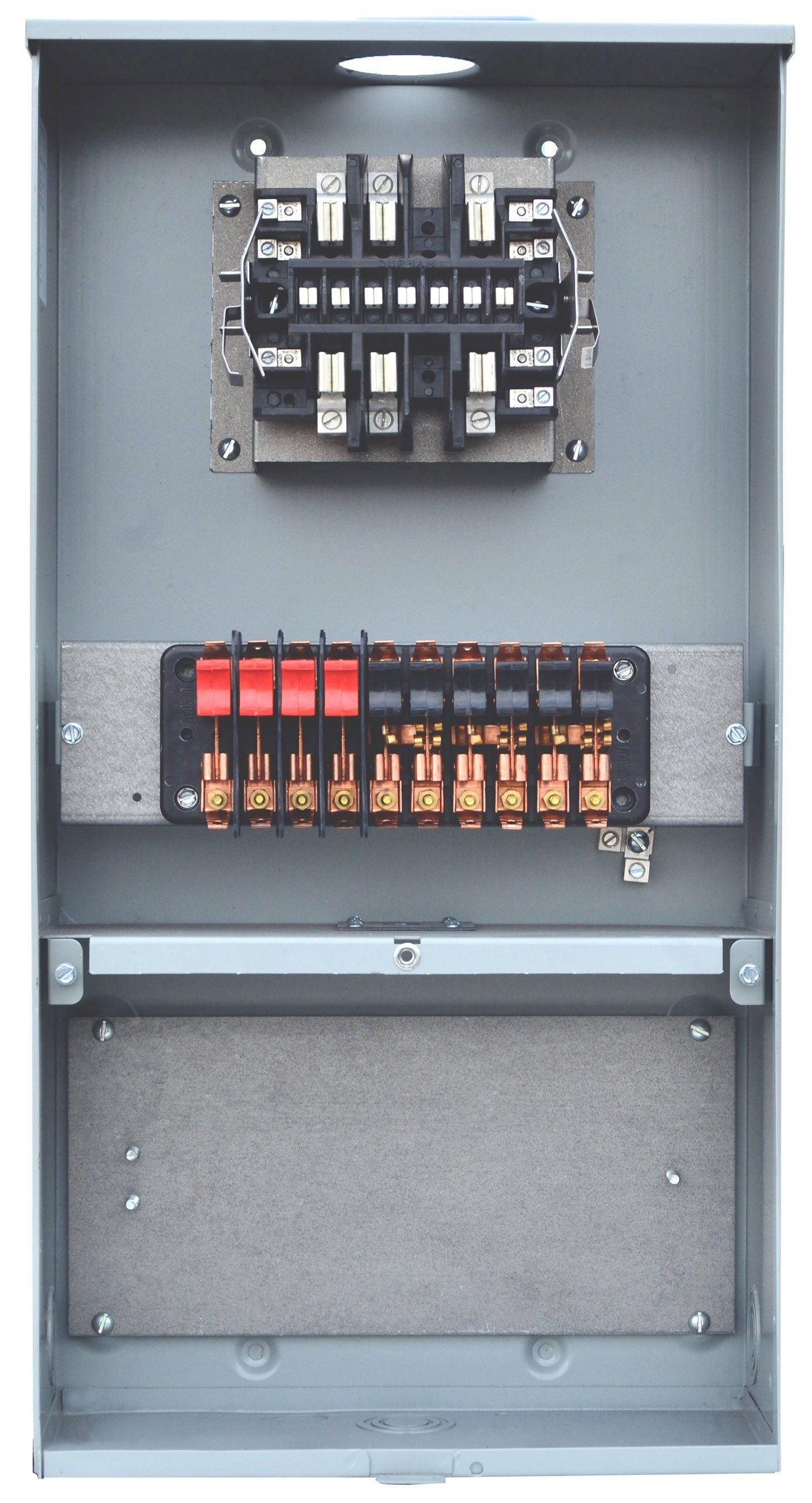

The Isolator

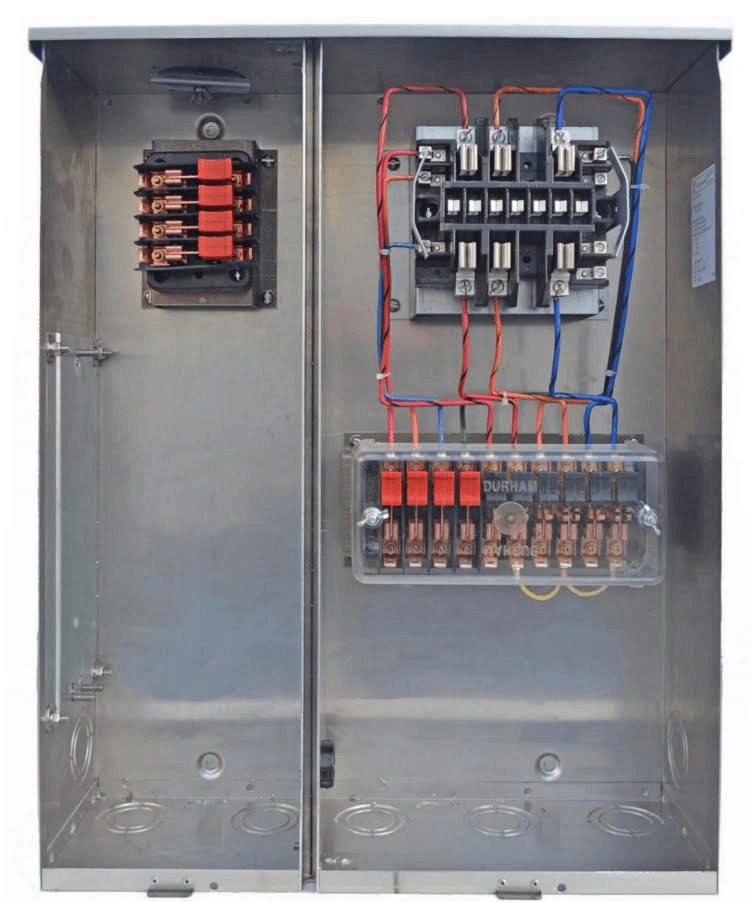

Keeps 277/480 Volts Isolated From The Meter Socket | 20 Ampere | Transformer Rated | VT Compartment Units | 600 VAC

  • Enclosures Isolates 277/480 Volts from the Meter Socket
  • Enclosures come with the VT’s or have provisions for the VT’s
  • Enclosures can be Pre-Wired with Test Switch with Stranded or Solid Wire
  • Enclosures are Manufactured in G-90 Galvanized Steel or Aluminum
  • NEMA 3R Enclosures
Knockout Configuation

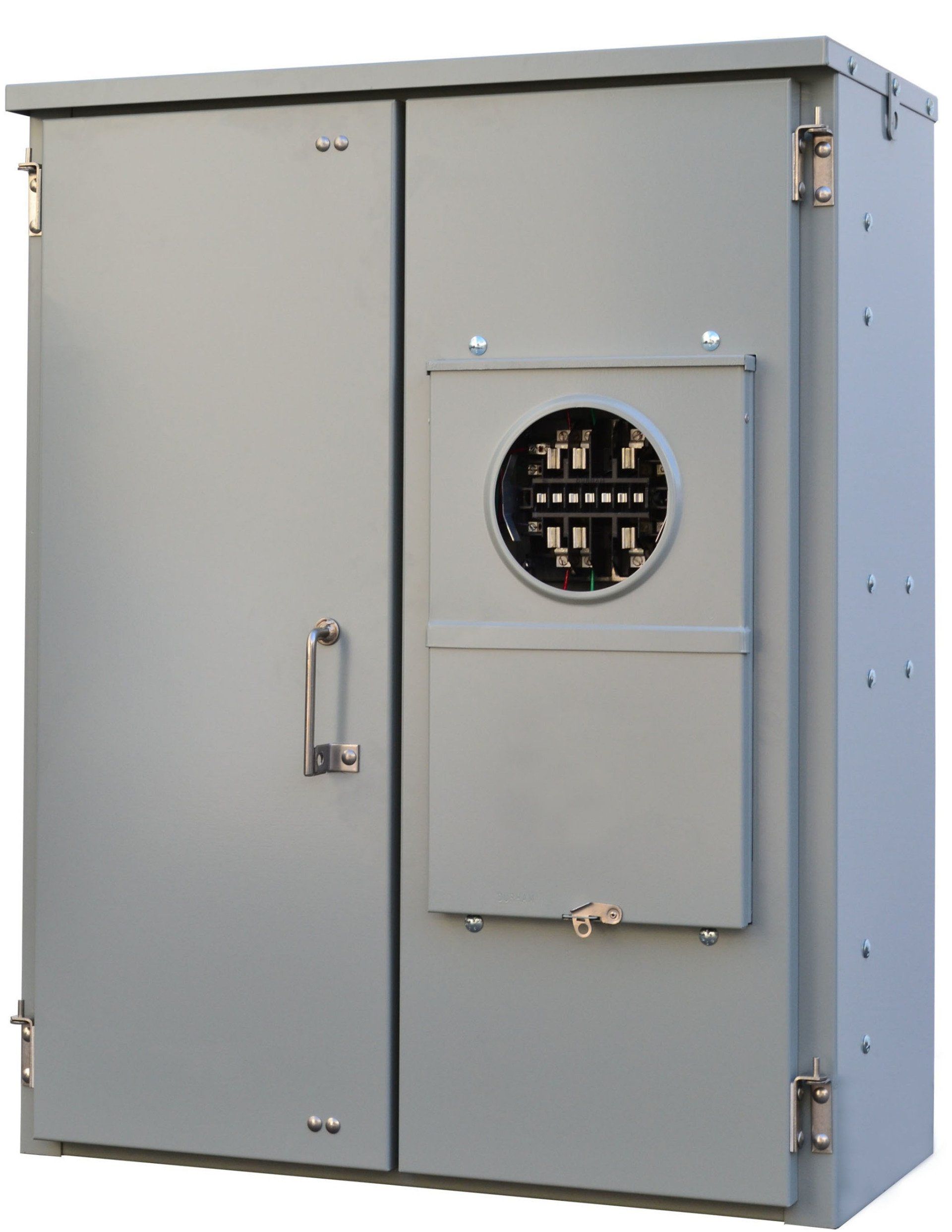

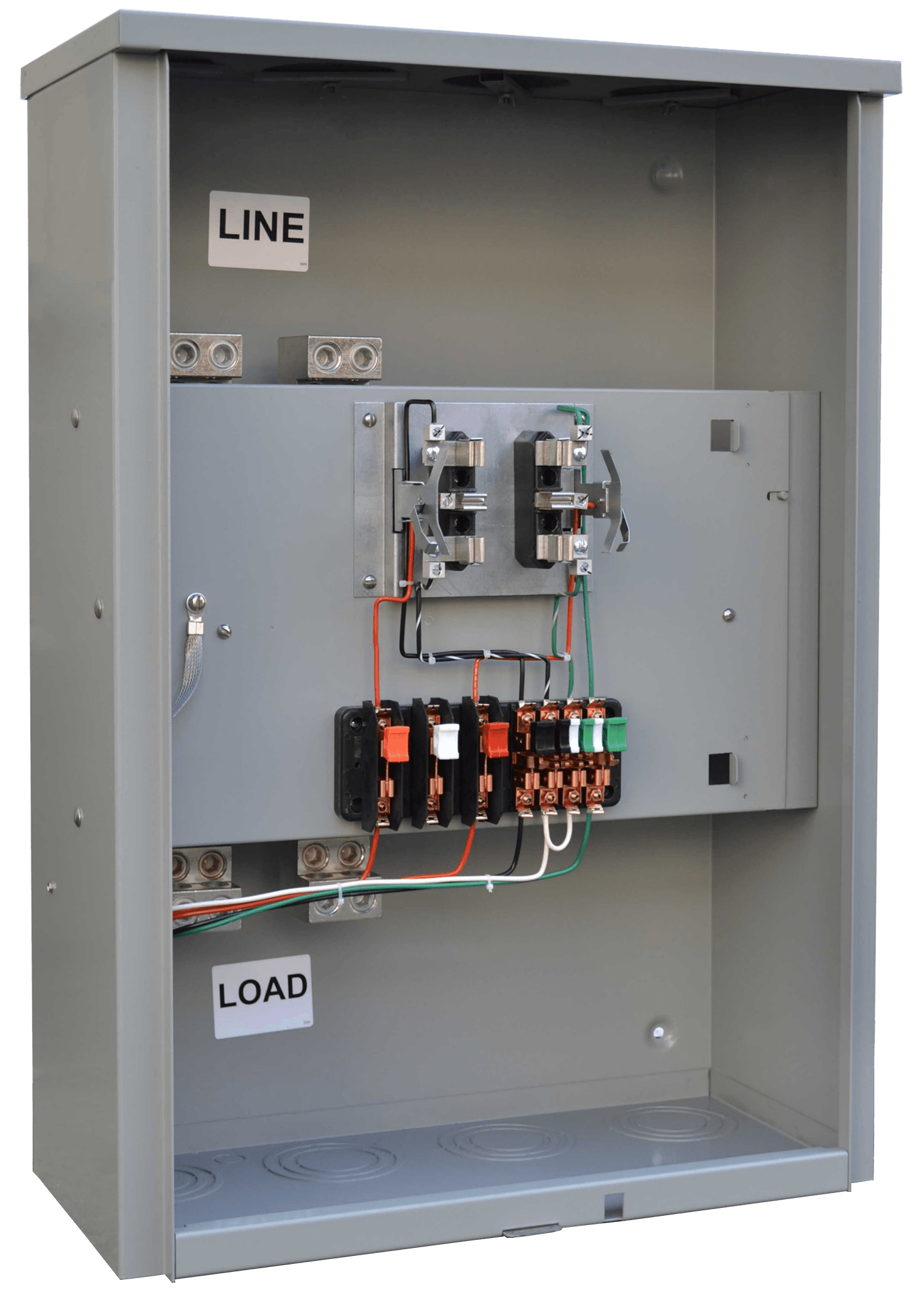

Transocket Transformer Rated

Saving Utilities On Installation Time!

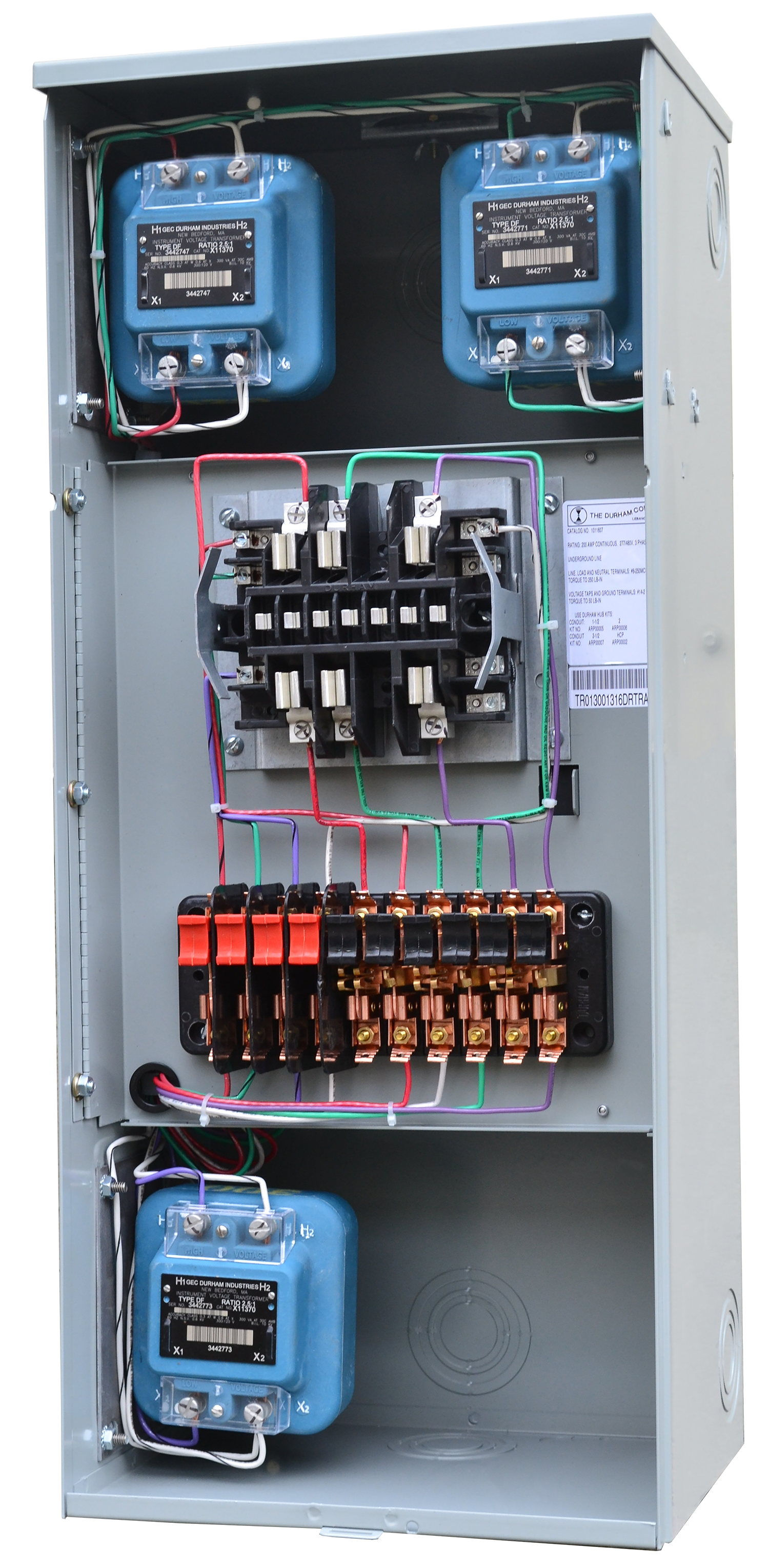

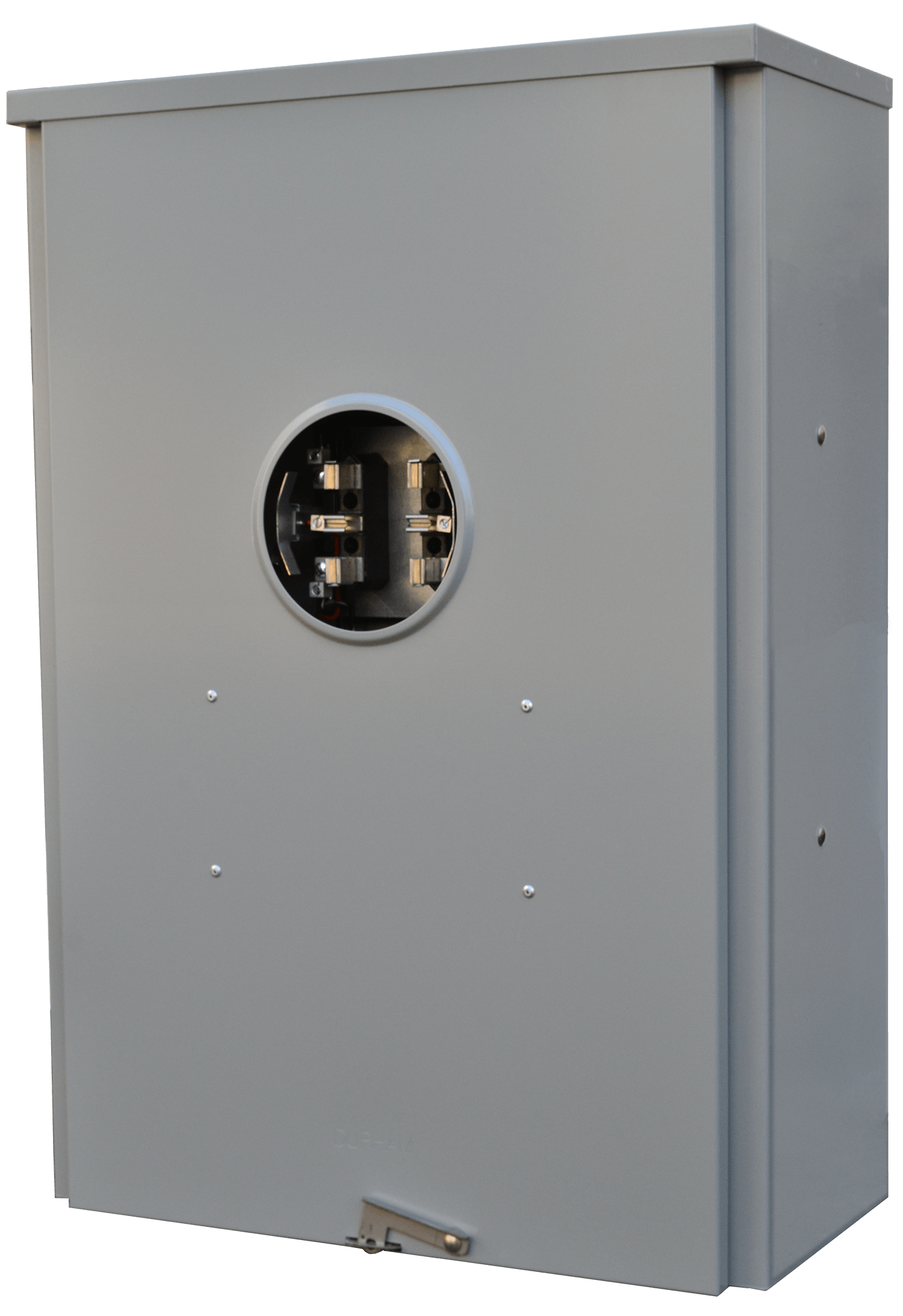

600 VAC | 200 Through 4,000 Ampere | Single & Three Phase | Pre-Wired

  • Pre-Wired Transformer Rated Transockets have wiring harness that are color coded and wired per utility specifications.
  • Very Low Secondary Burden Rating
  • Manufactured from G-90 Galvanized Steel or Aluminum
  • Stainless Steel Exterior Hardware
  • NEMA 3R Enclosures
Knockout Configuation

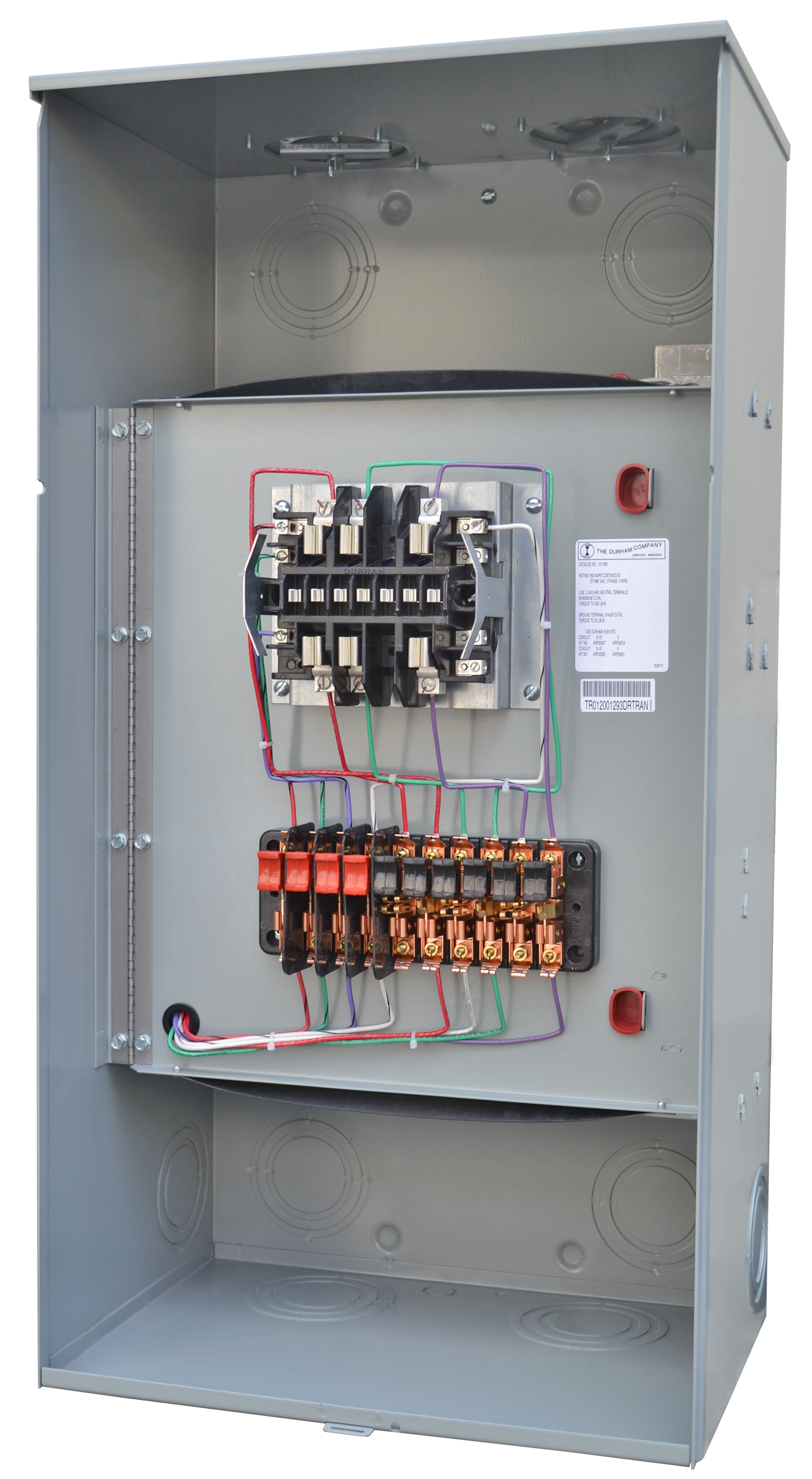

600 VAC | 600 Ampere | Single & Three Phase | 6 & 13 Jaw | Ringless Style

  • Pre-wired per customer specifications.
  • 600 Amperes, 1 phase, 3-wire - 3 phase, 4-wire.
  • 600:5 .15S Accurate Transformers with RF of 1.33 @ 30C.
  • Overhead/Underground Feed.
  • (2) Large hub cover plates on top.
  • G-90 galvanized steel.
  • NEMA 3R enclosures.
Knockout Configuation
Catalog Number Amps Phase High Accuracy .15% Current Transformers #Jaws Hubs Wire Size Line CU-AL Load Height" Width" Depth"
1011955 600 1 (2) 600:5 6 (2) Hub Cover Plate (Large) (4) #6-350 (4) #6-350 46 25 8-1/2

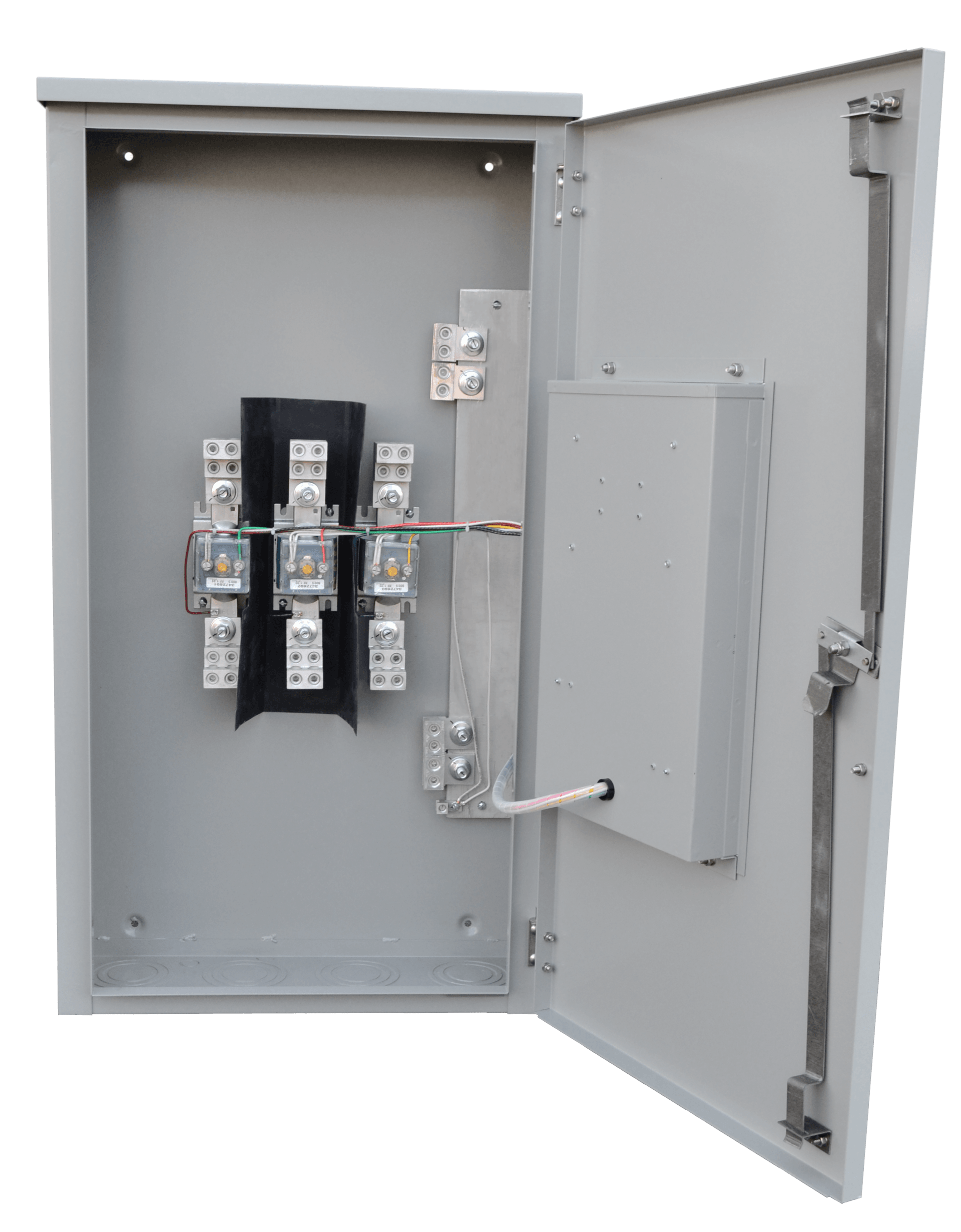

1011954 600 3 (3) 600:5 13 (2) Hub Cover Plate (Large) (4) #6-350 (4) #6-350 46 25 8-1/2

600 VAC | 400 Ampere | Single Phase |
3-Wire | Form 3S | 5-Jaw | Ring Style

  • 400 ampere, 1 phase, 3-wire, form 3S.
  • Units supplied with (1) 400:5 double pass window current transformer which equals 200 & 200:5.
  • *Unit supplied with large hub opening with hub reducer plate with designated small hub.
  • G-90 galvanized steel.
  • NEMA 3R enclosures.
Knockout Configuation
Catalog Number Amps Current Transformers # Jaws Hub Auto Circuit Closing Non Circuit Closing Wire Size Line CU-AL Load Height" Width" Depth"

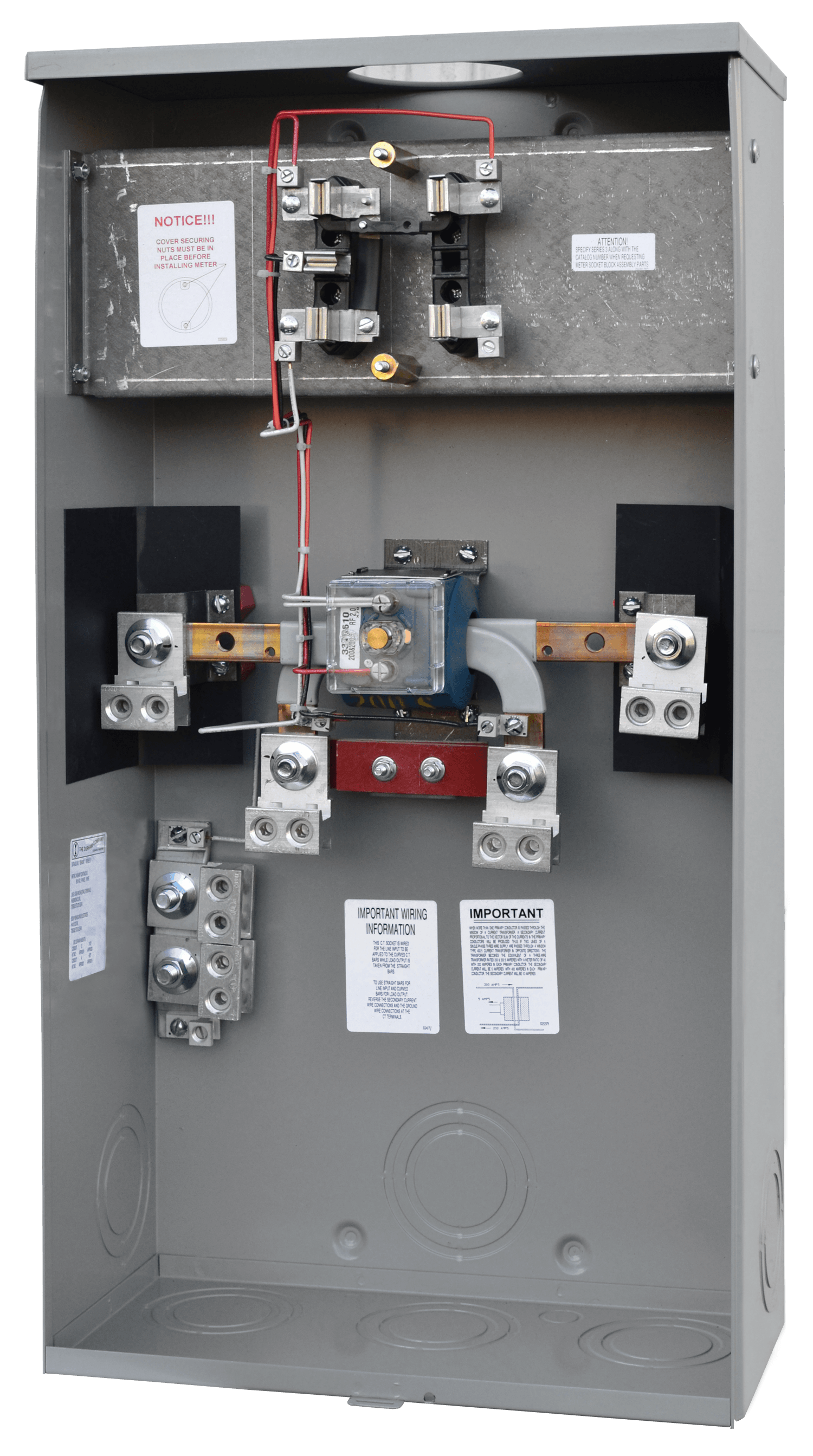

TSB4050A 400 200 & 200:5 5 Solid Yes - 1/2" Stud 1/2" Stud 31-1/2 16-3/4 8-15/64
TSB4050S 400 200 & 200:5 5 4" Hub Yes - 1/2" Stud 1/2" Stud 31-1/2 16-3/4 8-15/64
TSB4050U 400 200 & 200:5 5 HCP (LG) Yes - 1/2" Stud 1/2" Stud 31-1/2 16-3/4 8-15/64
TSB4059A 400 200 & 200:5 5 Solid Yes - (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64
TSB4059Q 400 200 & 200:5 5 3" Hub Yes - (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64

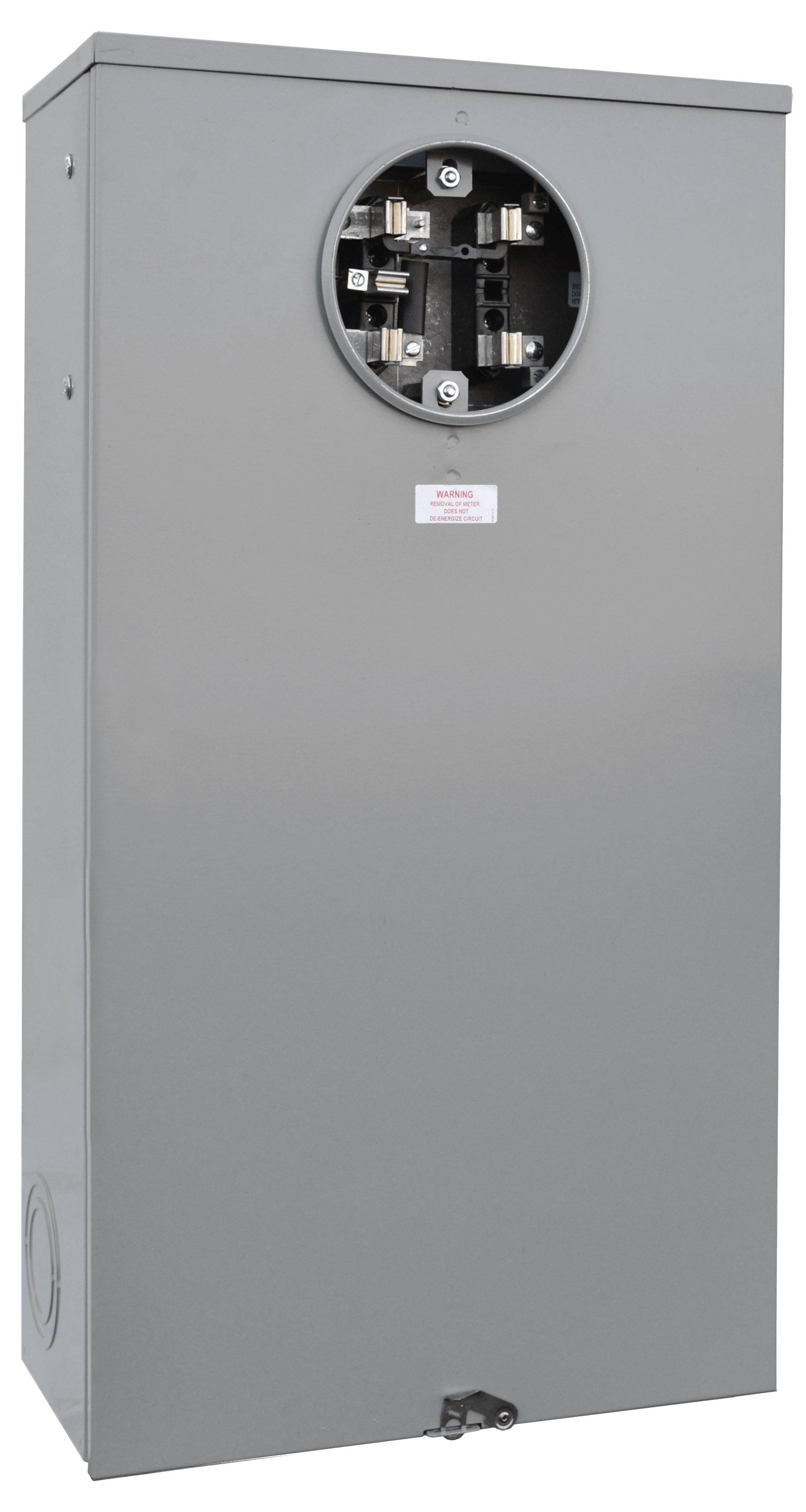

TSB4059T 400 200 & 200:5 5 HO (LG) Yes - (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64
TSB4059U 400 200 & 200:5 5 HCP (LG) Yes - (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64
*TSB4059V 400 200 & 200:5 5 2-1/2" Hub Yes - (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64
*TSB4059W 400 200 & 200:5 5 2" Hub Yes - (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64
TSBN4050A 400 200 & 200:5 5 Solid - Yes 1/2" Stud 1/2" Stud 31-1/2 16-3/4 8-15/64
TSBN4050S 400 200 & 200:5 5 4" Hub - Yes 1/2" Stud 1/2" Stud 31-1/2 16-3/4 8-15/64
TSBN4059A 400 200 & 200:5 5 Solid - Yes (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64
TSBN4059U 400 200 & 200:5 5 HCP (LG) - Yes (2) #6-350 (2) #6-350 31-1/2 16-3/4 8-15/64

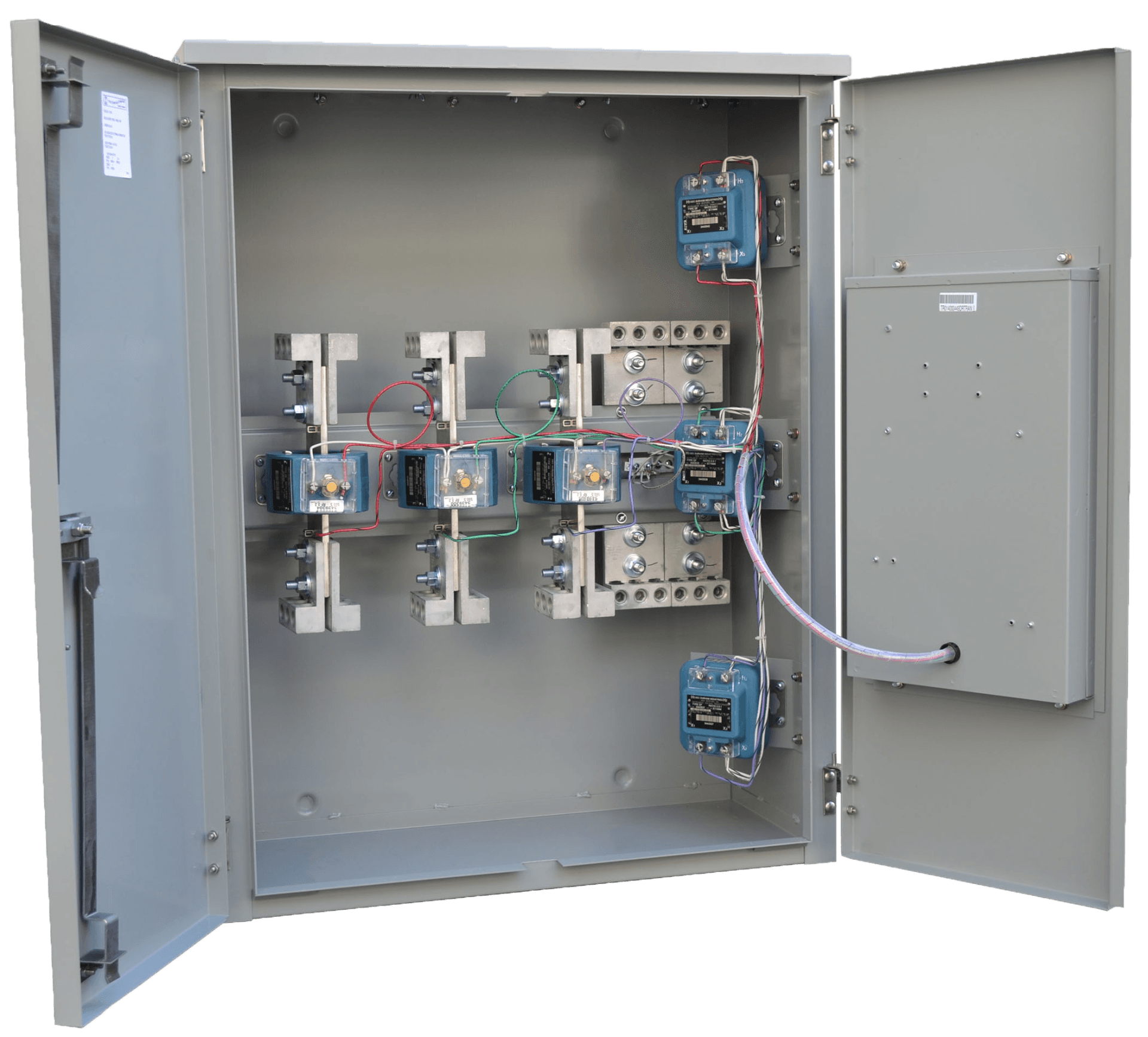

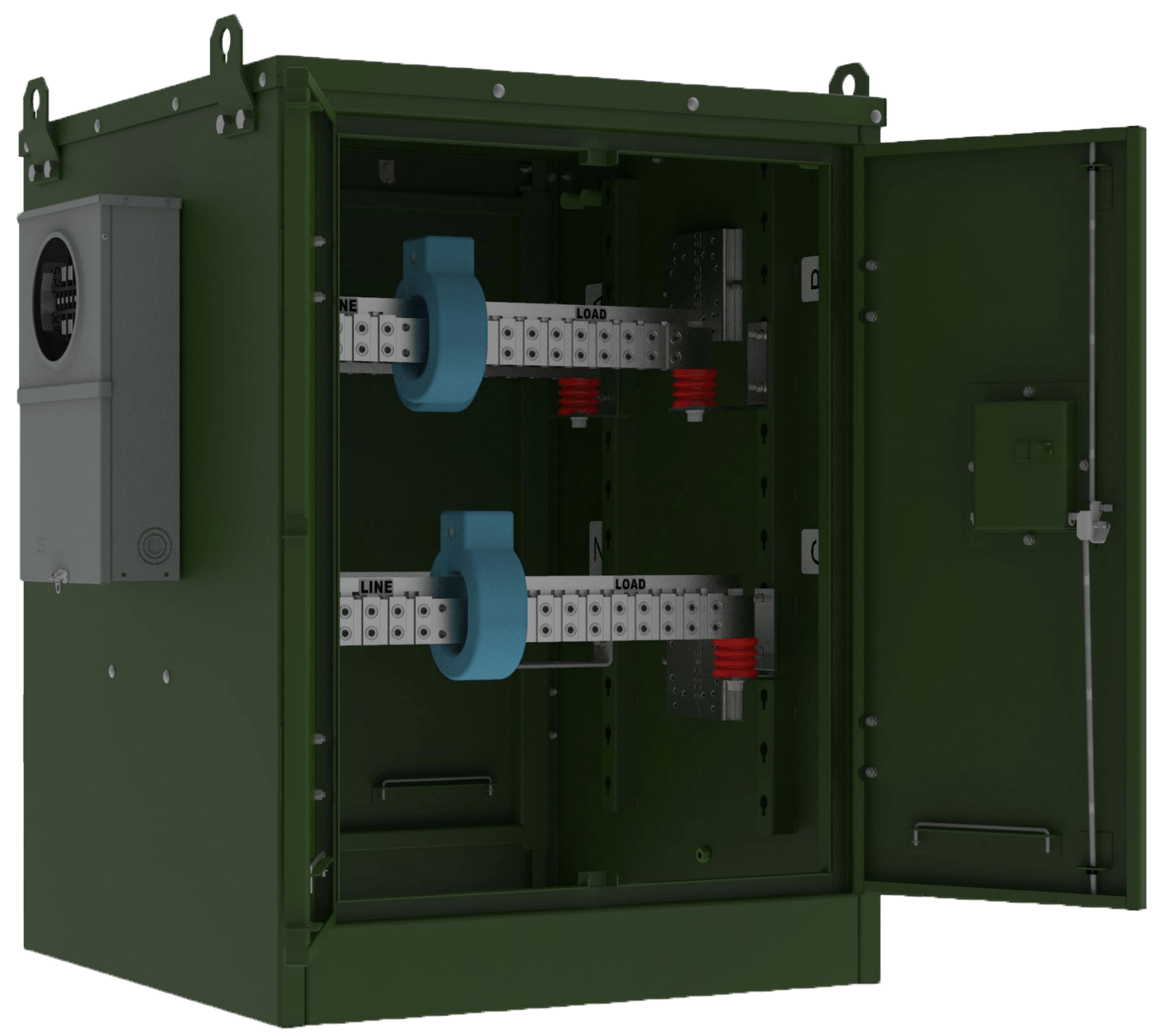

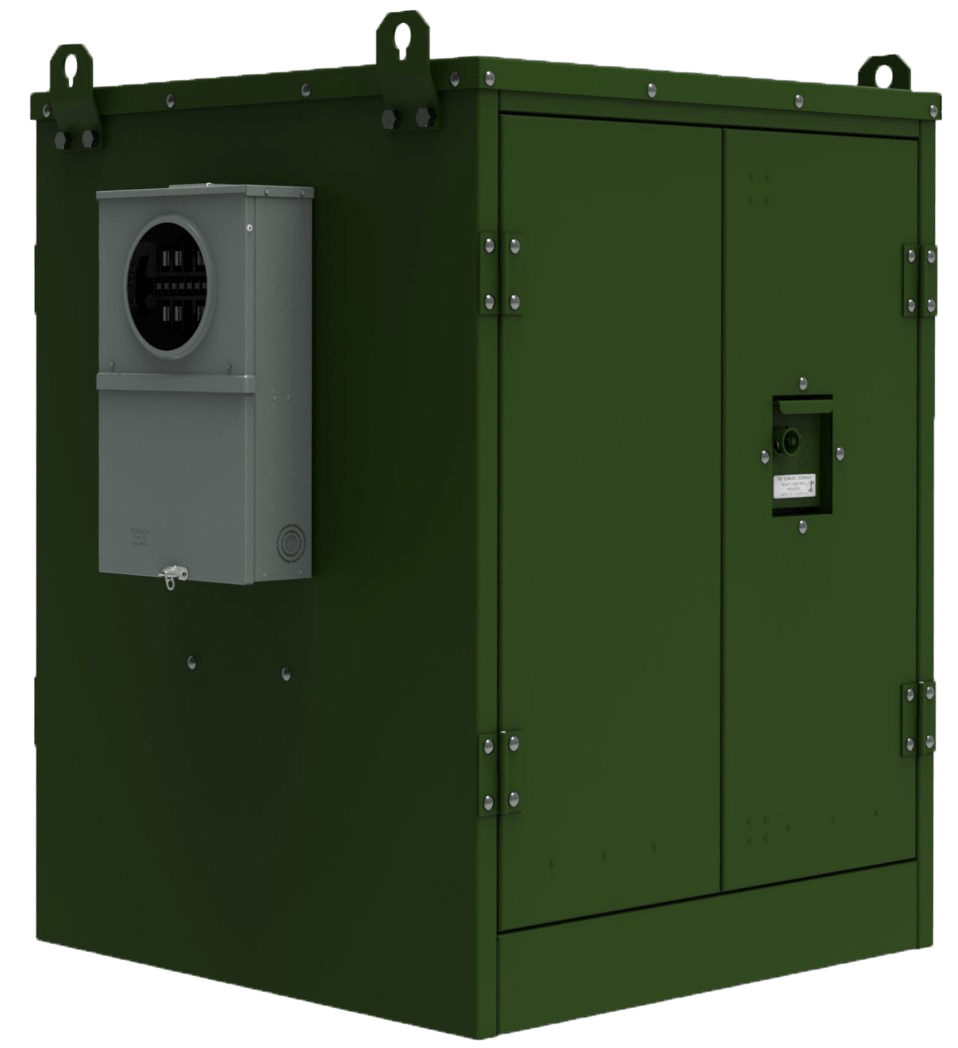

1200 Ampere | With Metering | Three Phase | Multiple Connections | 600 VAC

  • 1200 Ampere, 3 Phase, 4-Wire, 600 Volts.
  • Units Up To 4,000 Amperes Available.
  • IEEE C57.27.28.
  • (3) 12-Position 1/0-750 MCM CU-AL Tin-Plated Phase Bus Connectors.
  • (1) 12-Position 1/0-750 MCM CU-AL Tin-Plated Neutral Bus Connectors.
  • (3) Astra AP4Y 400:5 B. 0.2, RF 4 @ 85C Extended Range Pad Mount Current Transformers.
  • 13 Terminal Pre-Wired 9S Meter Socket with 10 Pole Test Switch.
  • Munsell 7GY3.29/1.5 Pad Mount Green Ultra Weatherable Polyester Powder Paint Finish.
  • 12 Ga. G-90 Galvanized Steel.
  • Stainless Steel Hardware.
  • Line And Load Labels (3) Places.
Test Switches

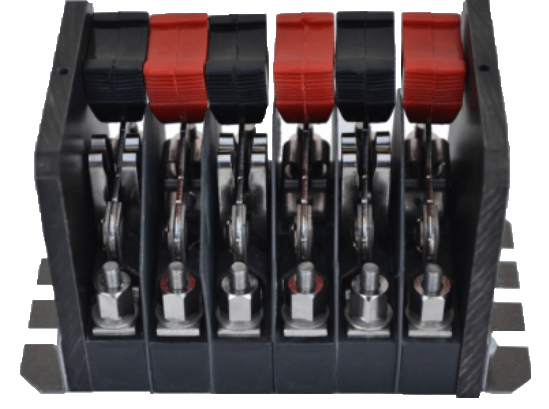

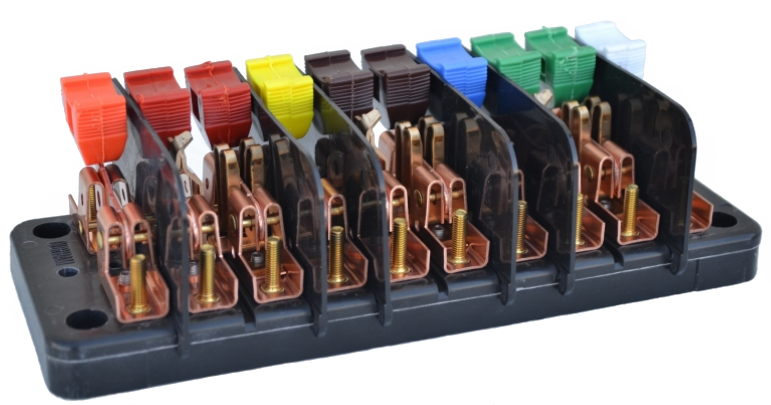

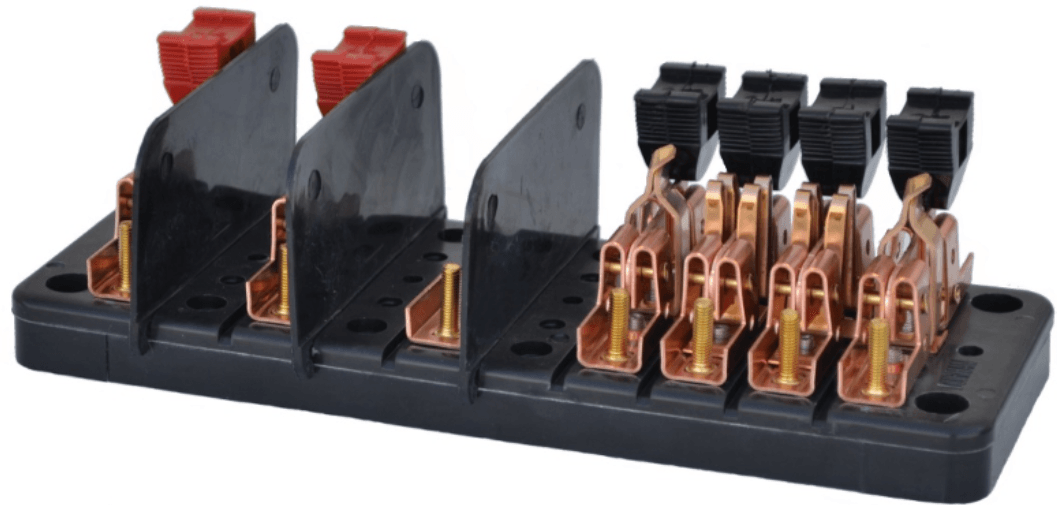

Test Switches | 30 Ampere | 600 Volts AC | Poles | Bases

  • Underwriters Laboratories (UL) available on most Test Switches.
  • Test Switches are built to ANSI C12.9 standards.
  • Test Switches are rated for 30 Ampere at 600 Volts AC.

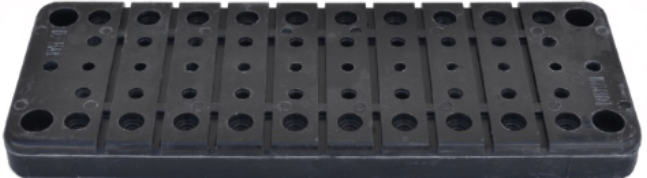

  • Bases: Glass filled polyester (molded) bases are supplied on standard spacing models. Arboron cut bases are supplied for special larger mounting requirements. Bases offer nontracking, 600 Volt, high strength and superior longevity. Customer provisions are supplied for 1/4” mounting bolts.

Test Switch Handles | Connectors

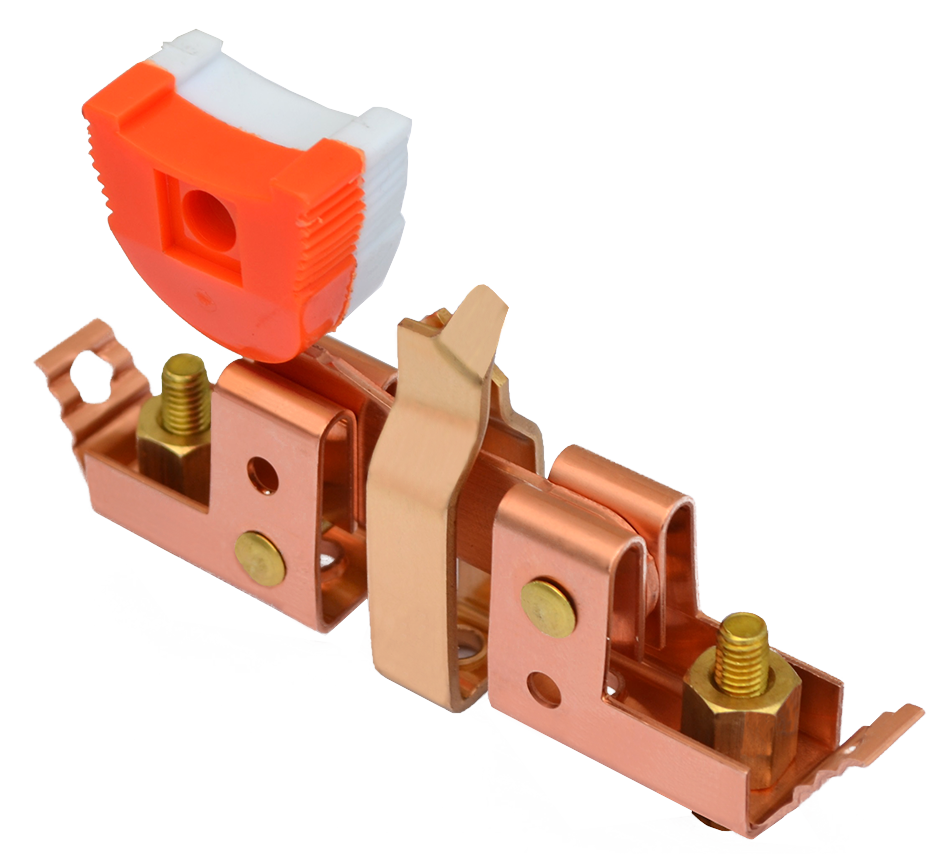

  • Blades: Copper knife blades provide superior contacts.
  • Blades can be supplied with 45 or 90 degree stops.

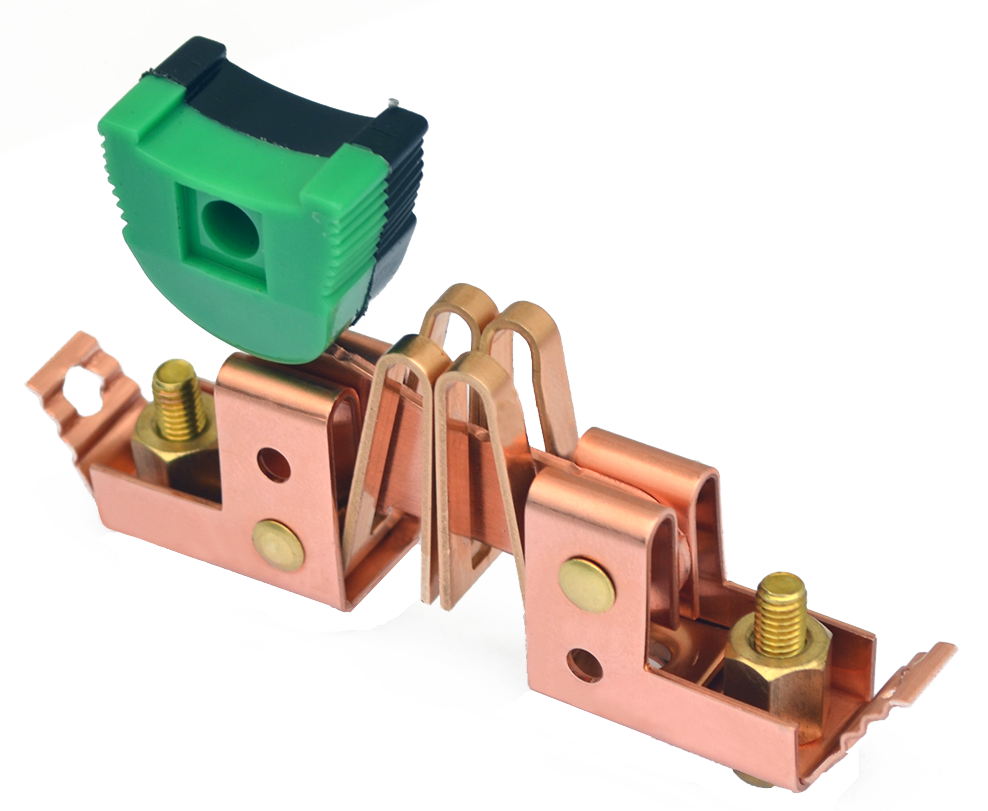

  • Test Jack Switch: Copper components provide excellent
  • low resistance for the insertion of a bi-polar plug (Safe-T Plug) to measure current in the circuit.
  • Short Circuit Switch: Copper components with a make before break design for shorting out the current transformer.

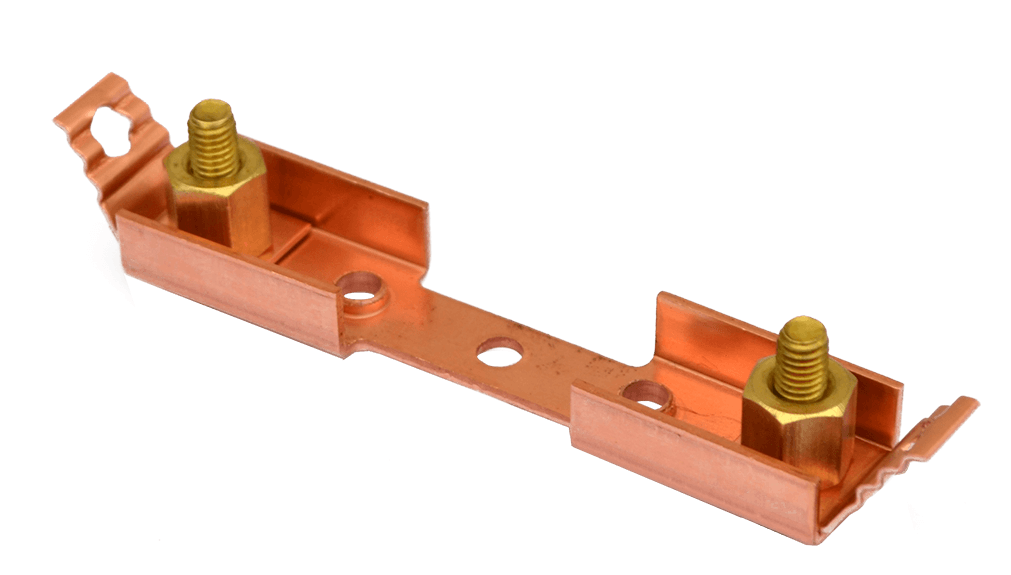

  • Neutral Switch: Neutrals can be as a switch or solid thru bar.
  • Handles: Nylon (2) piece ultra-sonic welded handles can be supplied in 9 colors to match the wire color. Split handle colors can be supplied to match the wire and tracer color.
  • Ganged Handles: Handles can be supplied ganged together.
  • Test Ears: Test Ears are supplied as standard with the stud/nut connections. The ears are corrugated for secure clamping of test leads.

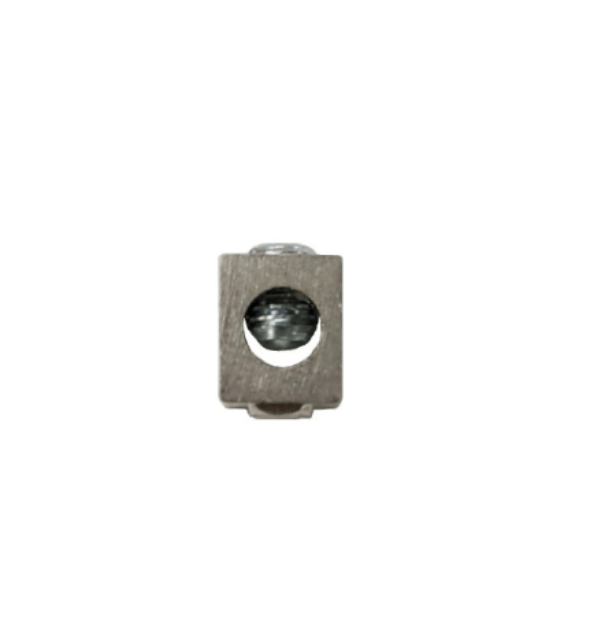

  • Connections: Front and Back Connected Test Switches are furnished with 10/32 studs with brass hex nuts (3/8” across flats) as standard.
  • Plating: Test Switches are supplied in bare copper as standard. Plating is available.

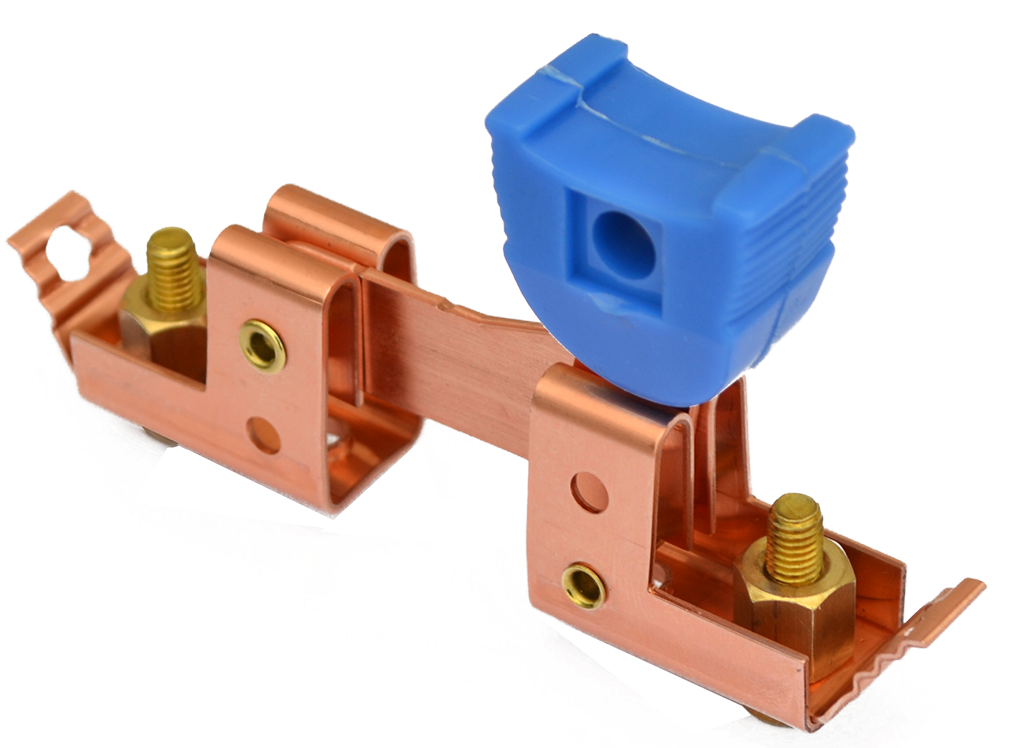

  • Reverse Potentials: Potential Switches can be reversed for additional safety when metering 277/480 Volts.

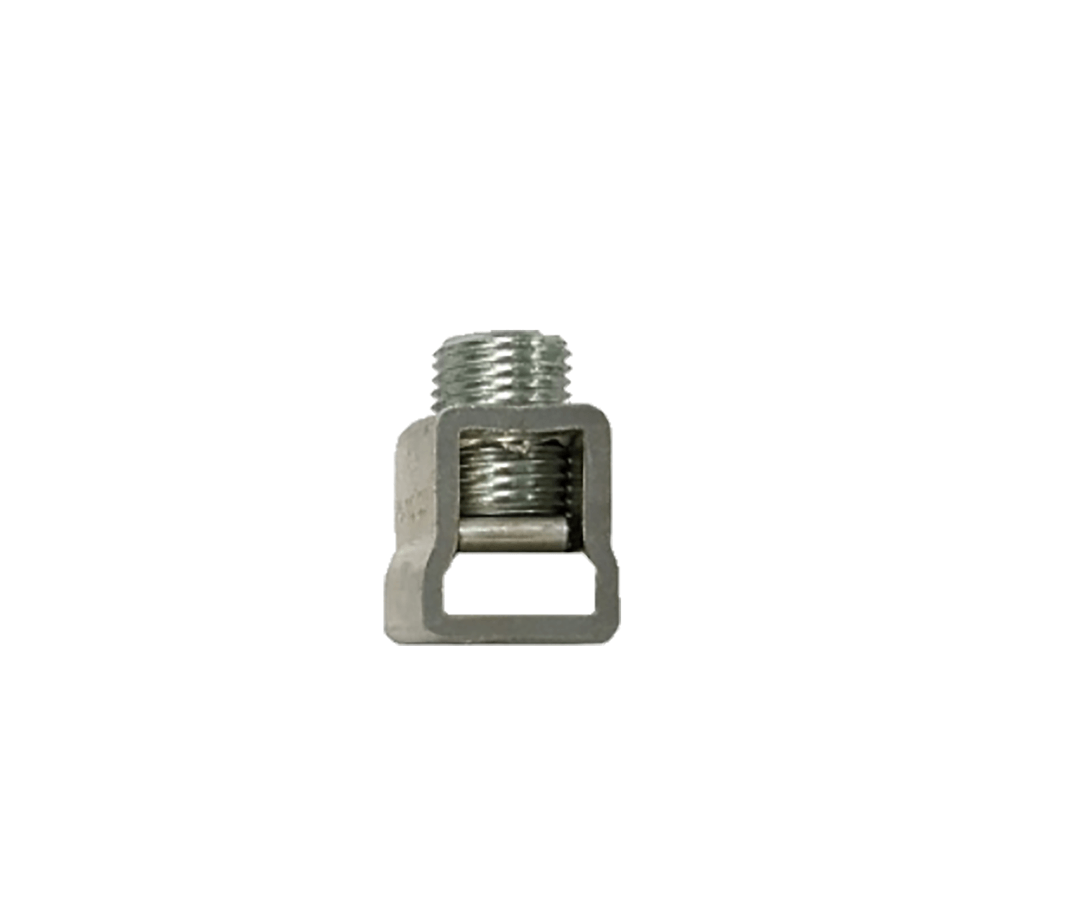

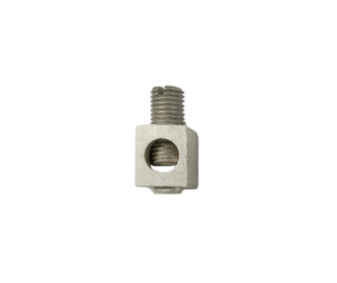

  • Connectors: Box Style Connectors are available.

Test Switch Barriers | Covers
| Safe-T Plug

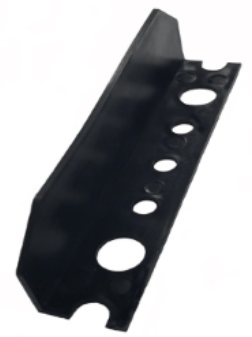

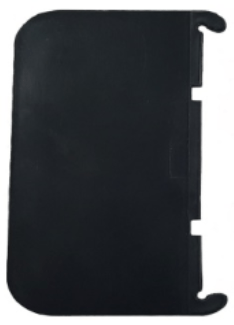

  • Barriers: Insulated pop-in barriers are furnished on all potential assemblies having 1” or less spacing to next switch element. Channel Barriers are available.

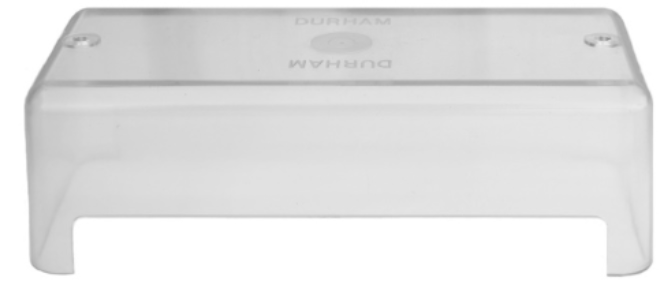

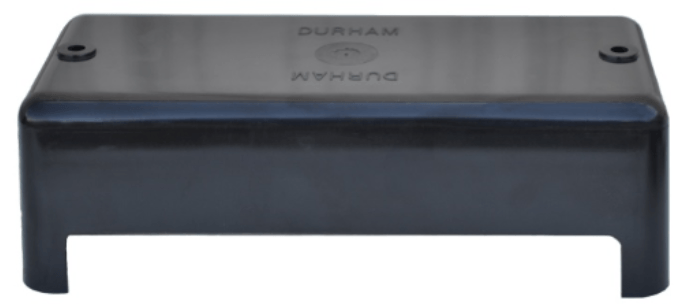

  • Covers: Covers are available in Clear or Black Lexan. Covers are supplied with mounting studs and wing nuts with provisions for wire seals.
  • Captive Cover Screws: Covers are available with captive thumb wheel screws.

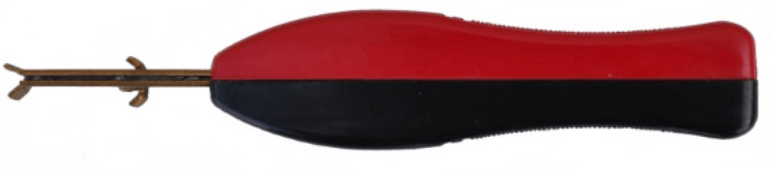

  • Current Safety Plugs: Optional Safe-T-Plugs are available to allow current measurements in the Test Jack Switches.
  • Fuse Holders: 30 or 60 Amp Fuse Holders are available.
