Residential Meter Sockets
Single Position

125 Amp | 4 Jaw | Meter Sockets
Ring Or Ringless Style | 600 VAC

  • Units rated 125 ampere continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction
  • with certain types of over current protection. Contact factory for details.
  • Add prefix G for factory installed, grounded 5th terminal.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • Ring Style Sockets are supplied with snap-type sealing rings.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configurations

UHT-RS101B

Button

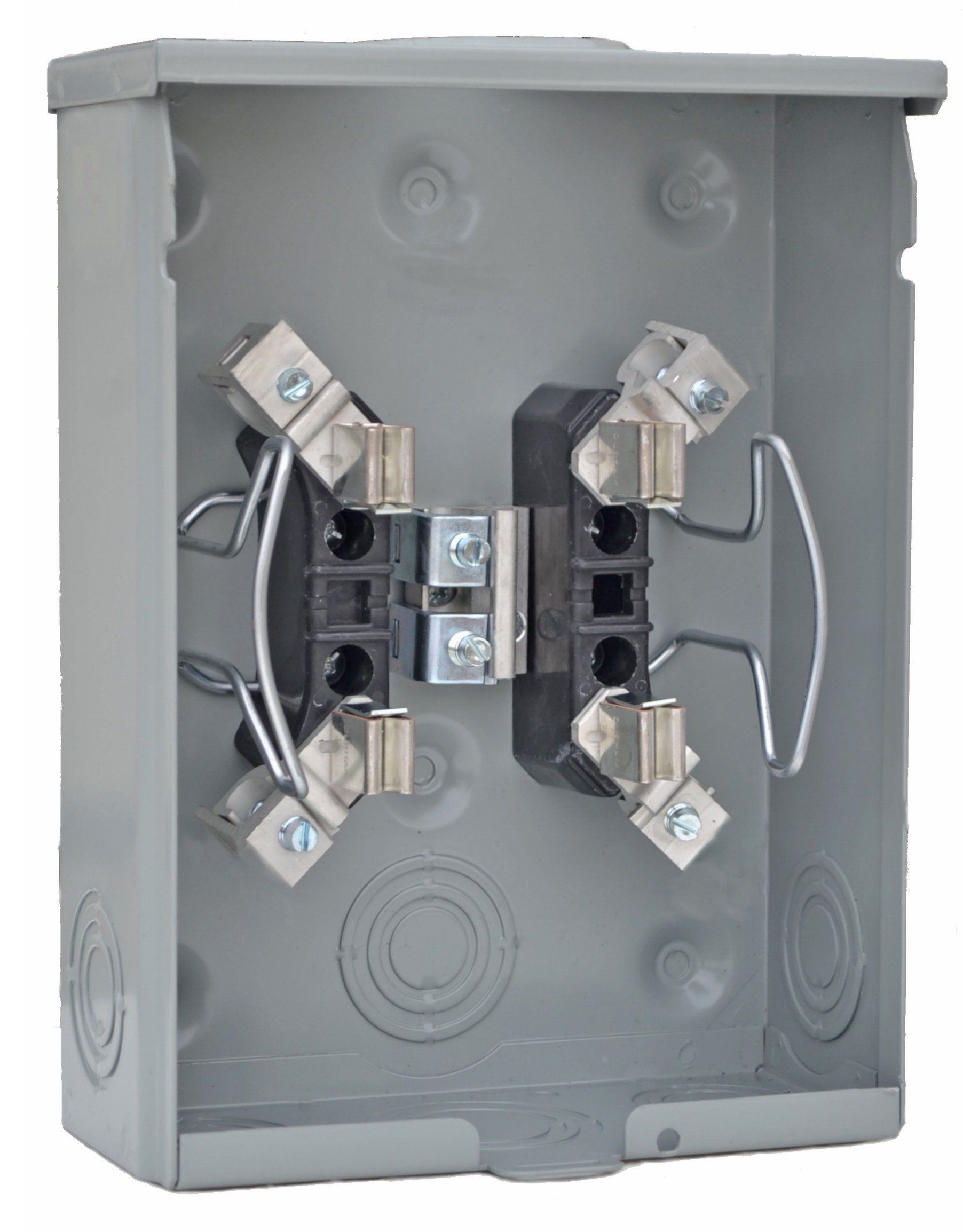

T-RS101B

Button
Ringless Ring Style Amps Service Hub #Jaws CU-AL Bypass Dimensions H" Dimensions W" Dimensions D"
UHT-RS101B - 125 Overhead/Underground Hub Opening 4 #8-2/0 Horn 10-7/8 8 3-1/2
T-RS101A RT-RS101A 125 Underground Solid Top 4 #8-2/0 NONE 10-7/8 8 3-1/2
T-RS101B RT-RS101B 125 Overhead/Underground Hub Opening 4 #8-2/0 NONE 10-7/8 8 3-1/2
T-RS101C RT-RS101C 125 Overhead/Underground Hub Cover Plate 4 #8-2/0 NONE 10-7/8 8 3-1/2
T-RS101L RT-RS101L 125 Overhead/Underground 1-1/4" HUB 4 #8-2/0 NONE 10-7/8 8 3-1/2
T-RS101M RT-RS101M 125 Overhead/Underground 1-1/2" HUB 4 #8-2/0 NONE 10-7/8 8 3-1/2
T-RS111B RT-RS111B 125 Overhead/Underground Hub Opening 4 #8-2/0 NONE 14 11 4-3/8
T-RS111C RT-RS111C 125 Overhead/Underground Hub Cover Plate 4 #8-2/0 NONE 14 11 4-3/8
T-RS111L RT-RS111L 125 Overhead/Underground 1-1/4" HUB 4 #8-2/0 NONE 14 11 4-3/8
T-RS111N RT-RS111N 125 Overhead/Underground 2" HUB 4 #8-2/0 NONE 14 11 4-3/8

200 Ampere | 4 Jaw | Meter Sockets
Ring Or Ringless Style | 600 VAC

  •  Units rated 200 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details. *Note T-RS213-8C does not meet the over 10K SCCR.
  • Add prefix G for factory installed, grounded 5th terminal.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • Ring Style Sockets are supplied with snap-type sealing rings.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

T-RS203B

Button

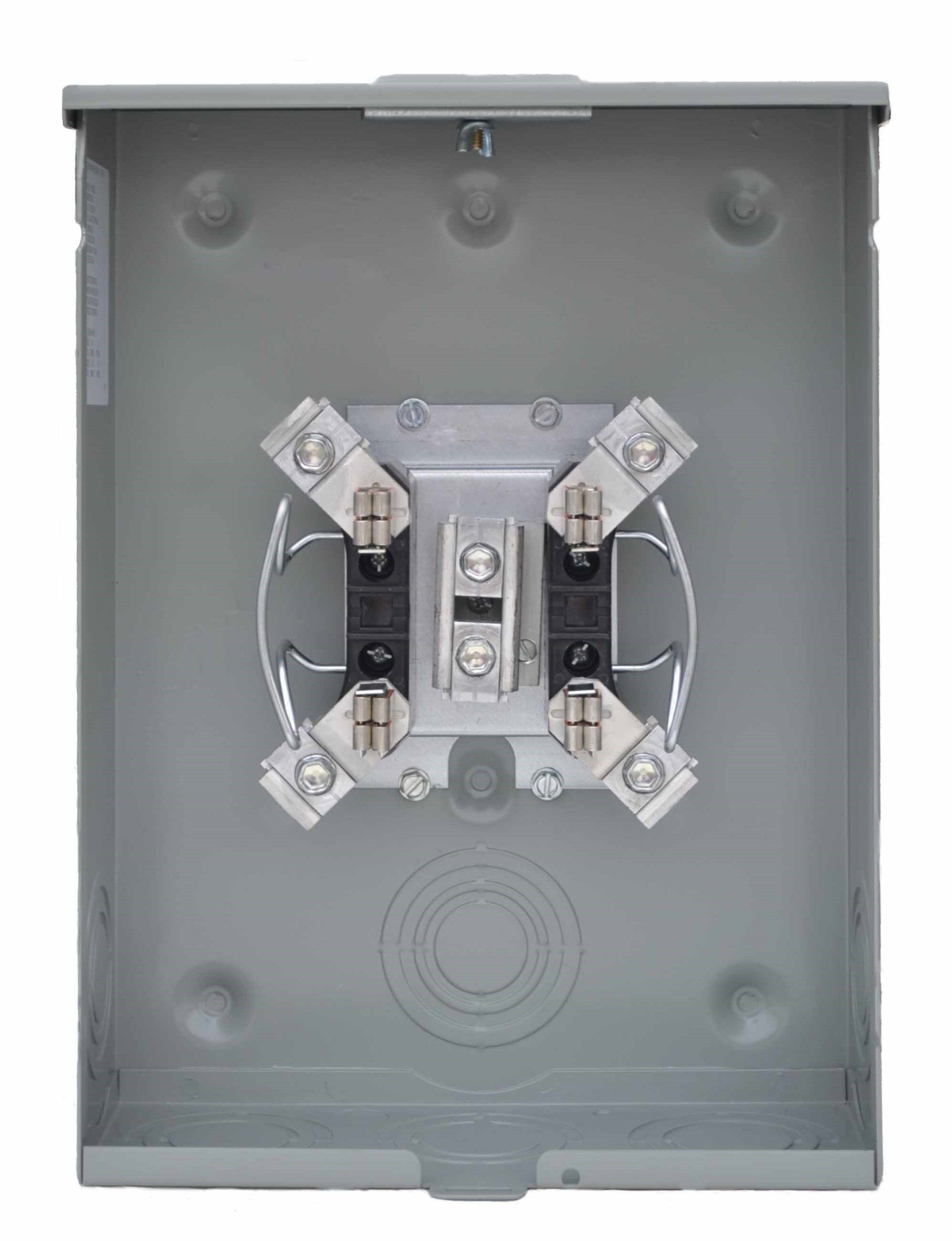

T_RS213C

Button
Ringless Ring Style Amps Service Hub # Jaws Wire CU-AL Line Wire CU-AL Load Height" Width" Depth"
T-RS202B RT-RS202B 200 Overhead Hub Opening 4 #8-250 #8-250 14 8 4-3/8
T-RS202C RT-RS202C 200 Overhead Hub Cover Plate 4 #8-250 #8-250 14 8 4-3/8
T-RS203B RT-RS203B 200 Overhead Hub Opening 4 #8-350 #8-350 15 8 4-3/8
T-RS203N RT-RS203N 200 Overhead 2" Hub 4 #8-350 #8-350 15 8 4-3/8
T-RS212B RT-RS212B 200 Overhead/Underground Hub Opening 4 #8-250 #8-250 14 11 4-3/8
T-RS212C RT-RS212C 200 Overhead/Underground Hub Cover Plate 4 #8-250 #8-250 14 11 4-3/8
T-RS212N RT-RS212N 200 Overhead/Underground 2" Hub 4 #8-250 #8-250 14 11 4-3/8
T-RS213A RT-RS213A 200 Overhead/Underground Solid Top 4 #8-350 #8-350 15 11 4-3/8
T-RS213B RT-RS213B 200 Overhead/Underground Hub Opening 4 #8-350 #8-350 15 11 4-3/8
T-RS213C RT-RS213C 200 Overhead/Underground Hub Cover Plate 4 #8-350 #8-350 15 11 4-3/8
T-RS213N RT-RS213N 200 Overhead/Underground 2" Hub 4 #8-350 #8-350 15 11 4-3/8
*T-RS213-8C - 200 Overhead/Underground Hub Cover Plate 4 #8-350 (2) #8-250 20 13 4-15/16

200 Ampere | 4 Jaw | Offset Bused Meter Sockets | Ringless Style | 600 VAC

  • Units rated 200 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • Add prefix G for factory installed, grounded 5th terminal.
  • UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • G-90 galvanized steel, NEMA 3R enclosures.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

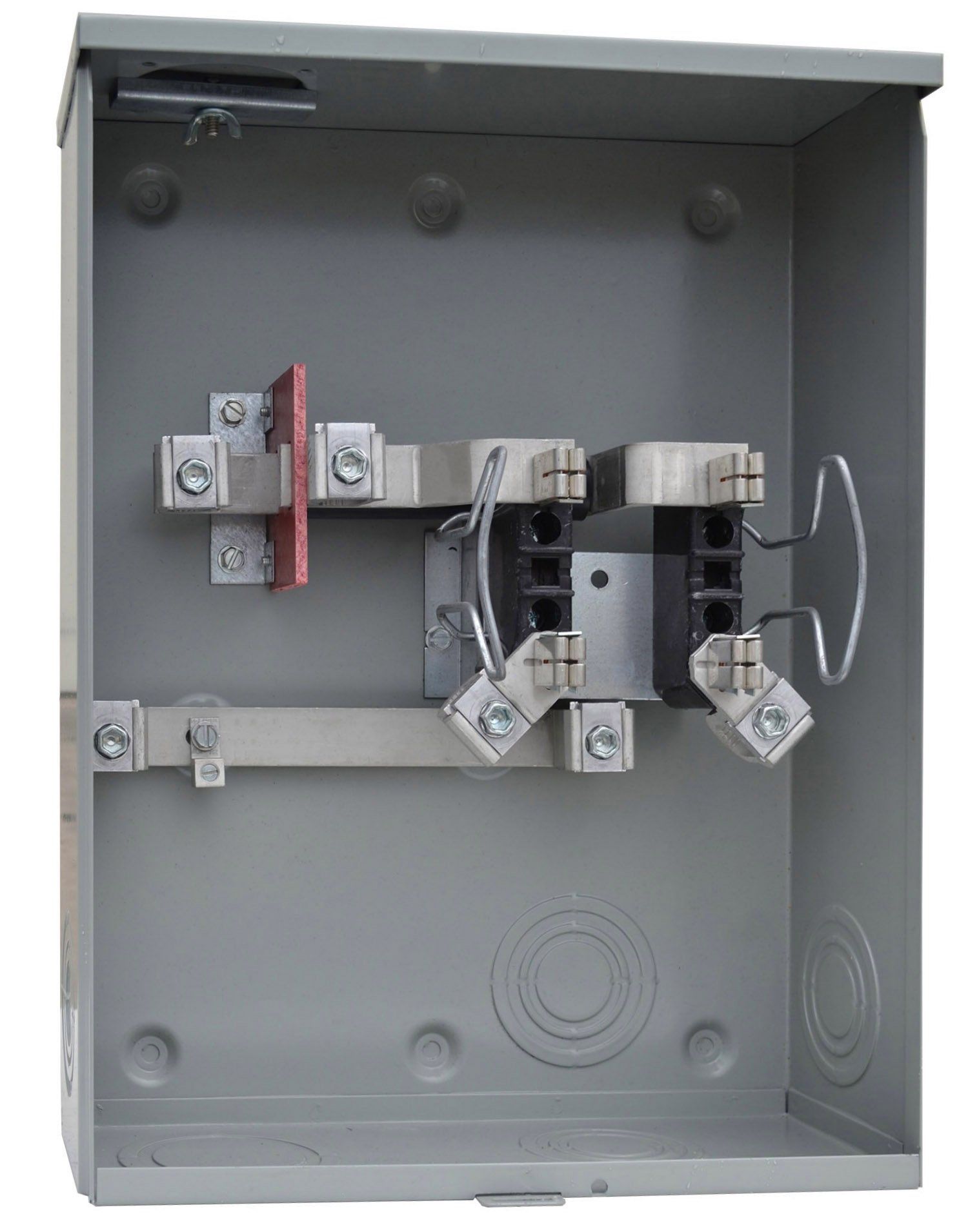

T-RS233C

Button

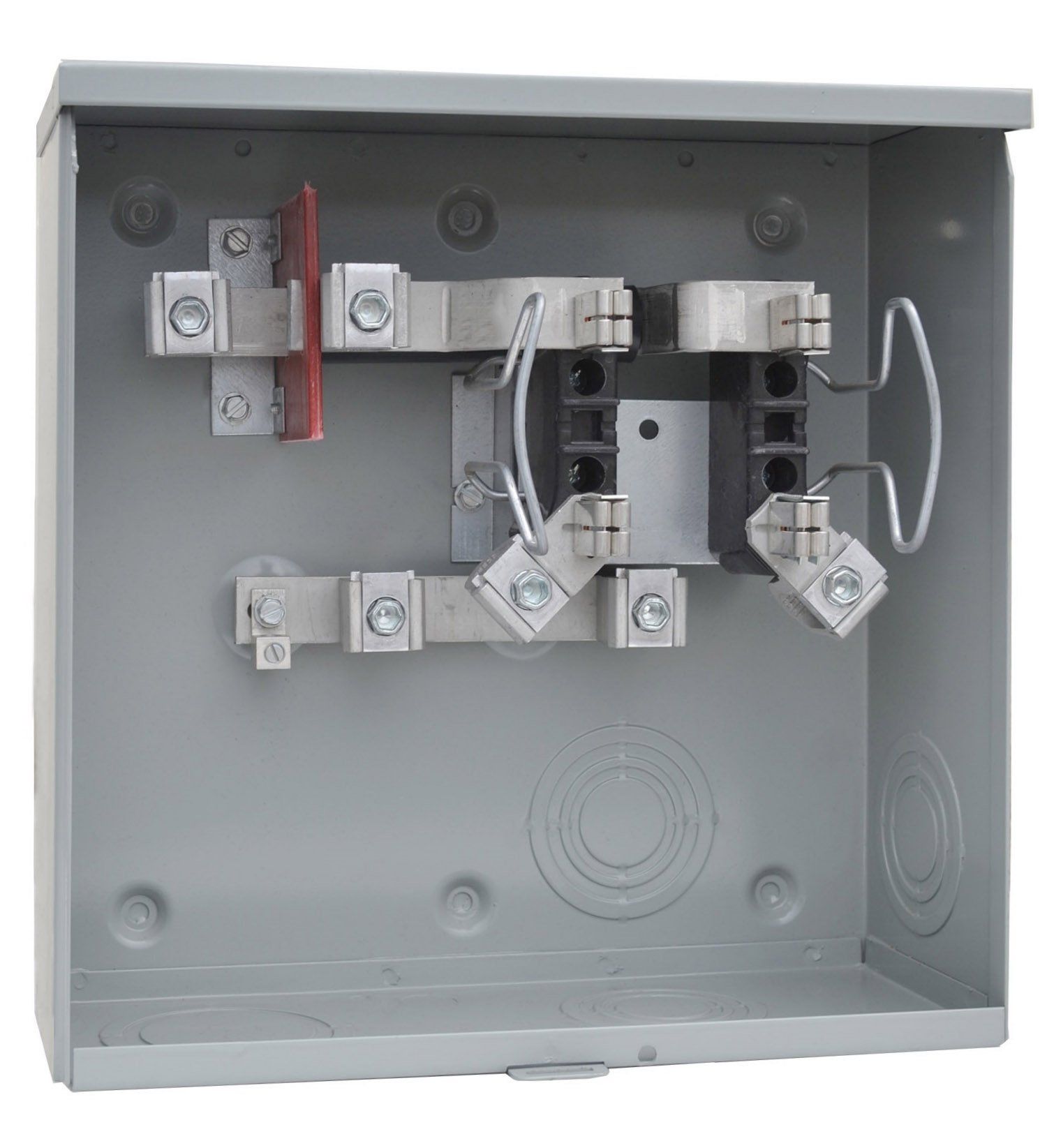

T_RS223A

Button
Catalog Number Amps Service Hub # Jaws Wire CU-AL Line Wire CU-AL Load Dimensions H" Dimensions W" Dimensions D"
T-RS220A 200 Underground Solid Top 4 3/8" Stud 3/8" Stud 15-1/8 13 4-15/16
T-RS220-3A 200 Underground Solid Top 4 3/8" Stud #8-350 15-1/8 13 4-15/16
T-RS222A 200 Underground Solid Top 4 #8-250 #8-250 13 13 4-15/16
T-RS222-0A 200 Underground Solid Top 4 #8-250 #8-250 15-1/8 13 4-15/16
T-RS223A 200 Underground Solid Top 4 #8-350 #8-350 13 13 4-15/16
T-RS223-0A 200 Underground Solid Top 4 #8-350 3/8" Stud 15-1/8 13 4-15/16
T-RS230B 200 Overhead/Underground Hub Opening 4 3/8" Stud 3/8" Stud 20 13 4-15/16
T-RS232B 200 Overhead/Underground Hub Opening 4 #8-250 #8-250 17-1/8 13 4-15/16
T-RS233C 200 Overhead/Underground Hub Cover Plate 4 #8-350 #8-350 17-1/8 13 4-15/16

200 Ampere | 4 & 5 Jaw | Meter Sockets | HQ Lever Bypass/Jaw Clamping | Ringless Style | 600 VAC

  • Units rated 200 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

T-H4213C

Button

T_H4203B

Button
Catalog Number Amps Service Hub # Jaws Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-H4203B 200 Overhead Hub Opening 4 #6-350 #6-350 19 10-1/2 4-15/16
T-H4210C 200 Overhead Hub Cover Plate 4 3/8" Studs 3/8" Studs 24-11/16 13 4-15/16
T-H4213A 200 Underground Solid Top 4 #6-350 #6-350 19 13 4-15/16
T-H4213B 200 Overhead Hub Opening 4 #6-350 #6-350 19 13 4-15/16
T-H4213C 200 Overhead/Underground Hub Cover Plate 4 #6-350 #6-350 19 13 4-15/16
T-H5203B 200 Overhead Hub Opening 5 #6-350 #6-350 19 10-1/2 4-15/16
T-H5203C 200 Overhead Hub Cover Plate 5 #6-350 #6-350 19 10-1/2 4-15/16
T-H5213C 200 Overhead/Underground Hub Cover Plate 5 #6-350 #6-350 19 13 4-15/16
T-H5213B 200 Overhead/Underground Hub Opening 5 #6-350 #6-350 19 13 4-15/16
T-H5213U 200 Overhead/Underground Large Hub Cover 5 #6-350 #6-350 19 13 4-15/16

200 Ampere | Lever Bypass Meter Socket | 7 Jaw |HQ Bypass| Ringless Style | 600 VAC

  • Units rated 200 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • *T-H7213V has a large hub opening with a hub reducer plate and 2 - 1/2" hub.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

UT-H7210T

Button

T-H7213T

Button
Catalog Number Amps Service Hub # Jaws Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-H7203B 200 Overhead Hub Opening 7 #6-350 #6-350 19 10-1/2 4-15/16
T-H7203N 200 Overhead 2" Hub 7 #6-350 #6-350 19 10-1/2 4-15/16
T-H7203T 200 Overhead Large Hub Opening 7 #6-350 #6-350 19 10-1/2 4-15/16
T-H7203U 200 Overhead Large Hub Cover Plate 7 #6-350 #6-350 19 10-1/2 4-15/16
UT-H7210B 200 Overhead/Underground Hub Opening 7 3/8" Stud 3/8" Stud 24-11/16 13 4-15/16
UT-H7210T 200 Overhead/Underground Large Hub Opening 7 3/8" Stud 3/8" Stud 24-11/16 13 4-15/16
T-H7210U 200 Overhead/Underground Large Hub Cover Plate 7 3/8" Stud 3/8" Stud 24-11/16 13 4-15/16
T-H7213A 200 Overhead/Underground Blank 7 #6-350 #6-350 19 13 4-15/16
T-H7213B 200 Overhead/Underground Hub Cover Plate 7 #6-350 #6-350 19 13 4-15/16
T-H7213C 200 Overhead/Underground Hub Cover Plate 7 #6-350 #6-350 19 13 4-15/16
T-H7213N 200 Overhead/Underground 2" Hub 7 #6-350 #6-350 19 13 4-15/16
T-H7213T 200 Overhead/Underground Large Hub Cover Plate 7 #6-350 #6-350 19 13 4-15/16
T-H7213U 200 Overhead/Underground Large Hub Cover Plate 7 #6-350 #6-350 19 13 4-15/16
*T-H7213V 200 Overhead/Underground 2-1/2" Hub 7 #6-350 #6-350 19 13 4-15/16

200 Ampere | 4, 5 & 7 Jaw | Lever Bypass Meter Sockets | MQ Bypass/Spring Jaw | Ringless Style | 600 VAC

  • Units rated 200 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

T-C4213B

Button

T-C7203B

Button
Catalog Number Amps Service Hub # Jaws Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-C4213A 200 Underground Solid Top 4 #6-250 #6-250 15 11 4-15/16
T-C4213B 200 Overhead/Underground Hub Opening 4 #6-250 #6-250 15 11 4-15/16
T-C4213C 200 Overhead/Underground Hub Cover Plate 4 #6-250 #6-250 15 11 4-15/16
T-C5213C 200 Overhead/Underground Hub Cover Plate 5 #6-250 #6-250 15 11 4-15/16
T-C7203B 200 Overhead Hub Opening 7 #6-350 #6-350 19 10-1/2 4-15/16
T-C7203N 200 Overhead 2" Hub 7 #6-350 #6-350 19 10-1/2 4-15/16
T-C7213B 200 Overhead/Underground Hub Opening 7 #6-350 #6-350 19 13 4-15/16
T-C7213C 200 Overhead/Underground Hub Cover Plate 7 #6-350 #6-350 19 13 4-15/16
T-C7213P 200 Overhead/Underground 2 1/2" Hub 7 #6-350 #6-350 19 13 4-15/16
T-C7213U 200 Overhead/Underground Large Hub Cover 7 #6-350 #6-350 19 13 4-15/16

320 Ampere | 4 Jaw | Lever Bypass Meter Sockets | HQ Bypass/Jaw Clamping | Ringless Style | 600 VAC

  • Units rated 320 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

T-H4300U

Button

T-H4308U

Button
Catalog Number Amps Service Hub # Jaws Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-H4300Q 320 Over Head 3" Hub 4 3/8" Studs 3/8" Studs 34-1/2 13 4-15/16
T-H4300T 320 Over Head Hub Opening 4 3/8" Studs 3/8" Studs 34-1/2 13 4-15/16
T-H4300U 320 Over Head HUb Cover Plate 4 3/8" Studs 3/8" Studs 34-1/2 13 4-15/16
T-H4300Q 320 Over Head 3" Hub 4 3/8" Studs 3/8" Studs 34-1/2 13 4-15/16
T-H4306U 320 Over Head HUb Cover Plate 4 #4-600 #4-600 34-1/2 13 4-15/16
T-H4306-9T 320 Over Head Hub Opening 4 #4-600 (2) #6-350 34-1/2 13 4-15/16
T-H4308Q 320 Over Head 3" Hub 4 (2) #6-250 (2) #6-250 26-13/16 13 4-15/16
T-H4308U 320 Over Head Hub Cover Plate 4 (2) #6-250 (2) #6-250 26-13/16 13 4-15/16
T-H4309Q 320 Over Head 3" Hub 4 (2) #6-350 (2) #6-350 34-1/2 13 4-15/16
T-H4309U 320 Over Head Hub Cover Plate 4 (2) #6-350 (2) #6-350 34-1/2 13 4-15/16

320 Ampere | 4 Jaw | Lever Bypass Offset Bused Meter Sockets | HQ Bypass/Jaw Clamping | Ringless Style | 600 VAC

  • Units rated 320 amperes continuous. Meter Socket short circuit current ratings are greater than 10,000 amperes when used in conjunction with certain types of over current protection. Contact factory for details.
  • NEMA 3R Enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

UT-H4330U

Button

T-H4336-9T

Button
Catalog Number Amps Service Hub # Jaws Line Load H" W" D"
T-H4320A 320 Underground Solid Top 4 3/8" Studs 3/8" Studs 26 15 5-11/16
UT-H4326-9A 320 Underground Solid Top 4 #4-600 (2) #6-350 26 15 5-11/16
T-H4329A 320 Underground Solid Top 4 (2) #6-350 (2) #6-350 26 15 5-11/16
T-H4330U 320 Overhead/Underground Hub Cover Plate 4 3/8" Studs 3/8" Studs 36-5/8 15 5-11/16
UT-H4330U 320 Overhead/Underground Hub Cover Plate 4 3/8" Studs 3/8" Studs 36-5/8 15 5-11/16
T-H4336U 320 Overhead/Underground Hub Cover Plate 4 #4-600 #4-600 36-5/8 15 5-11/16
T-H4336-9T 320 Overhead/Underground Hub Opening 4 #4-600 (2) #6-350 36-5/8 15 5-11/16
T-H4336-9U 320 Overhead/Underground Hub Cover Plate 4 #4-600 (2) #6-350 36-5/8 15 5-11/16
T-H4338U 320 Overhead/Underground Hub Cover Plate 4 (2) #6-250 (2) #6-250 29 15 5-11/16
T-H4339T 320 Overhead/Underground Hub Opening 4 (2) #6-350 (2) #6-350 36-5/8 15 5-11/16
T-H4340U 320 Overhead/Underground Hub Cover Plate 4 3/8" Studs 3/8" Studs 28-1/2 18 5-11/16
Multi Position

100 Ampere | 4 Jaw | Multi Position Meter Sockets | 2, 3, 4, 5 & 6 Positions | Horizontal | Ringless Style | 600 VAC

  • Add prefix G for factory installed, grounded 5th terminal.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

T-4R1121B

Button
Catalog Number Positions Service Hub Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-2R1121A 2 Underground Solid Top #6-250 #8-2/0 14-1/8 24-5/16 4-1/2
T-2R1121B 2 Overhead/Underground Hub Opening #6-250 #8-2/0 14-1/8 24-5/16 4-1/2
T-2R1121C 2 Overhead/Underground Hub Cover Plate #6-250 #8-2/0 14-1/8 24-5/16 4-1/2
T-3R1121B 3 Overhead/Underground Hub Opening #6-250 #8-2/0 14-1/8 32-15/32 4-1/2
T-3R1121C 3 Overhead/Underground Hub Cover Plate #6-250 #8-2/0 14-1/8 32-15/32 4-1/2
T-4R1121A 4 Underground Solid Top #6-250 #8-2/0 14-1/8 40-5/8 4-1/2
T-4R1121B 4 Overhead/Underground Hub Opening #6-250 #8-2/0 14-1/8 40-5/8 4-1/2
T-4R1121C 4 Overhead/Underground Hub Cover Plate #6-250 #8-2/0 14-1/8 40-5/8 4-1/2
T-5R1121B 5 Overhead/Underground Hub Opening #6-250 #8-2/0 14-1/8 48-25/32 4-1/2
T-5R1121C 5 Overhead/Underground Hub Cover Plate #6-250 #8-2/0 14-1/8 48-25/32 4-1/2
T-6R1131B 6 Overhead/Underground Hub Opening #6-350 #8-2/0 14-1/8 56-15/16 4-1/2
T-6R1131C 6 Overhead/Underground Hub Cover Plate #6-350 #8-2/0 14-1/8 56-15/16 4-1/2

100 & 200 Ampere | 4 Jaw | Multi Position End Feed Meter Socket | 2, 3, 4, 5 & 6 Position | Horizontal | Ringless Style
| 600 VAC

  • Cat. suffix 4 left end feed, suffix 5 right end feed, suffix 6 left or right end feed. Add prefix G for factory installed, grounded 5th terminal.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

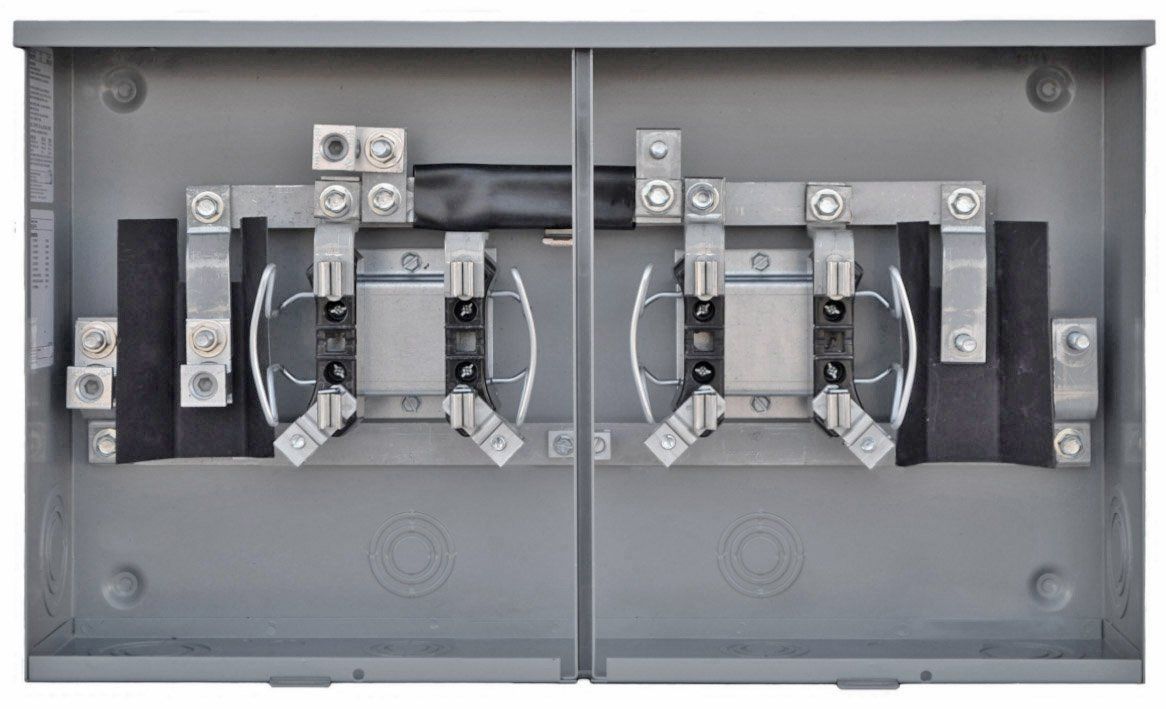

2R1621A

Button
Catalog Number Number Positions Amps Service Hub Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-2R1421B 2 - Left Feed 100 Overhead/Underground (1) Small Hub Opening/(1) S Hub Cover #6-250 #8-2/0 14-1/8 20-5/32 5-3/8
2R1421N 2 - Left Feed 100 Overhead/Underground (1) 2" Hub/(1) Small Hub Cover #6-250 #8-2/0 14-1/8 20-5/32 5-3/8
2R1621A 2 - L or R Feed 100 Underground Solid Top #6-250 #8-2/0 14-1/8 24-5/32 5-3/8
T-2R2432U 2 - Left Feed 200 Overhead/Underground (2) Large Hub Cover #6-350 #8-2/0 14-1/8 20-5/32 5-3/8
T-2R2632B 2 - L or R Feed 200 Overhead/Underground (1) Hub Opening/(1) Small Hub Cover #6-350 #8-2/0 14-1/8 24-5-32 5-3/8
T-3R1421B 3 - Left Feed 100 Overhead/Underground (1) Small Hub Opening/(1) Small Hub Cover #6-250 #8-2/0 14-1/8 28-5/16 5-3/8
UT-3R1421N 3 - Left Feed 100 Overhead/Underground (1) 2" Hub/(1) Small Hub Cover #6-250 #8-2/0 14-1/8 28-5/16 5-3/8
4R1421A 4 - Left Feed 100 Underground Solid Top #6-250 #8-2/0 14-1/8 36-15/32 5-3/8
4R1421N 4 - Left Feed 100 Overhead/Underground (1) 2" Hub/(1) Small Hub Cover #6-250 #8-2/0 14-1/8 36-15/32 5-3/8
5R1421P 5 - Left Feed 100 Overhead/Underground (1) 2 1/2" Hub/(1) Small Hub Cover #6-250 #8-2/0 14-1/8 44-5/8 5-3/8
6R1431B 6 - Left Feed 100 Overhead/Underground (1) Small Hub Opening/(1) Small Hub Cover #6-350 #8-2/0 14-1/8 52-25/32 5-3/8
6R1431N 6 - Left Feed 100 Overhead/Underground (1) 2" Hub/(1) Small Hub Cover #6-350 #8-2/0 14-1/8 52-25/32 5-3/8
6R1431P 6 - Left Feed 100 Overhead/Underground (1) 2 1/2" Hub/(1) Small Hub Cover #6-350 #8-2/0 14-1/8 52-25/32 5-3/8

200 Ampere | 4 Jaw | Multi Position Meter Sockets | 2, 3, 4, 5 & 6 Positions | Horizontal | Ringless Style | 600 VAC

  • Add prefix G for factory installed, grounded 5th terminal.
  • G-90 galvanized steel, NEMA 3R enclosures, UL (Underwriters Laboratories) label available on most units. Add prefix U for UL label.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

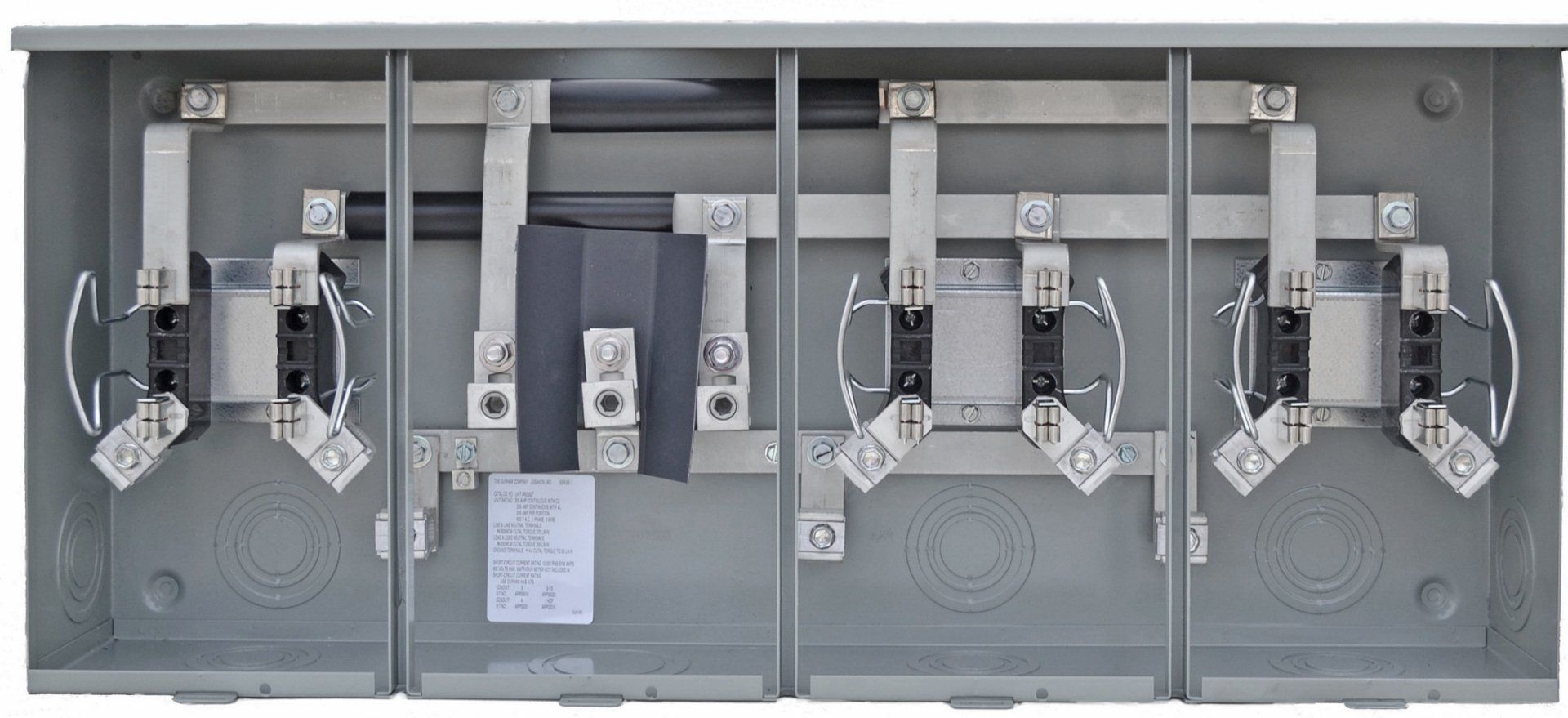

T-3R2332T

Button
Catalog Number Positions Service Hub Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
T-2R2332A 2 Undergroung Solid Top #6-350 #8-250 14-1/8 24-5/16 5-3/8
T-2R2332T 2 Overhead/Underground Large Hub Opening #6-350 #8-250 14-1/8 24-5/16 5-3/8
T-2R2332U 3 Overhead/Underground Large Hub Cover #6-350 #8-250 14-1/8 24-5/16 5-3/8
T-3R2332T 3 Overhead/Underground Large Hub Opening #6-350 #8-250 14-1/8 32-15/32 5-3/8
T-3R2332U 3 Overhead/Underground Large Hub Cover #6-350 #8-250 14-1/8 32-15/32 5-3/8
T-3R2352U 3 Overhead/Underground Large Hub Cover #1/0-500 #8-250 14-1/8 32-15/32 5-3/8
T-4R2352A 4 Underground Solid Top #1/0-500 #8-250 14-1/8 40-5/8 5-3/8
T-4R2352T 4 Overhead/Underground Large Hub Opening #1/0-500 #8-250 14-1/8 40-5/8 5-3/8
T-4R2352U 4 Overhead/Underground Large Hub Cover #1/0-500 #8-250 14-1/8 40-5/8 5-3/8
T-4R2392U 4 Overhead/Underground Large Hub Cover (2) #1/0-500 #8-250 14-1/8 46-5/8 5-3/8
T-5R2392TT 5 Overhead/Underground (2) Large Hub Opening (2) #1/0-500 #8-250 14-1/8 54-25/32 5-3/8
T-5R2392UU 5 Overhead/Underground (2) Large Hub Cover (2) #1/0-500 #8-250 14-1/8 54-25/32 5-3/8
T-6R2392TT 6 Overhead/Underground (2) Large Hub Opening (2) #1/0-500 #8-250 14-1/8 62-15/16 5-3/8
T-6R2392UU 6 Overhead/Underground (2) Large Hub Cover (2) #1/0-500 #8-250 14-1/8 62-15/16 5-3/8
Socket Breaker Enclosures

UL67 & NEC 2023 COMPLIANT

Socket Breaker Combinations | 4 Jaw | Single Phase | 100 Ampere | Ring & Ringless | 600 VAC

  • NEC 2023 Compliant options available.
  • Line side connectors are #6-2/0 CU/AL, units supplied with load distribution center have (3) #14-1/0 CU/AL connectors.
  • Ring units are supplied less sealing ring.
  • G-90 galvanized steel, NEMA 3R enclosures, add “U” prefix to catalog number for UL label.
  • Plug-in breaker units will accept Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL breakers.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

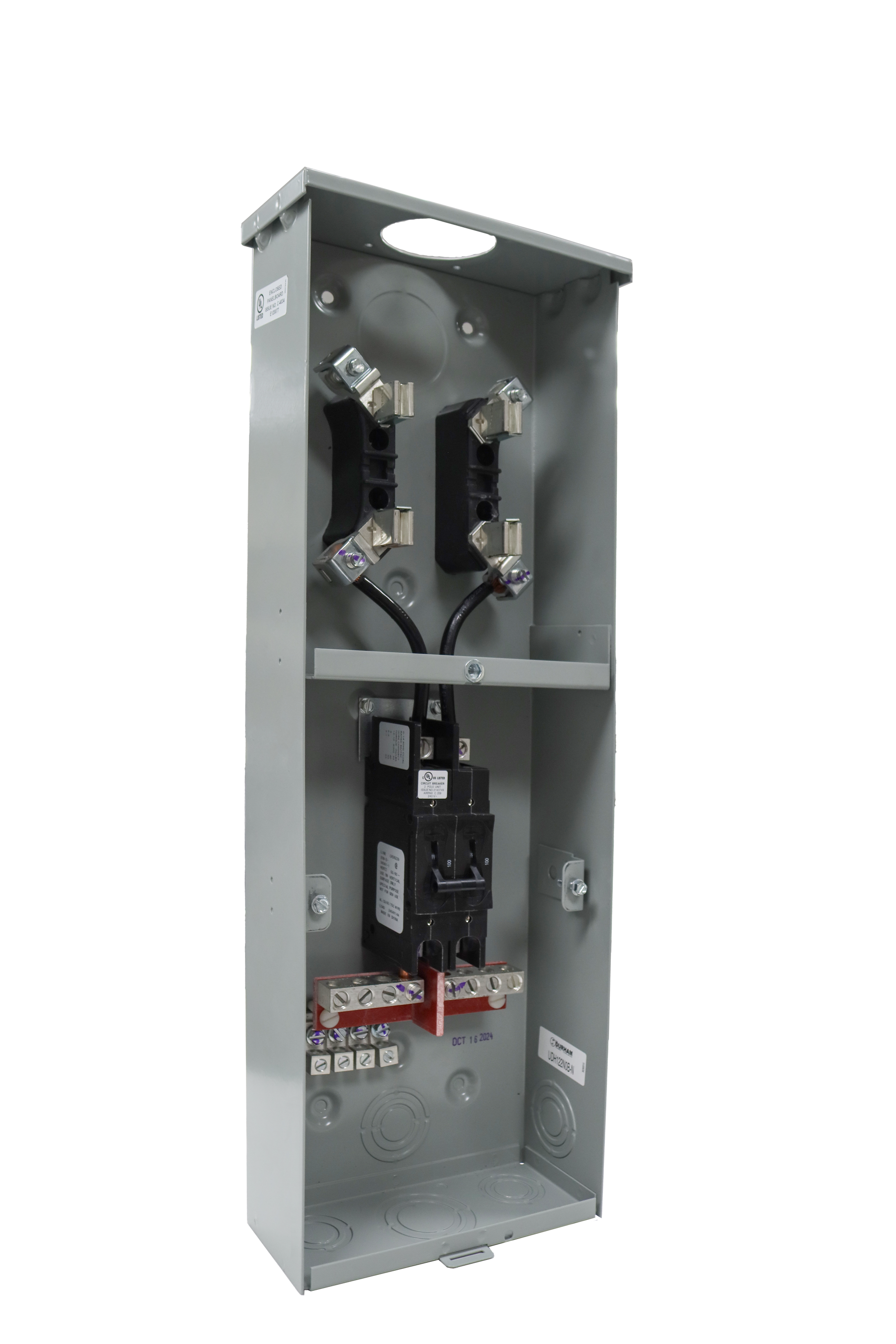

DH122N0B

Button
Ringless Ring # Poles Provisions For Additional Breakers Plug In 2 Pole Hydraulic Breaker Installed 2 Pole Plug-In Breaker Installed Load & Neutral Connectors Hub Dimensions H" Dimensions W" Dimensions D"
H120N0B RH120N0B 2 (1) 2-Pole - - - Hub Opening 23-3/4 8 3-1/2
- RH120N0M 2 (1) 2-Pole - - - 1-1/2" Hub 23-3/4 8 3-1/2
H122N0B RH122N0B 2 - 100 Amp - #14-1/0 Hub Opening 23-3/4 8 3-1/2
H122N0M - 2 - 100 Amp - #14-1/0 1-1/2" Hub 23-3/4 8 3-1/2
- RH122N0N 2 - 100 Amp - #14-1/0 2" Hub 23-3/4 8 3-1/2
- DRH122N0N 2 - 100 Amp - (3) #14-1/0 2" Hub 23-3/4 8 3-1/2
- DRH122W0B 2 - 100 Amp - (3) #14-1/0 Hub Opening 23-3/4 11 4-3/8
DH122N0B - 2 - 100 Amp - (3) #14-1/0 Hub Opening 23-3/4 8 3-1/2
DH122W0B - 2 - 100 Amp - (3) #14-1/0 Hub Opening 23-3/4 11 4-3/8
DP122N0B - 2 - - 100 Amp (3) #14-1/0 Hub Opening 23-3/4 8 3-31/64
DP122W0B - 2 - - 100 Amp (3) #14-1/0 Hub Opening 23-3/4 11 4-23/64
- DRP122N0B 2 - - 100 Amp (3) #14-1/0 Hub Opening 23-3/4 8 3-31/64
- DRP122N0C 2 - - 100 Amp (3) #14-1/0 Hub Cover Plate 23-3/4 8 3-31/64
P120N0B - 2 - - - #14-1/0 Hub Opening 23-3/4 8 3-31/64
P120W0B - 2 (1) 2-Pole - - #14-1/0 Hub Opening 23-3/4 11 4-23/64
P122N0B - 2 - - 100 Amp #14-1/0 Hub Opening 23-3/4 8 3-31/64
P122W0B - 2 - - 100 Amp #14-1/0 Hub Opening 23-3/4 11 4-23/64
P140W0B - 4 (2) 2-Pole - - - Hub Opening 22 11 4-3/8
P140W0C - 4 (2) 2-Pole - - - Hub Cover Plate 22 11 4-3/8
P142W0B - 4 (2) 2-Pole - 100 Amp #14-1/0 Hub Opening 22 11 4-3/8
P142W0M - 4 (2) 2-Pole - 100 Amp #14-1/0 1-1/2" Hub 22 11 4-3/8
- RP142W0L 4 (2) 2-Pole - 100 Amp #14-1/0 1-1/4" Hub 22 11 4-3/8

Socket Breaker Combinations | 4 Jaw | Single Phase | 150 & 200 Ampere | Ring & Ringless | 600 VAC

  • NEC 2020 Compliant options available.
  • Line side connectors are #6-350MCM CU-UL, units supplied with load distribution connectors have (2) #6-250MCM CU/AL, (1) #14-2/0
  • CU/AL connectors.
  • Units without load and neutral distribution connectors have #6-250MCM CU-AL connectors.
  • Ring units are supplied less sealing ring.
  • G-90 galvanized steel, NEMA 3R enclosures, add “U” prefix to catalog number for UL label.
  • Plug-in breaker units will accept Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL breakers.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

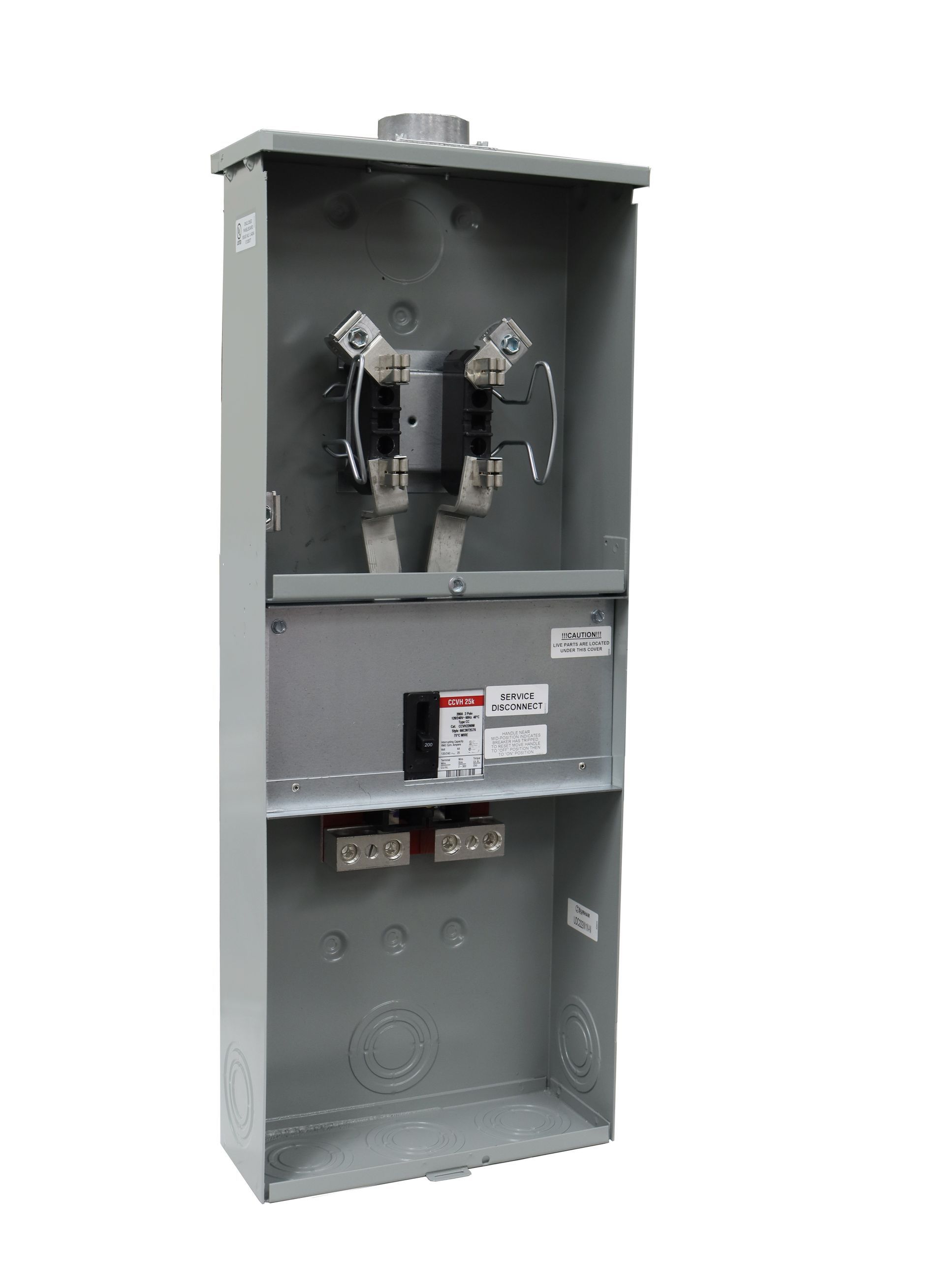

DC222W1N

Button
Ringless Ring # Poles 2 Pole Bolt-In Breaker Installed Provisions For Additional Plug-In Breakers Load & Neutral Connectors Hub Dimensions H" Dimensions W" Dimensions D"
C222N1C RC222N1C 2 200 Amp - 2/0-250 Hub Cover Plate 27-3/4 8 4-3/8
C222W1B - 2 200 Amp - 2/0-250 Hub Opening 29 11 4-3/8
DC222W1B DRC222W1B 2 200 Amp - (2) #6-250 (1) #14-2/0 Hub Opening 29 11 4-3/8
DC222W1C DRC222W1C 2 200 Amp - (2) #6-250 (1) #14-2/0 Hub Cover Plate 29 11 4-3/8
DC222W1N - 2 200 Amp - (2) #6-250 (1) #14-2/0 2" Hub 29 11 4-3/8
DC222W1P - 2 200 Amp - (2) #6-250 (1) #14-2/0 2-1/2" Hub 29 11 4-3/8
DX222W1B - 2 200 Amp - (2) #6-250 (1) #14-2/0 Hub Opening 29 11 4-3/8
C242W1B - 4 200 Amp (1) 2-Pole 2/0-250 HUb Opening 29-3/8 12 4-3/8
C242W1N - 4 200 Amp (1) 2-Pole 2/0-250 2" Hub 29-3/8 12 4-3/8
DC522W1N - 2 150 Amp - (2) #6-250 (1) #14-2/0 Hub Opening 29 11 4-3/8
C262W1B RC262W1B 4 200 Amp (2) 2-Pole 2/0-250 Hub Opening 29-3/8 12 4-3/8
C262W1C RC262W1C 4 200 Amp (2) 2-Pole 2/0-250 Hub Cover Plate 29-3/8 12 4-3/8
C262W1N - 4 200 Amp (2) 2-Pole 2/0-250 2" Hub 29-3/8 12 4-3/8

Socket Breaker Combinations | 4 Jaw | Single Phase | 200 Ampere | Overhead/Underground | W/Wireway
| Ring & Ringless | 600 VAC

  • Ring units supplied less sealing ring.
  • **Provisions for (2) 2-pole plug-in breakers (100 Amp max).
  • **1010206B & 1010040 units will accept plug-in breakers Square-D Type: Hom,
  • Eaton Type: BR, Siemens Type: QP, GE Type: THQL.breakers.
  • Plug-in breaker pad for 1010206B is wired in series with main breaker.
  • 1010206B has solid bottom front instead of breaker access door.
  • Plug-in breaker pad for 1010040 is wired in parallel with main breaker.
  • *1009051 has UL label. Contact representative or factory about UL for other units.
  • G-90 galvanized steel, NEMA 3R enclosures.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

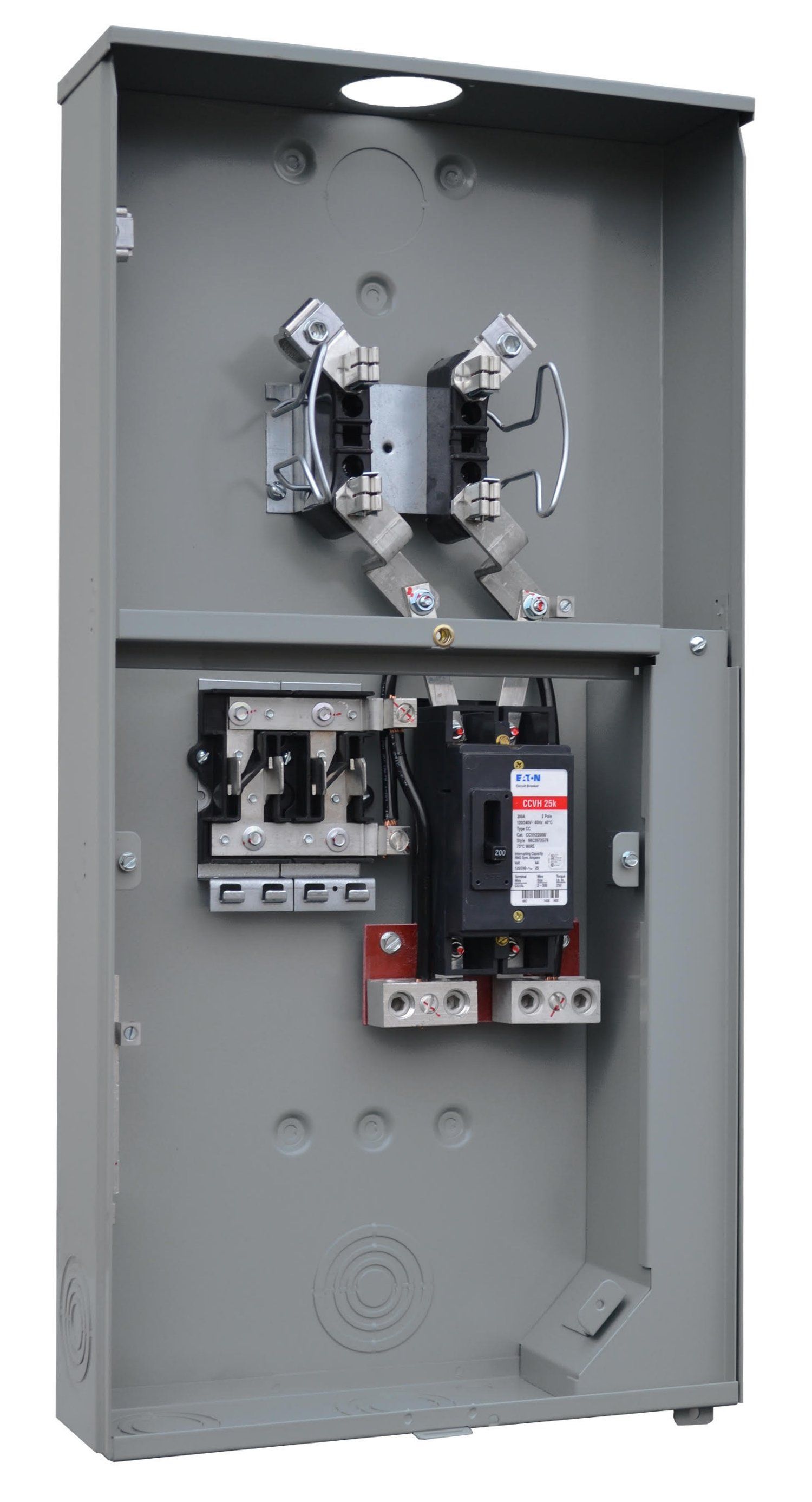

1010206B

Button
Ringless Ring # Poles 2 Pole Bolt-In Breaker Installed Provisions For Additional Plug-In Breakers Wire Size CU-AL Line Wire Size CU-AL Load Hub Dimensions H" Dimensions W" Dimensions D"
*1009051 - 2 200 Amp - 3/8" Stud (2) #6-250 Hub Opening 29 13 4-3/8
1010229 - 2 200 Amp - #6-350 (2) #6-250 Hub Opening 29 13 4-3/8
**1010206B - 2 200 Amp (2) 2-Pole #6-350 (2) #6-250 Hub Opening 30 15 4-3/8
- **1010040 2 200 Amp (2) 2-Pole #6-350 (2) #6-250 Hub Opening 30 15 4-3/8

Socket Breaker Combinations | 4 Jaw | Single Phase | 320 Ampere | HQ Lever Bypass |  Ringless | 600 VAC

  • NEC 2020 Compliant options available.
  • “PD” Series Pedestals for these units are catalog #1006851A, &1011503
  • **Plug-in breaker units will accept Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL breakers. Plug-in breakers are wired in parallel with the main breaker.
  • 1011455A has solid bottom front instead of breaker access door.
  • *Unit has UL label.
  • NEMA 3R enclosures.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

1011455A

Button
Catalog Number Bolt-In Breakers Installed Provisions For Breakers Hub Wire CU-AL Line Wire CU-AL Load Height" Width" Depth"
*UHC344N3T (2) 2-Pole 200 Amp - Large Hub Opening (2) #6-250 #2/0-250 38-57/64 15-1/2 4-5/16
*UHC344N5T (2) 2-Pole 200 Amp - Large Hub Opening (2) #6-350 #2/0-250 42-21/32 15-1/2 4-5/16
*UHC364N4T (2) 2-Pole 200 Amp **(1) 2-Pole Large Hub Opening (2) #3-350 #2/0-250 42-21/32 15-1/2 4-5/16
1011455A (2) 2-Pole 200 Amp **(2) 2-Pole Large Hub Opening (2) #6-350 (2) #6-350 49-21/32 17-1/2 6-1/4
Socket Breaker Enclosures | Multi Position

100 Ampere Socket Breaker Combinations | 4 Jaw | Multi Position 2, 3, 4, 5 & 6 Positions | Horizontal | Ringless | 600 VAC

  • 100 ampere units are supplied without breakers.
  • 100 ampere units will accept Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL plug-in breakers.
  • NEMA 3R Enclosures.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

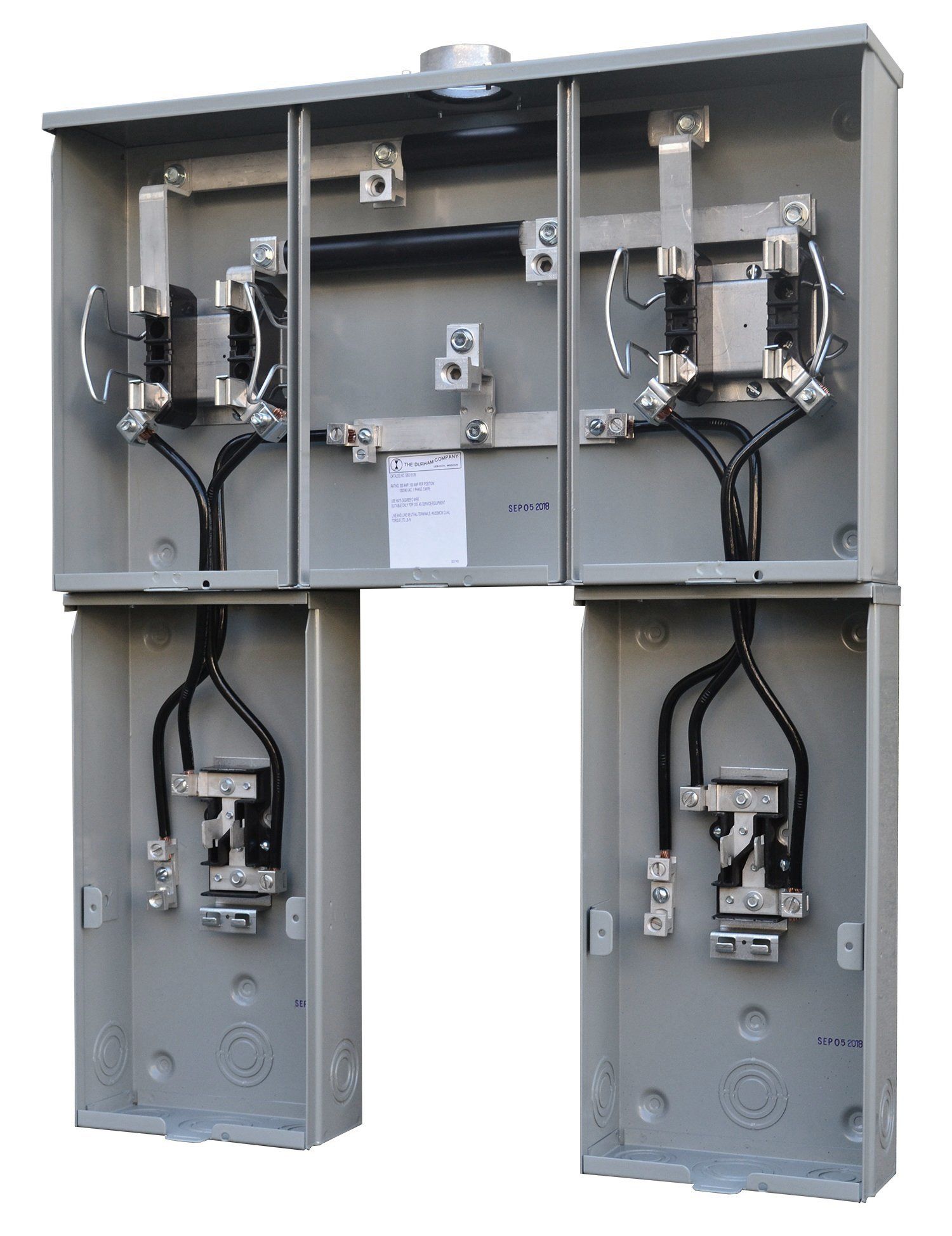

SBG1012N

Button
Catalog Number # Positions Provisions For 100 Amp Plug-In Breakers Hub Wire Size CU-AL Line Dimensions H" Dimensions W" Dimensions D"
SBG1012A 2 (2) 2-Pole Solid Top #6-250 30-3/8 24-5/16 4-1/2
SBG1012B 2 (2) 2-Pole Hub Opening #6-250 30-3/8 24-5/16 4-1/2
SBG1012N 2 (2) 2-Pole 2" Hub #6-250 30-3/8 24-5/16 4-1/2
SBG1013A 3 (3) 2-Pole Solid Top #6-250 30-3/8 32-15/32 4-1/2
SBG1013B 3 (3) 2-Pole Hub Opening #6-250 30-3/8 32-15/32 4-1/2
SBG1014A 4 (4) 2-Pole Solid Top #6-250 30-3/8 40-5/8 4-1/2
SBG1014B 4 (4) 2-Pole Hub Opening #6-250 30-3/8 40-5/8 4-1/2
SBG1014C 4 (4) 2-Pole Hub Cover Plate #6-250 30-3/8 40-5/8 4-1/2
SBG1014N 4 (4) 2-Pole 2" Hub #6-250 30-3/8 40-5/8 4-1/2
SBG1014P 4 (4) 2-Pole 2-1/2" Hub #6-250 30-3/8 40-5/8 4-1/2
SBG1015A 5 (5) 2-Pole Solid Top #6-350 30-3/8 48-25/32 4-1/2
SBG1015B 5 (5) 2-Pole Hub Opening #6-350 30-3/8 48-25/32 4-1/2
SBG1015C 5 (5) 2-Pole Hub Cover Plate #6-350 30-3/8 48-25/32 4-1/2
SBG1016A 6 (6) 2-Pole Solid Top #6-350 30-3/8 56-15/16 4-1/2
SBG1016B 6 (6) 2-Pole Hub Opening #6-350 30-3/8 56-15/16 4-1/2
SBG1016C 6 (6) 2-Pole Hub Cover Plate #6-350 30-3/8 56-15/16 4-1/2
SBG1016P 6 (6) 2-Pole 2-1/2" Hub #6-350 30-3/8 56-15/16 4-1/2

200 Ampere Socket Breaker Combinations | 4 Jaw | Multi Position 2, 3 4, 5 & 6 Positions | Horizontal | Ringless | 600 VAC

  • *Has provisions for (2) 1/0-350MCM connectors.
  • NEMA 3R enclosures.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

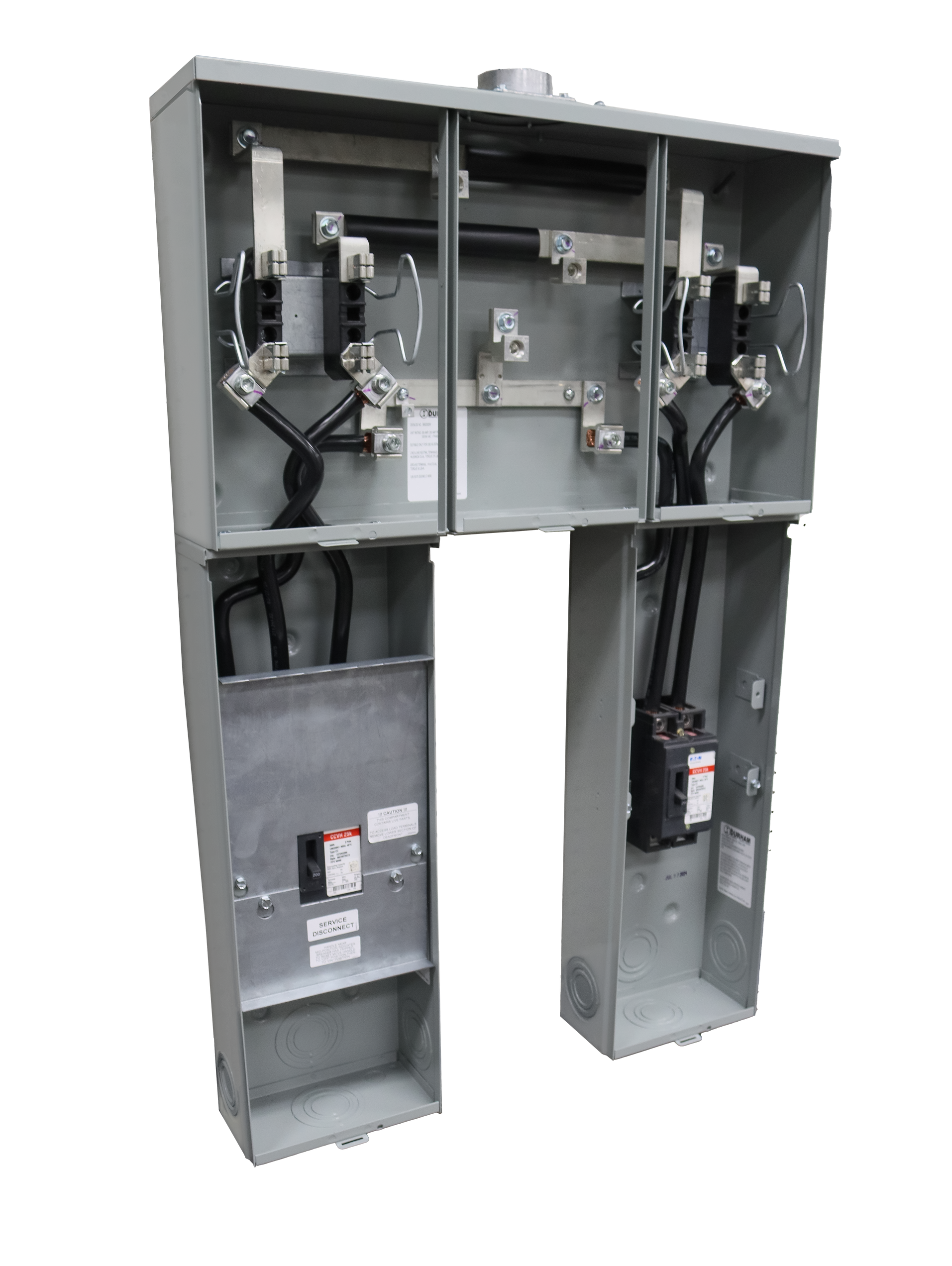

SBG2024T

Button
Catalog Number # Positions 200 Amp Bolt-In Breakers Installed Hub Wire CU-AL Line LoadWire CU-AL Dimension H" Dimension W" Dimension D"
SBG2022A 2 (2) 2-Pole Solid Top #6-250 #2/0-250 37-3/8 24-5/16 5-3/8
SBG2022T 2 (2) 2-Pole (LG) Hub Opening #6-250 #2/0-250 37-3/8 24-5/16 5-3/8
SBG2022U 2 (2) 2-Pole (LG) Hub Cover Plate #6-250 #2/0-250 37-3/8 24-5/16 5-3/8
SBG2023A 3 (3) 2-Pole Solid Top #6-350 #2/0-250 37-3/8 32-15/32 5-3/8
SBG2023T 3 (3) 2-Pole (LG) Hub Opening #6-350 #2/0-250 37-3/8 32-15/32 5-3/8
SBG2023U 3 (3) 2-Pole (LG) Hub Cover Plate #6-350 #2/0-250 37-3/8 32-15/32 5-3/8
SBG2024A 4 (4) 2-Pole Solid Top 1/0-500 #2/0-250 37-3/8 40-5/8 5-3/8
SBG2024T 4 (4) 2-Pole (LG) Hub Opening 1/0-500 #2/0-250 37-3/8 40-5/8 5-3/8
SBG2024U 4 (4) 2-Pole (LG) Hub Cover Plate 1/0-500 #2/0-250 37-3/8 40-5/8 5-3/8
* SBG2025UU 5 (5) 2-Pole (2) (LG) Hub Cover Plate * 1/0-500 #2/0-250 37-3/8 55 5-3/8
* SBG2026A 6 (6) 2-Pole Solid Top * 1/0-500 #2/0-250 37-3/8 63-1/8 5-3/8
* SBG2026U 6 (6) 2-Pole (LG) Hub Cover Plate * 1/0-500 #2/0-250 37-3/8 63-1/8 5-3/8
Breaker Enclosures

Breaker Enclosures | Single Phase | 600 VAC | 50, 70 & 100 Ampere Hydraulic | 125 Through 225 Ampere Current Limiting

  • Acceptable 2-pole plug-in breakers: Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL breakers.
  • Plug-In breaker spaces are wired in parallel with the main breaker.
  • Add “U” prefix to catalog number for UL label.
  • G-90 galvanized steel, NEMA 3R enclosures.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

2022B

Button
Catalog Number Provisions For Breakers Hydraulic Magnetic Circuit Breakers Wire CU-AL Line Wire CU-AL Load Hub Dimension H" Dimension W" Dimension D"
1931083B 4 Slots Provisions For Bkr. - - Hub Opening 16-1/4 8 3-1/2
1931083K 4 Slots Provisions For Bkr. - - 1" Hub 16-1/4 8 3-1/2
1931083K 4 Slots Provisions For Bkr. - - 1-1/2" Hub 16-1/4 8 3-1/2
1941083N 4 Slots Provisions For Bkr. - - 2" Hub 16-1/4 8 3-1/2
3521083L 2 Slots 2 Pole 50 Amp #14-1/0 #14-1/0 1-1/4" Hub 16-1/4 8 3-1/2
3711083N 3 Slots 1 Pole 70 Amp #14-1/0 #14-1/0 2" Hub 16-1/4 8 3-1/2
3811083N 3 Slots 1 Pole 100 Amp #14-1/0 #14-1/0 2" Hub 16-1/4 8 3-1/2
3821083B 2 Slots 2 Pole 100 Amp #14-1/0 #14-1/0 Hub Opening 16-1/4 8 3-1/2
3861083B 2 Slots 2 Pole 100 Amp #14-1/0 #14-1/0 Hub Opening 16-1/4 8 3-1/2
Catalog Number With Breakers Installed Wire CU-AL Line Wire CU-AL Load Hub Dimension H" Dimension W" Dimension D"
2020B Provisions For Bkr. - - Hub Opening 23-3/16 8 4-23/64
1252B 2 Pole 125 Amp 2/0-250 2/0-250 Hub Opening 16-1/4 8 4-23/64
1552B 2 Pole 150 Amp 2/0-250 2/0-250 Hub Opening 16-1/4 8 4-23/64
1752B 2 Pole 175 Amp 2/0-250 2/0-250 Hub Opening 16-1/4 8 4-23/64
2022A 2 Pole 200 Amp 2/0-250 2/0-250 Solid Top 16-1/4 8 4-23/64
2022B 2 Pole 200 Amp 2/0-250 2/0-250 Hub Opening 16-1/4 8 4-23/64
2052B 2 Pole 225 Amp 2/0-250 2/0-250 Hub Opening 16-1/4 8 4-23/64

Breaker Enclosures | Single Phase
150 & 200 Ampere | 600 VAC

  • Acceptable 2-pole plug-in breakers: Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL breakers.
  • Plug-In breaker spaces are wired in parallel with the main breaker.
  • Add “U” prefix to catalog number for UL label.
  • G-90 galvanized steel, NEMA 3R enclosures.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation

CB262W0N

Button
Catalog Number Unit Rating Installed Main Breaker Rating #Plug-In Poles Wire CU-AL Line Wire CU-AL Load Hub Dimension H" Dimension W" Dimension D"

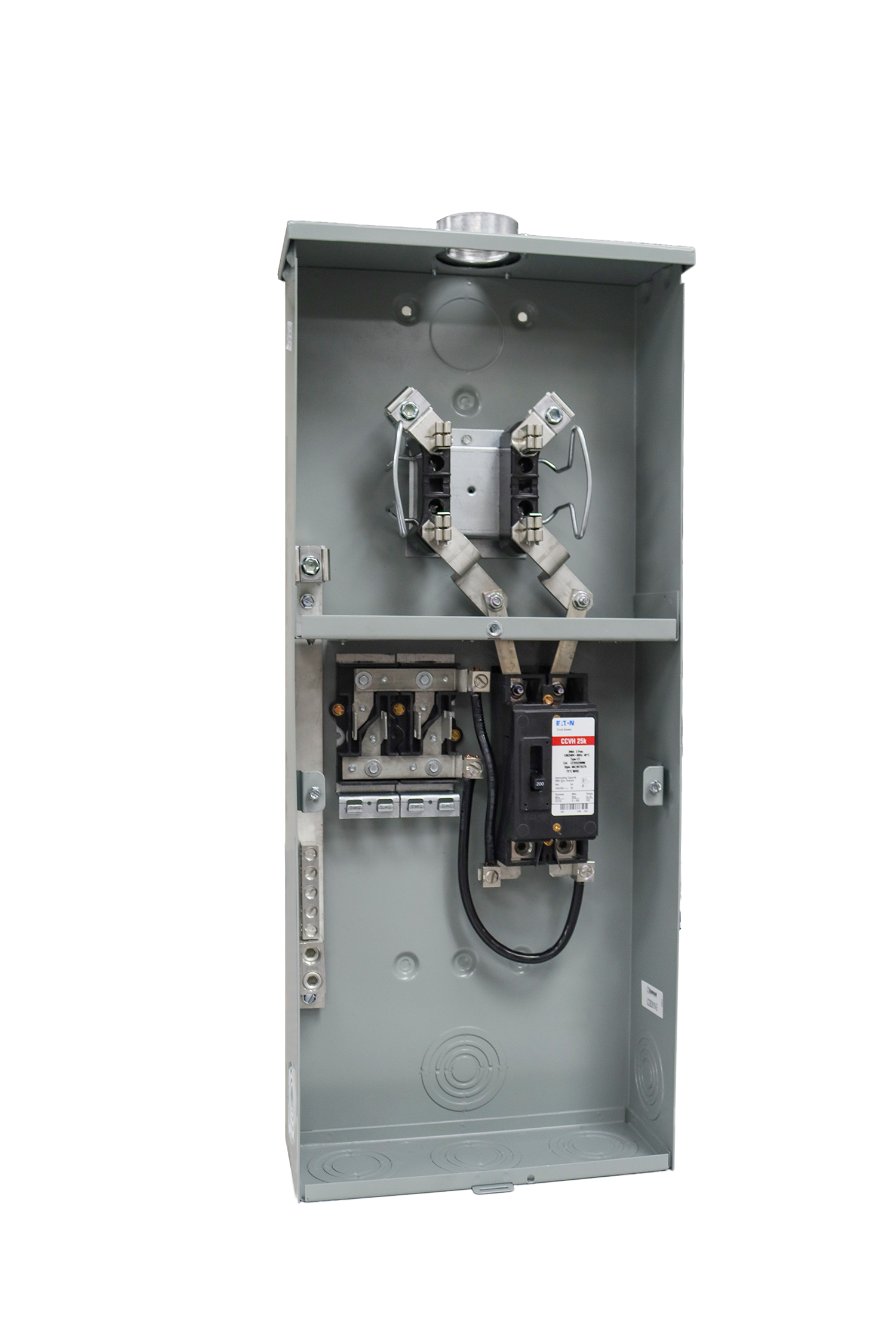

CB542W0B 200 Amps 2 Pole 150 Amps 2 Pole #2/0-300 #2/0-250 HO 23-3/4 12 4-3/8
CB562W0B 200 Amps 2 Pole 150 Amps (2) 2 Pole #2/0-300 #2/0-250 HO 23-3/4 12 4-3/8
CB242W0B 200 Amps 2 Pole 200Amps 2 Pole #2/0-300 #2/0-250 HO 23-3/4 12 4-3/8
CB262W0B 200 Amps 2 Pole 200Amps (2) 2 Pole #2/0-300 #2/0-250 HO 23-3/4 12 4-3/8
CB262W0N 200 Amps 2 Pole 200Amps (2) 2 Pole #2/0-300 #2/0-250 2" Hub 23-3/4 12 4-3/8
Breaker Generator Transfer Switches W/O Metering Provisions

Breaker Generator Transfer Switches | Single Phase | 100 & 200 Ampere |
W/O Metering Provision | 600 VAC

  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate except for the 205 units.
  • NEMA 3R enclosures, add “U” prefix to catalog number for UL label.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
  • Field Installable 50 Amp Twist Lock Male and Female Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number Main Breaker Amps Auxiliary Breaker Amps Hub Wire CU-AL Line Wire CU-AL Load Dimension H" Dimension W" Dimension D"
B114DT50B 100 50 Hub Opening #14-1/0 #6-250, (3) #14-1/0 23-3/8 12 4-23/64
B114DT50C 100 50 Hub Cover Plate #14-1/0 #6-250, (3) #14-1/0 23-3/8 12 4-23/64
B114DT50N 100 50 2" Hub #14-1/0 #6-250, (3) #14-1/0 23-3/8 12 4-23/64
B114DT100C 100 100 Hub Cover Plate #14-1/0 #6-250, (3) #14-1/0 23-3/8 12 4-23/64
B114DT100L 100 100 1-1/4" Hub #14-1/0 #6-250, (3) #14-1/0 23-3/8 12 4-23/64
B204DT50C 200 50 Hub Cover Plate #3-250 (3) #6-250 26-13-32 13 4-3/8

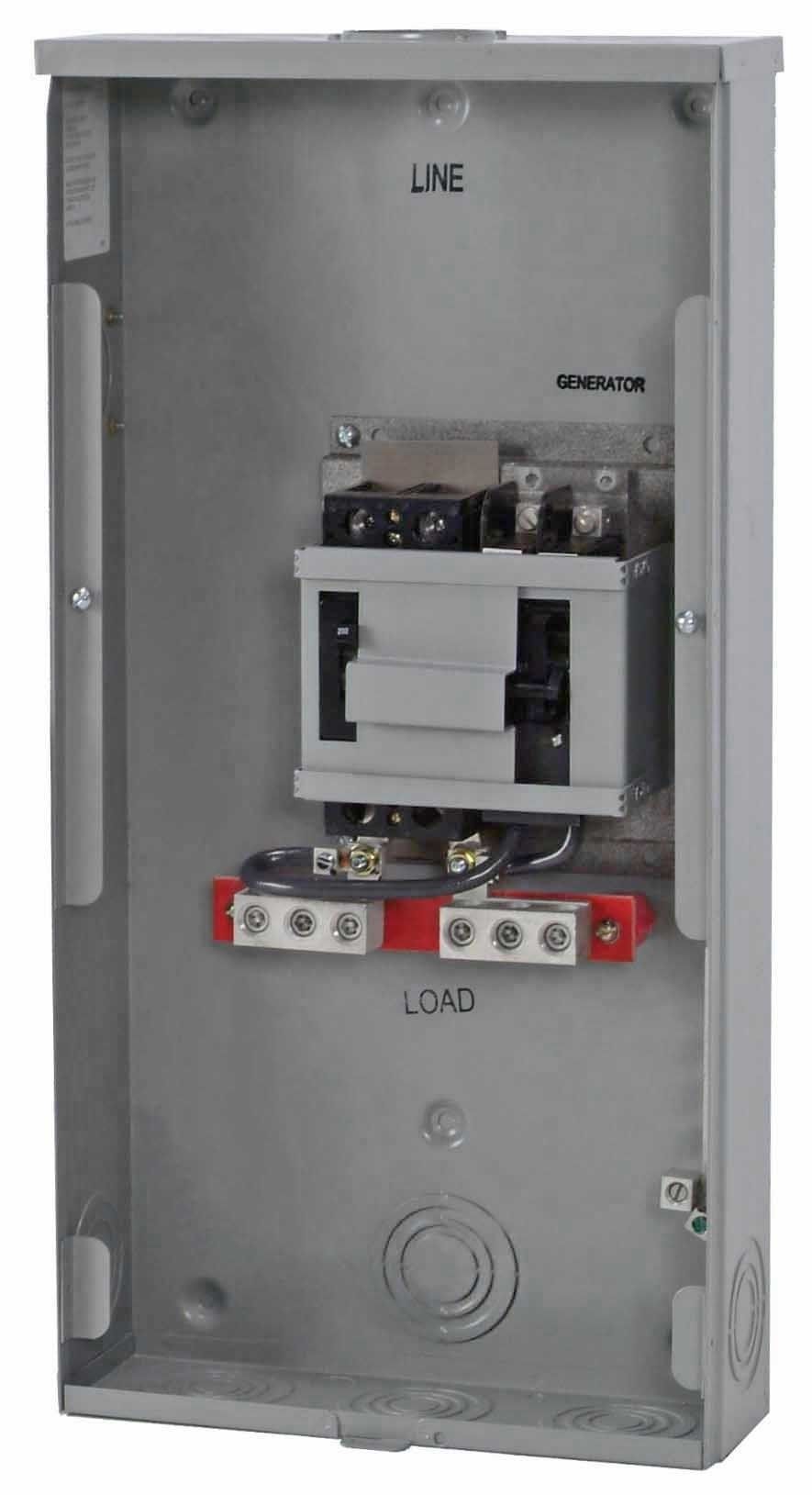

B204DT100B 200 100 Hub Opening #3-250 (3) #6-250 26-13-32 13 4-3/8
B204DT100C 200 100 Hub Cover Plate #3-250 (3) #6-250 26-13-32 13 4-3/8
B204DT100N 200 100 2" Hub #3-250 (3) #6-250 26-13-32 13 4-3/8
B205DT200C 200 200 Hub Cover Plate #3-250 (3) #6-250 27 13 4-3/8
Breaker Generator Transfer Switches With Metering Provisions

Socket Breaker Generator Transfer Switches | 4 Jaw | Single Phase | 100 Ampere | With Metering Provision | Ringless Style | 600 VAC

  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate.
  • NEMA 3R enclosures, add “U” prefix to catalog number for UL label.
  • G-90 galvanized steel.
  • For Meter Socket options see replacement parts & accessories pages.
Knockout Configuation
Catalog Number Main Breaker Amps Auxiliary Breaker Amps W/50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxiliary Connectors Dimension H" Dimension W" Dimension D"
SB114DT50B 100 50 - Hub Open #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT50C 100 50 - Hub Cover Plate #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT50L 100 50 - 1-1/4" Hub #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT50M 100 50 - 1-1/2" Hub #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT50N 100 50 - 2" Hub #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DTR50B 100 50 X Hub Opening #8-2/0 #6-250, (3) #14-1/0 50 Amp Rec. 30-9/32 12 4-23/64
SB114DT100B 100 100 - Hub Opening #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT100C 100 100 - Hub Cover Plate #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT100L 100 100 - 1-1/4" Hub #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT100M 100 100 - 1-1/2" Hub #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64
SB114DT100N 100 100 - 2" Hub #8-2/0 #6-250, (3) #14-1/0 #14-2/0 30-9/32 12 4-23/64

Socket Breaker Generator Transfer Switches | Single Phase | 200 Ampere | With Metering Provision | Ringless Style | 600 VAC

  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate except for the 205 units.
  • For Meter Socket options see replacement parts & accessories pages.
  • G-90 galvanized steel.
  • NEMA 3-R enclosures.
  • Field installable 50 Amp
    Twist Lock Male and Female Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number Main Breaker Amps Auxiliary Breaker Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"
USB204DT50B 200 50 - Hub Opening #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB204DT50C 200 50 - Hub Cover Plate #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB204DT50P 200 50 - 2-1/2" Hub #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB204DTR50B 200 50 X Hub Opening #6-250 (3) #6-250 50 Amp Rec. 34-1/4 13 4-3/8
USB204DTR50C 200 50 X Hub Cover Plate #6-250 (3) #6-250 50 Amp Rec. 34-1/4 13 4-3/8
USB204DTR50N 200 50 X 2" Hub #6-250 (3) #6-250 50 Amp Rec. 34-1/4 13 4-3/8
USB204DT100B 200 100 - Hub Opening #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB204DT100C 200 100 - Hub Cover Plate #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8

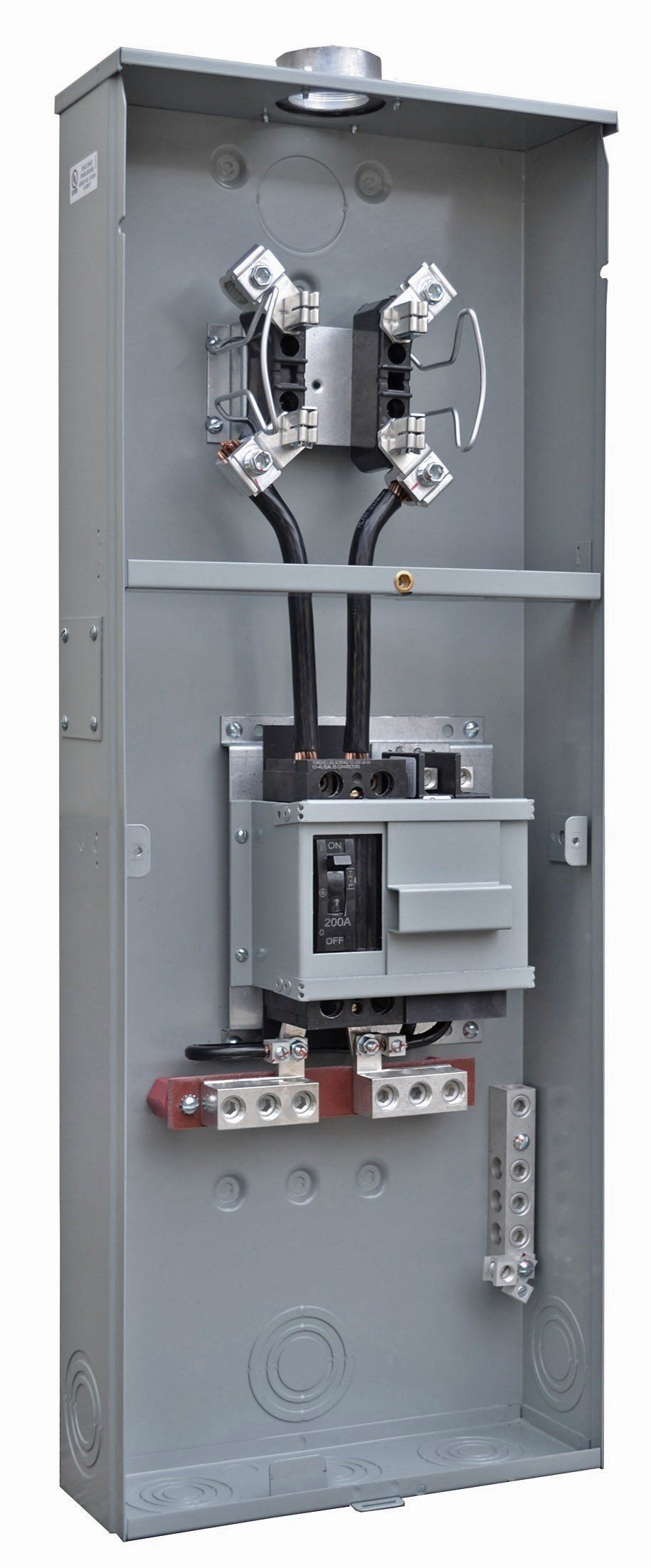

USB204DT100N 200 100 - 2" Hub #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB205DT200B 200 200 - Hub Opening #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB205DT200C 200 200 - Hub Cover Plate #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8
USB205DT200N 200 200 - 2" Hub #6-250 (3) #6-250 #14-1/0 34-1/4 13 4-3/8

Socket Breaker Generator Transfer Switches | Wide | 4 Jaw | Single Phase | 200 Ampere | With Metering Provision | Ringless Style | 600 VAC

  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • *1009883 shipped without receptacle and has a removable bolted cover plate. (1009556 does not have receptacle provisions).
  • Contact Representative or Factory about adding UL label.
  • G-90 galvanized steel.
  • NEMA 3R enclosures.
  • For Meter Socket options see replacement parts & accessories pages.
  • Field installable 50 Amp
    Twist Lock Male and Female Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number Mian Breaker Amps Auxiliary Breaker Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-Al Load Auxilary Connectors Dimension H" Dimension W" Dimension D"

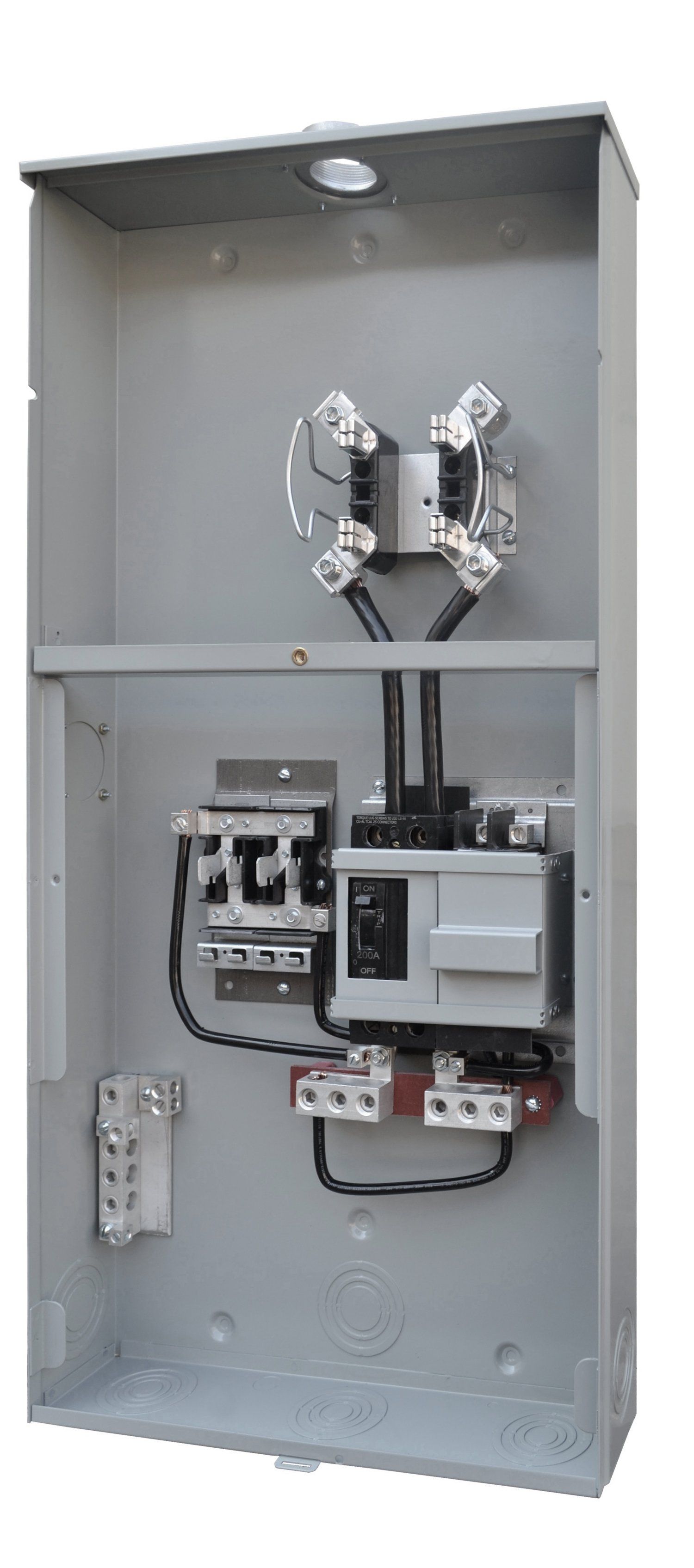

*1009883 200 100 - 2" Hub #6-250 (3) #6-250 #12-1/0 37 17-15/16 4-3/8
1009556 200 100 N/A Hub Cover Plate #6-250 (3) #6-250 #12-1/0 34-1/4 16-3/64 4-3/8

Socket Breaker Generator Transfer Switches | 4 Jaw | Single Phase | 320 Ampere | With Metering Provision | Lever Bypass | Ringless Style | 600 VAC

  • Unit painted gray.
  • Breaker interlock assembly 400 ampere main breaker, standby breaker 200 ampere.
  • 320 amperes continuous, 120/240 VAC.
  • For Meter Socket options see replacement parts & accessories pages.
  • G-90 galvanized steel.
  • NEMA 3R enclosures.
Knockout Configuation
Catalog Number Mian Breaker Amps Auxiliary Breaker Amps Hub Wire CU-AL Line Wire CU-Al Load Auxilary Connectors Height" Width" Depth"

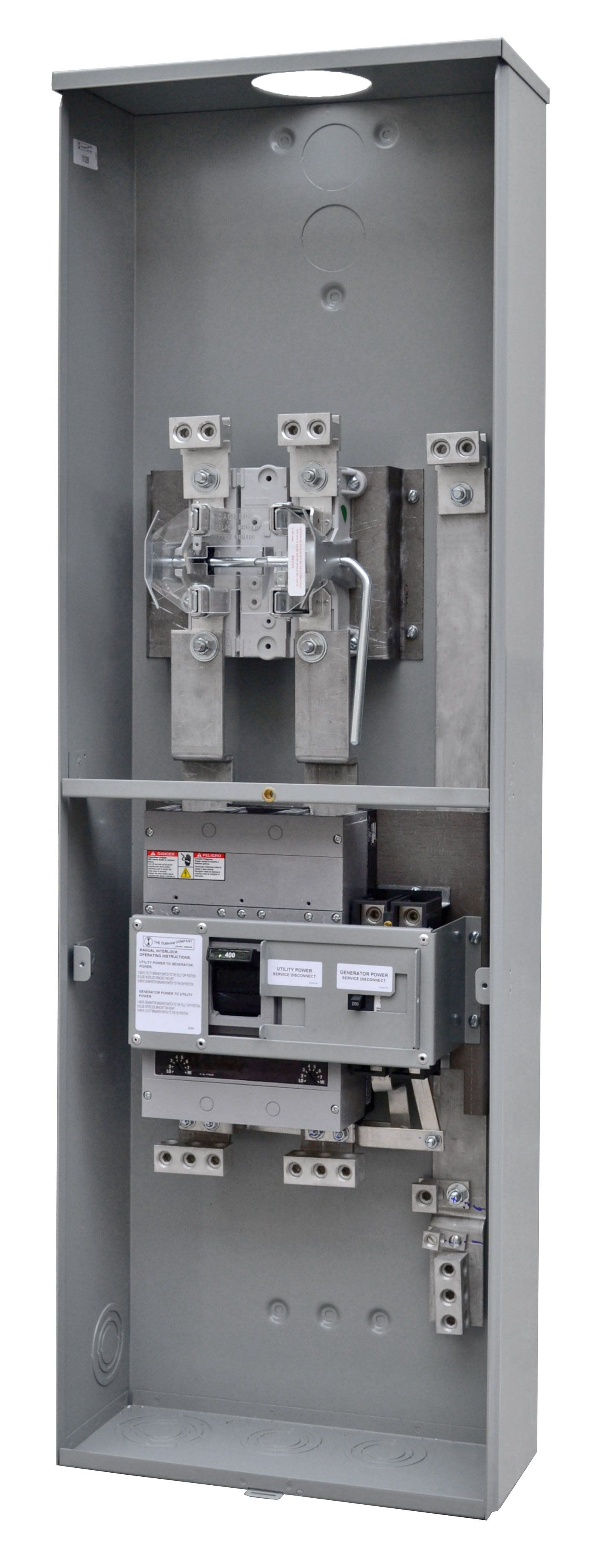

1010288 400 200 Hub Opening (Large) (2) #6-350 (3) #6-250 #2/0-250 49-1/2 16 6-3/4
Generator Transfer Switches With Metering Provisions

Meter Socket Generator Transfer Switches | Self Contained | 4 Jaw | 100 & 200 Ampere | Single Phase | Ringless Style | 600 VAC

  • Switches are double pole/double throw with center off position.
  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired
  • to auxiliary connectors.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate.
  • G-90 galvanized steel.
  • NEMA 3R enclosures.
  • Field Installable 50 Amp
    Twist Lock Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number Main Rating Amps Auxil. Rating Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"

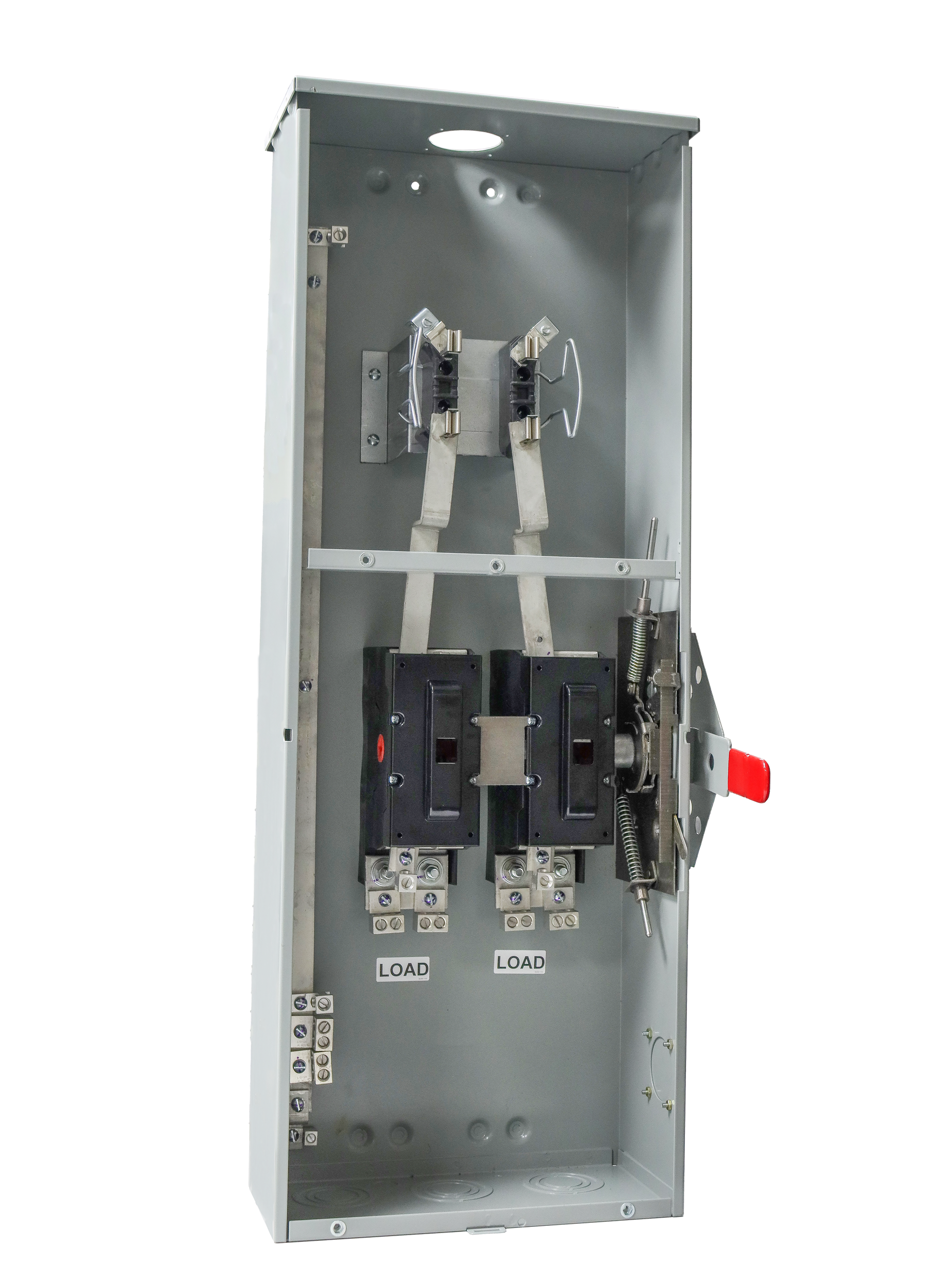

*SV110DT-B 100 100 - Hub Opening #14- 1/0 (4) #14-1/0 #14-1/0 24 14-3/64 8-1/4
*SV110DT-C 100 100 - Hub Cover Plate #14- 1/0 (4) #14-1/0 #14-1/0 24 14-3/64 8-1/4
*SV110DT-N 100 100 - 2" Hub #14- 1/0 (4) #14-1/0 #14-1/0 24 14-3/64 8-1/4
**1005773 100 100 N/A Hub Opening #14- 1/0 #14- 1/0 #14- 1/0 22-5/8 14 8-1/4
SV210DT-B 200 200 - Hub Opening #6-250 (4) #6-250 #6-250 35-15/16 17-15/16 8-1/4
SV210DTR-B 200 200 X Hub Opening #6-250 (4) #6-250 #6-250 35-15/16 17-15/16 8-1/4
SV210DT-C 200 200 - Hub Cover Plate #6-250 (4) #6-250 #6-250 35-15/16 17-15/16 8-1/4
SV210DT-N 200 200 - 2" Hub #6-250 (4) #6-250 #6-250 35-15/16 17-15/16 8-1/4
**1011078 200 200 N/A Hub Cover Plate #6-250 (3 ) #6-250 #6-250 27-5/16 14 8-1/4
**1009847 200 200 N/A Hub Cover Plate #6-250 (2) #6-250 #6-250 27-5/16 14 8-1/4
**1005656 200 200 N/A Hub Cover Plate #6-250 #6-250 #6-250 27-5/16 14 8-1/4

Meter Socket Generator Transfer Switches | Self Contained | 4 Jaw | 200 & 320 Ampere | HQ Lever Bypass | Single Phase | Ringless Style | 600 VAC

  • Switches are double pole/double throw with center off position.
  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate.
  • G-90 galvanized steel.
  • NEMA 3-R enclosures.
  • Field Installable 50 Amp
    Twist Lock Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number #Jaws Meter Form Main Rating Amps Auxil. Rating Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"

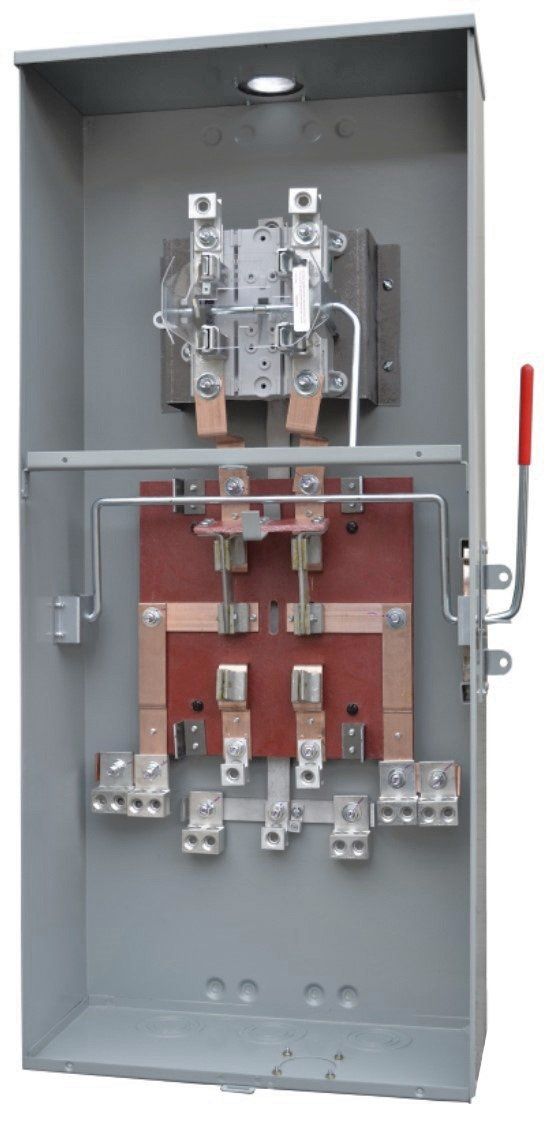

SSV211DT-B 4 2S 200 200 - HO (SM) #6-350 (4) #6-250 #6-250 40-1/2 17-15/16 8-15/64
SSV211DT-C 4 2S 200 200 - HCP (SM) #6-350 (4) #6-250 #6-250 40-1/2 17-15/16 8-15/64
SSV211DT-N 4 2S 200 200 - 2" Hub #6-350 (4) #6-250 #6-250 40-1/2 17-15/16 8-15/64
SSV211DT-P 4 2S 200 200 - 2-1/2" Hub #6-350 (4) #6-250 #6-250 40-1/2 17-15/16 8-15/64
SSV211DTR-C 4 2S 200 200 X HCP (SM) #6-350 (4) #6-250 50 Amp Rec. 40-1/2 17-15/16 8-15/64
SSV211DTR-N 4 2S 200 200 X 2" Hub #6-350 (4) #6-250 50 Amp Rec. 40-1/2 17-15/16 8-15/64
SSV310DT-Q 4 2S 320 320 - 3" Hub (2) #6-350 (4) #6-350 (2) #6-350 55-1/4 19-7/8 11-15/64
SSV310DT-R 4 2S 320 320 - 3-1/2" Hub (2) #6-350 (4) #6-350 (2) #6-350 55-1/4 19-7/8 11-15/64
SSV310DT-T 4 2S 320 320 - HO (LG) (2) #6-350 (4) #6-350 (2) #6-350 55-1/4 19-7/8 11-15/64
SSV310DT-U 4 2S 320 320 - HCP (LG) (2) #6-350 (4) #6-350 (2) #6-350 55-1/4 19-7/8 11-15/64
SSV310DTR-T 4 2S 320 320 X HO (LG) (2) #6-350 (4) #6-350 50 Amp Rec. 55-1/4 19-7/8 11-15/64
SSV310DTR-U 4 2S 320 320 X HCP (LG) (2) #6-350 (4) #6-350 50 Amp Rec. 55-1/4 19-7/8 11-15/64
Generator Transfer Switches W/O Metering Provisions

Generator Transfer Switches | Self Contained | 100 & 200 Ampere | Single Phase | W/O Meter Socket | 600 VAC

  • Switches are double pole/double throw with center off position.
  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • *110 units have removable bolted cover plate for receptacle on the bottom left side.
  • **Does not have provisions for twist lock 50 Amp receptacle.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate except for the noted units.
  • G-90 galvanized steel.
  • NEMA 3-R enclosures.
  • Field Installable 50 Amp
    Twist Lock Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number Main Rating Amps Auxil. Rating Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"
SV410DT-Q 400 400 - 3" Hub (2) #6-350 (4) #6-350 (2) #6-350 44 19-7/8 11-1/4

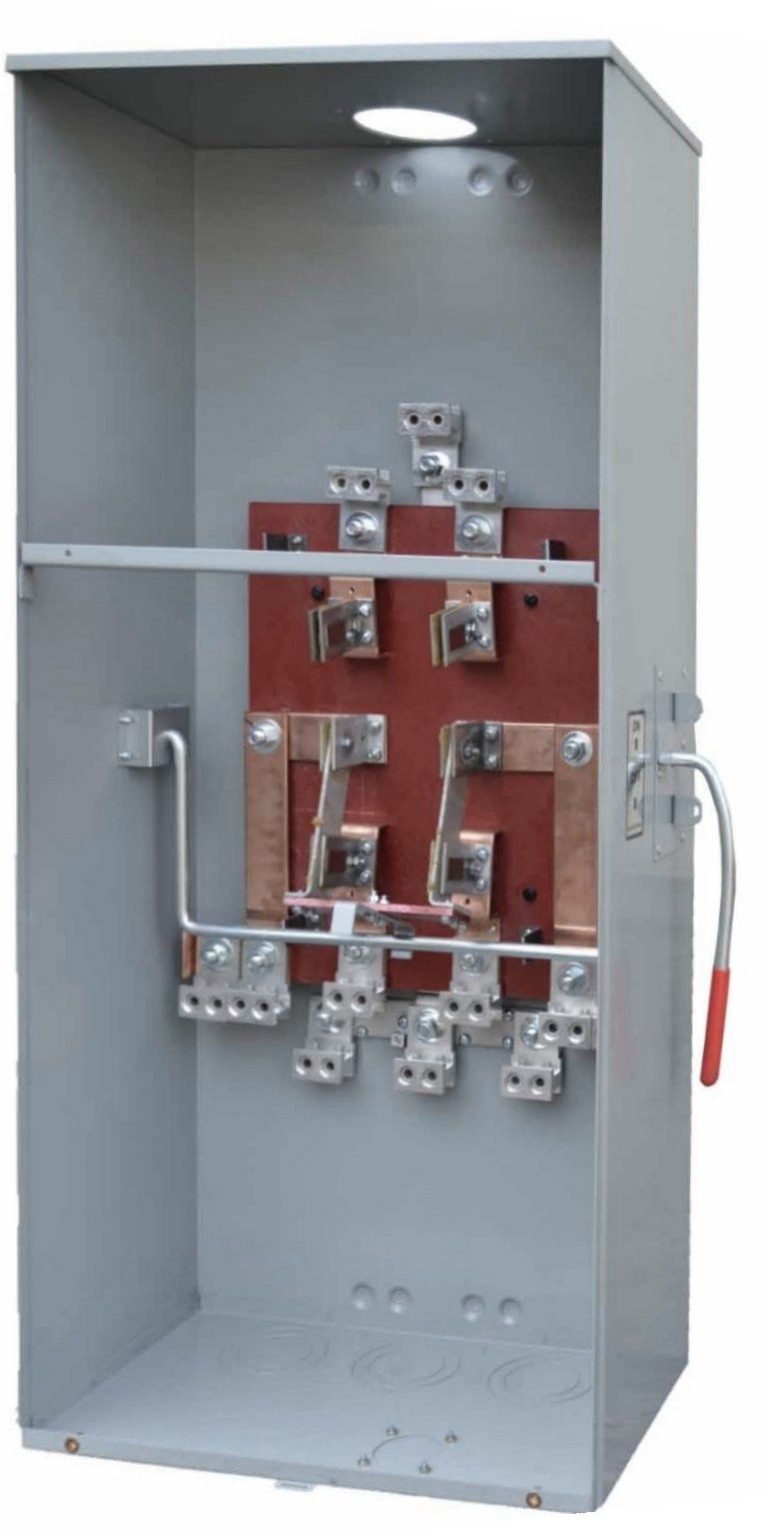

SV410DT-T 400 400 - HO (LG) (2) #6-350 (4) #6-350 (2) #6-350 44 19-7/8 11-1/4
SV410DT-U 400 400 - HCP (LG) (2) #6-350 (4) #6-350 (2) #6-350 44 19-7/8 11-1/4
*1010018 400 400 - HO (LG) (2) #6-350 2/0-300 (2) #6-250 51-3/4 19-7/8 11-1/4
**SV610DT-QQ 600 600 - (2) 3" Hubs (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-R 600 600 N/A 3-1/2" Hub (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-S 600 600 N/A 4" Hub (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-T 600 600 N/A HO (LG) (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-U 600 600 N/A HCP (LG) (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV810DT-TT 800 800 N/A (2) HO (LG) (3) #4-500 (3) #4-500 (2) #6-350 51-5/16 28 11-39/64

Generator Transfer Switches | Self Contained | 400, 600 & 800 Ampere | Single Phase | W/O Meter Socket | 600 VAC

  • Switches are double pole/double throw with center off position.
  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors. (**Not available for 610 or 810 units).
  • *1010018 has (2) 200 Amp 2-pole load breakers and provisions for (4) position breakers.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate except for the 610 & 810 units.
  • G-90 galvanized steel.
  • NEMA 3-R enclosures.
  • Field Installable 50 Amp
    Twist Lock Receptacles.
    Male Receptacle: ARP00176
    Female Receptacle: ARP00177
Knockout Configuation
Catalog Number Main Rating Amps Auxil. Rating Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"
SV410DT-Q 400 400 - 3" Hub (2) #6-350 (4) #6-350 (2) #6-350 44 19-7/8 11-1/4
SV410DT-T 400 400 - HO (LG) (2) #6-350 (4) #6-350 (2) #6-350 44 19-7/8 11-1/4
SV410DT-U 400 400 - HCP (LG) (2) #6-350 (4) #6-350 (2) #6-350 44 19-7/8 11-1/4
*1010018 400 400 - HO (LG) (2) #6-350 2/0-300 (2) #6-250 51-3/4 19-7/8 11-1/4
**SV610DT-QQ 600 600 - (2) 3" Hubs (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-R 600 600 N/A 3-1/2" Hub (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-S 600 600 N/A 4" Hub (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-T 600 600 N/A HO (LG) (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV610DT-U 600 600 N/A HCP (LG) (2) #4-500 (1) #4-500 (2) #4-500 56-1/2 23 15-11/64
(3) #6-350
**SV810DT-TT 800 800 N/A (2) HO (LG) (3) #4-500 (3) #4-500 (2) #6-350 51-5/16 28 11-39/64
Catalog Number Main Rating Amps Auxil. Rating Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"
ASV410DT-T 400 400 - HO (LG) (2) #6-350 (4) #6-350 (2) #6-350 44-1/4 19-7/8 11-1/4

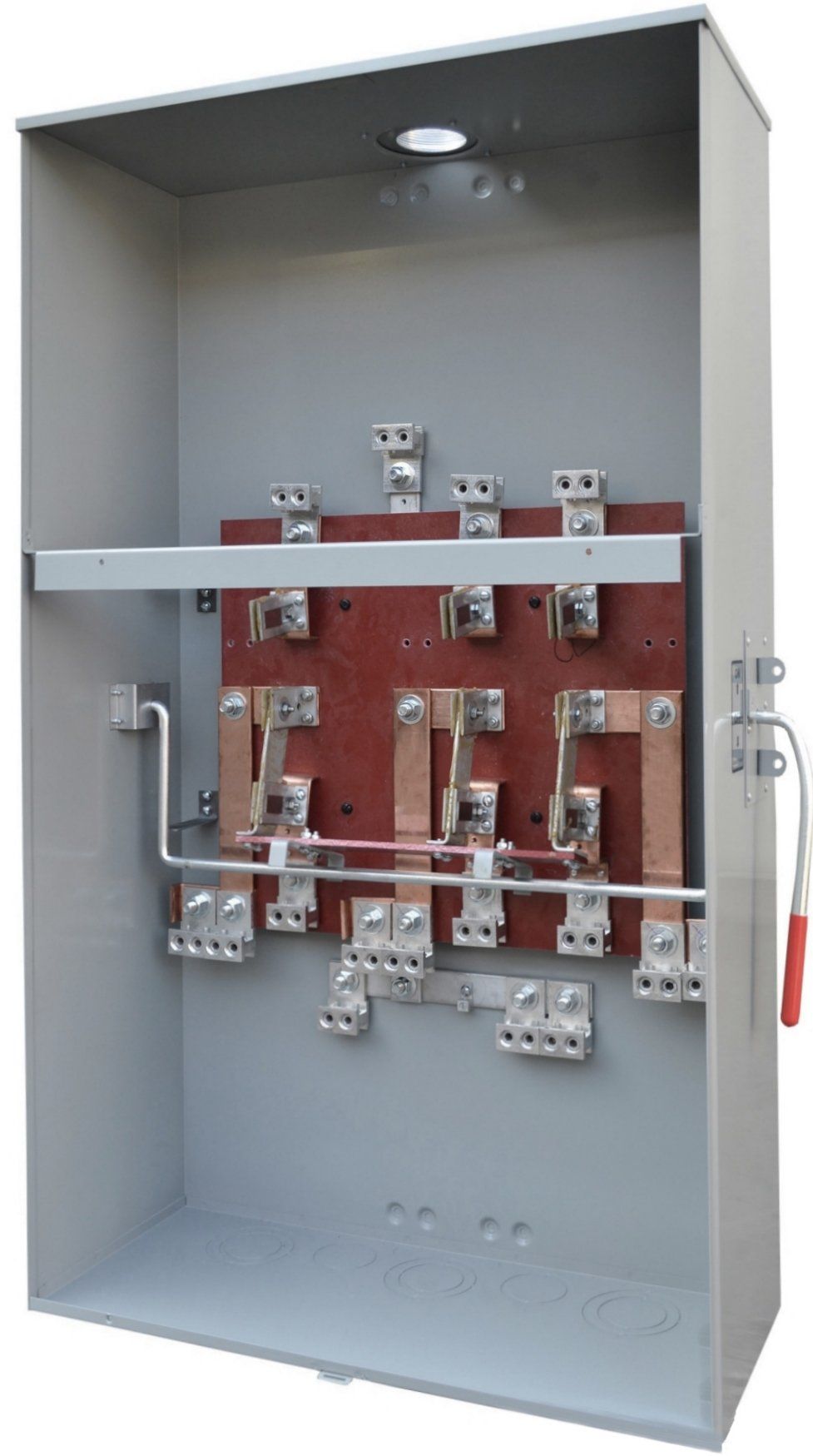

Generator Transfer Switches | Self Contained | 100, 200, 400 & 600 Ampere | Three Phase | W/O Metering Provisions | 600 VAC

  • Switches are double pole/double throw with center off position.
  • Add suffix “R” to catalog number for 50 Amp locking-type male receptacle installed & prewired to auxiliary connectors.
  • (Not Available for 413 or 613 units.
  • *Does not have provisions for twist lock receptacle.
  • Units with male receptacles are limited to 50 Amps (12KW) auxiliary input.
  • Units shipped without receptacles have a removable bolted cover plate except for the 413 & 613 units.
  • G-90 galvanized steel, NEMA 3R enclosures.
Knockout Configuation
Catalog Number Main Rating Amps Auxil. Rating Amps With 50 Amp Receptacle Hub Wire CU-AL Line Wire CU-AL Load Auxilary Connectors Dimension H" Dimension W" Dimension D"
SV113DT-B 100 100 - HO #14-1/0 (4) #14-1/0 #14-1/0 25 23 8-31/64
SV113DT-C 100 100 - HCP #14-1/0 (4) #14-1/0 #14-1/0 25 23 8-31/64
SV113DT-N 100 100 - 2" Hub #14-1/0 (4) #14-1/0 #14-1/0 25 23 8-31/64
SV213DT-Q 200 200 - 3" Hub #6-250 (4) #6-250 #6-250 36-3/4 23 8-31/64
SV213DT-T 200 200 - HO (LG) #6-250 (4) #6-250 #6-250 36-3/4 23 8-31/64
SV213DT-U 200 200 - HCP (LG) #6-250 (4) #6-250 #6-250 36-3/4 23 8-31/64
SV213DT-V 200 200 - 2-1/2" Hub #6-250 (4) #6-250 #6-250 36-3/4 23 8-31/64
*SV413DT-Q 400 400 N/A 3" Hub (2) #6-350 (4) #6-350 (2) #6-350 48 28 11-3/4
*SV413DT-R 400 400 N/A 3-1/2 " Hub (2) #6-350 (4) #6-350 (2) #6-350 48 28 11-3/4
*SV413DT-T 400 400 N/A HO (LG) (2) #6-350 (4) #6-350 (2) #6-350 48 28 11-3/4
*SV413DT-U 400 400 N/A HCP (LG) (2) #6-350 (4) #6-350 (2) #6-350 48 28 11-3/4
*SV613DT-TT 600 600 N/A (2) HO (LG) (2) #4-500 (1) #4-500 / (3) #6-350 (2) #4-500 56-1/2 33-1/2 15-1/4
*SV613DT-UU 600 600 N/A (2) HCP (LG) (2) #4-500 (1) #4-500 / (3) #6-350 (2) #4-500 56-1/2 33-1/2 15-1/4
Meter Pedestals | Socket Breaker Combos

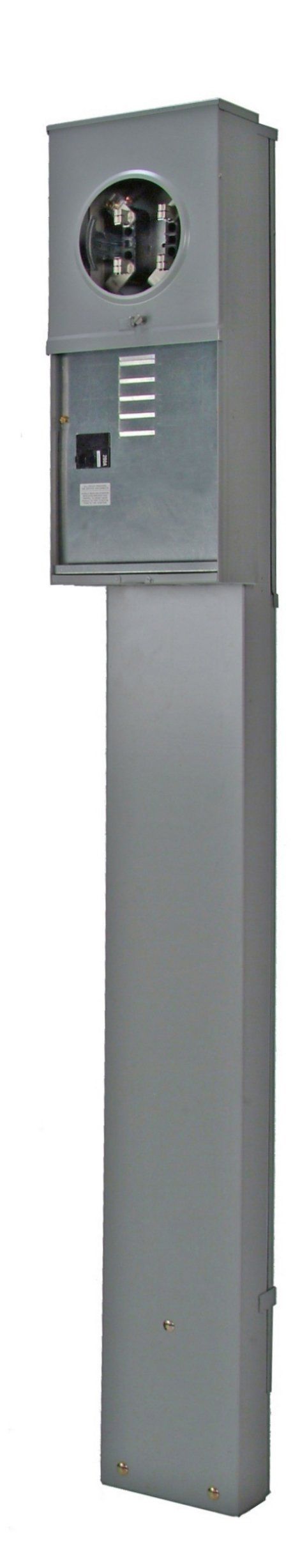

Meter Pedestals | 4 Jaw | 200 Ampere | Ringless | Direct Burial | 600 VAC

  • **Units with provisions for 2-pole main plug-in breaker will accept Siemens QN2200R or Cutler-Hammer WBJ2200 breakers.
  • *Units with provisions for additional 2-pole plug-in breakers will accept Square-D Type: Hom, Eaton Type: BR, Siemens Type: QP, GE Type: THQL breakers.
  • *Additional breaker spaces are connected in a parallel circuit with the main breaker.
  • All pedestals have removable bottom covers to allow lay-in wiring.
  • • G-90 galvanized steel.
  • • NEMA 3R enclosures.
  • • Units are painted gray.
Knockout Configuation
Catalog Number Number Positions Plug-In Breaker Installed Provisions For Additional Plug-In Breakers Maximum Amperage Height Width Depth Wire CU-AL Line Wire CU-AL Subfeed Grade Line From Bottom Of Stabilizer Foot
P7911S262W1 1 2 Pole 200 Amp * (2) 2-Pole 200 79 9 4 (2) #6-350 #6-250 24"
P7922S262W1 2 2 Pole 200 Amp * (2) 2-Pole 200 79 9 5-3/4 (2) #6-350 #6-250 24"
P7911S260W1 1 ** Provisions For 2 Pole * (2) 2-Pole 200 79 9 4 (2) #6-350 #6-250 24"
P7922S260W1 2 ** Provisions For 2 Pole * (2) 2-Pole 200 79 9 5-3/4 (2) #6-350 #6-250 24"
Accessories

ARP00039

125 Amp

2/0

Socket Block Assembly One Side With Caps

ARP00354

150 Amp

250 MCM

Socket Block Assembly One Side With Caps

ARP00048

200 Amp

250 & 350 MCM

Socket Block Assembly One Side With Caps

ARP00351

125 Amp

2/0

Horn Bypass

Socket Block Assembly One Side
