Secondary Connection Pedestals
URD
URD Single & Three Phase | 600 VAC
- Note: To convert 1000341 to direct burial order ground sleeve catalog #1000366.
- Powder TGIC Polyester Paint Finish, Munsell 7GY 3.29/1.5 Green.
- G-90 galvanized steel, NEMA 3R enclosures.

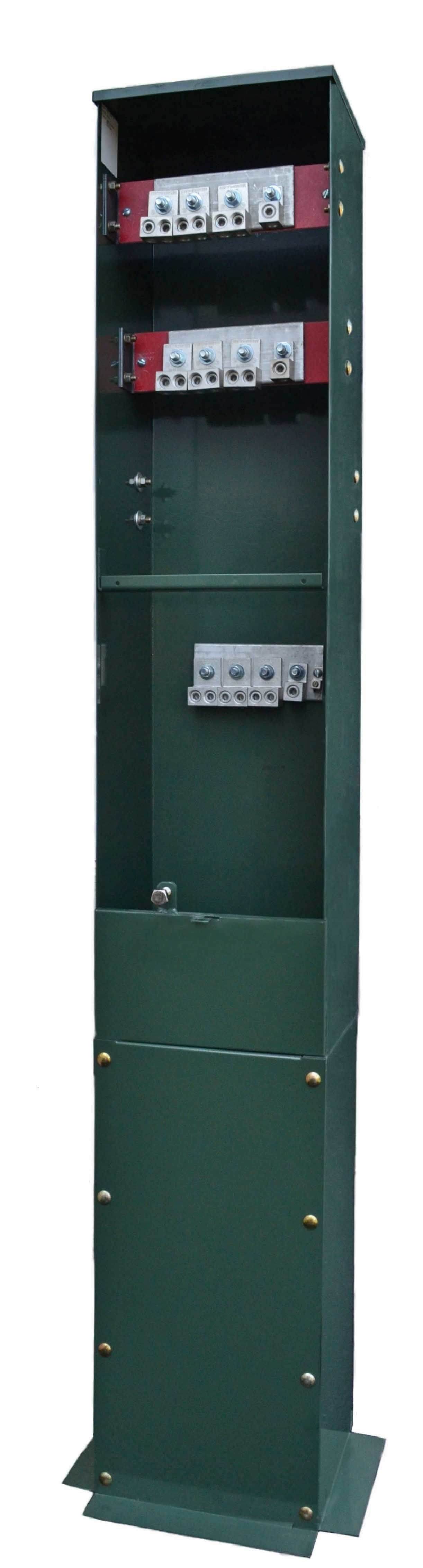

| Phase | Catalog Number | Line, Load & Neutral Connectors | Height | Width | Depth |
|---|---|---|---|---|---|
| 1 | 1000341 | (21)#6-250 MCM | 46 | 11-1/2 | 9 |
| 1 | 1004145 | (21) #6-250 MCM CU-AL | 60 | 10 | 6 |
| 1 | 1002135 | (21) #6-250 MCM CU-AL | 70 | 11-1/2 | 9 |
| 3 | 1002681 | (28) #6-250 MCM CU-AL | 60 | 10 | 6 |

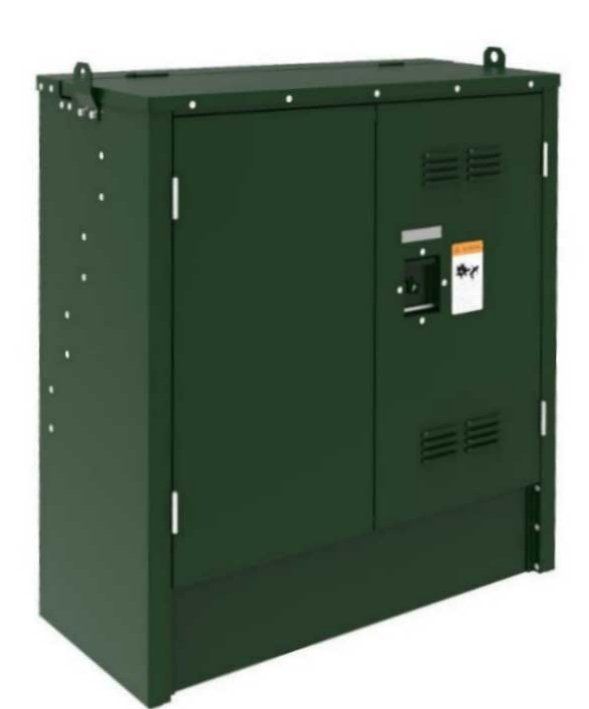

Pad Mount High Amperage Termination Cabinets - CE Series
1000, 2000, 3000, 4000 & 5000 Ampere | URD Three Phase | 4 Wire | 600 VAC
Standard:
- 1000 through 5000 Ampere - *UL Listed (3000 Through 5000 Ampere).
- Conforms To IEEE C57.12.28 Enclosure Integrity.
- Copper or Aluminum Bus Bars - Standard NEMA Hole Pattern - Aluminum 1/4” X 5-1/2” - Copper 1/4” X 4”.
- 85,000 SCCR.
- #4-600MCM CU-AL Equipment Ground Connector.
- NEMA 3R Enclosures.
- Powder TGIC Polyester Paint Finish, Munsell 7GY 3.29/1.5 Green.
- 12 Ga. G-90 Galvanized Steel.
- Ventilation to Minimize Condensation.
- Removable Lift Provisions.
- Cautionary Exterior and Interior Labels.
- Special Paint Color
- Stainless Steel Enclosure, IEEE C57.12.29
- Anti-Condensation Compound
- Ground Sleeve
- Lug and Hardware Kits
